Summary of Contents for SHOWTEC Compact Par 7/15 Q4

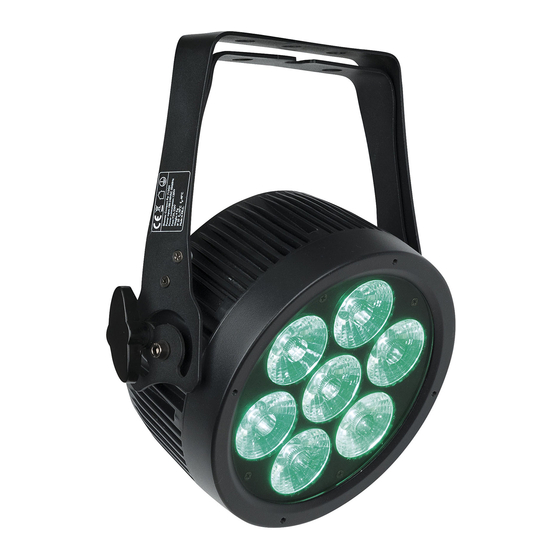

- Page 1 MANUAL ENGLISH Compact Par 7/15 Q4 Ordercode: 42599 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Compact Par 7/15 Q4 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Front ....................................7 Backside .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Compact Par 7/15 Q4 ● ProPower cable (1,4 m) ●... - Page 4 ● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Compact Par 7/15 Q4 ● The user is responsible for correct positioning and operating of the Compact Par 7/15 Q4. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. ● This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. -
Page 6: Connection With The Mains
Compact Par 7/15 Q4 The Compact Par 7/15 Q4 can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 7: Return Procedure
Compact Par 7/15 Q4 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device
Compact Par 7/15 Q4 Description of the device Features The Compact Par 7/15 Q4 is a compact parcan with high output and great effects. ● Double bracket ● Input voltage: 100-240V AC, 50/60Hz ● Drive Current: 350mA/color ● Refresh rate: 1,2 kHz ●... -
Page 9: Backside
12) Safety eye Installation Remove all packing materials from the Compact Par 7/15 Q4. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Control Modes
Compact Par 7/15 Q4 Control Modes There are 5 modes: • Auto Program • Static Color (manual) • Sound-controlled • Master/slave • DMX-512 (4CH, 6CH or 10CH) One Compact Par (Auto Program and Static Color) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. -
Page 11: Multiple Compact Pars (Dmx Control)
Compact Par 7/15 Q4 Multiple Compact Pars (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Compact Pars and other devices. -
Page 12: Fixture Linking
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m). • DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30. The Compact Par 7/15 Q4 can be operated with a controller in control mode or without the controller in stand-alone mode. Ordercode: 42599... -
Page 13: Control Panel
Compact Par 7/15 Q4 Control Panel A) OLED display Menu button C) Up button D) Down button Enter button Fig. 05 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address, next time.) -
Page 14: Menu Overview
Compact Par 7/15 Q4 Menu Overview The Compact Par will show the following screens at start-up ! First screen Second screen (last operation mode) Ordercode: 42599... -
Page 15: Main Menu Options
Compact Par 7/15 Q4 Main Menu Options Auto Program Static Color Sound-controlled Dimming Mode Backlight Info DMX address DMX configuration Master-Slave Calibration Reset mode 1. Auto Program With this menu you can choose a built-in auto program. 01) Press the Menu button until the display shows 02) Press the Enter button to open the menu. -
Page 16: Sound-Controlled
Compact Par 7/15 Q4 04) If you have chosen , press the Enter button to open the submenu. 05) Press the Up and Down buttons to choose between the 15 built-in colors. 06) If you have chosen , press the Enter button to open the submenu. -
Page 17: Info
Compact Par 7/15 Q4 6. Info With this menu you can test the device and see information about the device. 01) Press the Menu button until the display shows 02) Press the Enter button to open the menu. 03) Press the Up and Down buttons to choose between the 4 options: 04) If you have chosen , press the Enter button. -
Page 18: Reset Mode
Compact Par 7/15 Q4 10. Reset mode With this menu you can reset the device to default settings. 01) Press the Menu button until the display shows 02) Press the Enter button to open the menu. 03) Press the Up and Down buttons to choose between 04) If you have chosen , press the Enter button. -
Page 19: Channels
Compact Par 7/15 Q4 10 channels Channel 1 – Master Dimmer intensity 0-255 Gradual adjustment, f rom dark to brightest 0-100% Channel 2 – Red Dimmer intensity (CH1 must be set between 1-255 0-255 Gradual adjustment Red from 0 – 100% Channel 3 –... -
Page 20: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Compact Par 7/15 Q4 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. - Page 21 Compact Par 7/15 Q4 Problem Probable cause(s) Solution No power to the fixture • Check if power is switched on and One or more cables are plugged in fixtures do not function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.
-
Page 22: Product Specifications
Compact Par 7/15 Q4 Product Specifications Model: Showtec Compact Par 7 Q4 Input Voltage: 100-240V AC, 50/60Hz Power consumption: 95W (full output) Drive Current: 350mA/color Refresh rate 1,2 kHz DMX linking: 30 pcs Power linking @110V 10pcs Power linking @240V... -
Page 23: Dimensions
Compact Par 7/15 Q4 Dimensions Ordercode: 42599... - Page 24 ©2017 Showtec...
