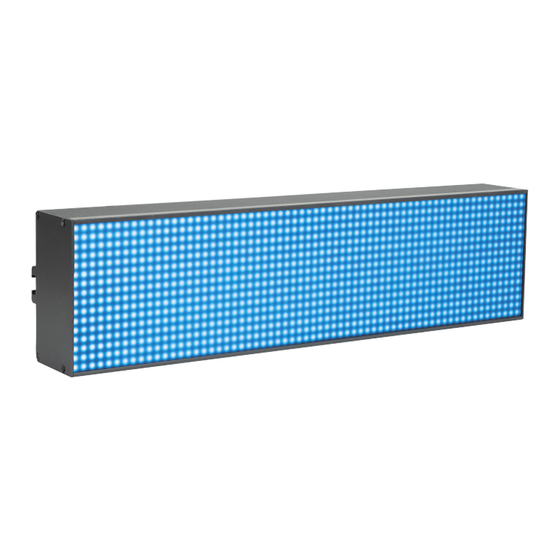

- Page 1 USER MANUAL ENGLISH Pixel Panel 1024 Product code: 44560 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Pixel Panel 1024 Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Pixel Panel 1024 Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 LEDs Lifespan ............................... 4 Text Conventions ..............................5 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................6 Safety .................................. - Page 4 Pixel Panel 1024 Set Net Mask ............................29 Control Modes ............................30 DMX ...............................30 Art-Net ..............................31 Kling-Net ...............................31 Master/Slave ............................32 Auto Mode ............................32 Manual Mode .............................33 Advanced Settings .............................34 Signal Hold ............................34 Pixel Reverse ............................34 Screen Timeout ...........................35 Screen Brightness..........................35 Software Version ..........................35 Invert Display ............................35...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Pixel Panel 1024 ● Powercon power cable (1,5 m) ● User manual Fig. 01 Intended Use This device is intended for professional use as an indoor Pixel panel matrix. -
Page 6: Text Conventions
Pixel Panel 1024 Text Conventions Throughout the user manual the following text conventions are used: ● Buttons: All buttons are in bold lettering, for example “Press the UP/DOWN buttons” ● References: References to chapters and parts of the device are in bold lettering, for example: “Refer to 2. -
Page 7: Symbols On The Information Label
Pixel Panel 1024 Symbols on the Information Label This product is provided with an information label. The information label is located on the backside of the device. The information label contains the following symbols: This device shall not be treated as household waste. -
Page 8: Safety
Pixel Panel 1024 Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 9 Pixel Panel 1024 WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.
-
Page 10: Requirements For The User
Pixel Panel 1024 ● The safety devices are not damaged. ● There are no deformations on housings, fixations and installation points. ● The power cables are not damaged and do not show any material fatigue. Attention Do not expose the device to conditions that exceed the rated IP class conditions. -
Page 11: Description Of The Device
It comes with an alignment plate, flexible rigging system and removable black frosted cover. This enables you to easily align multiple Pixel Panels in a row. The Pixel Panel 1024 is controllable by DMX, Master/Slave, Art-Net and Kling-Net, but can also be used as a stand-alone fixture with built-in programs. -
Page 12: Product Specifications
Pixel Panel 1024 Product Specifications Model: Pixel Panel 1024 Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 53 W Fuse T2,5A/250V Physical: Dimensions: 516 x 85 x 136 mm (LxWxH) excluding brackets Weight: 2,82 kg Optics: Dimmer: 0–100 % Strobe: 0–25 Hz... -
Page 13: Dimensions
Pixel Panel 1024 Dimensions Fig. 03 Product code: 44560... -
Page 14: Installation
Pixel Panel 1024 Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. -
Page 15: Rigging
Pixel Panel 1024 Rigging The device can be mounted to a truss or other rigging structure in any orientation. Make sure that all loads are within the pre-determined limits of the supporting structure. The device is delivered with 1 mounting bracket. -
Page 16: Connecting To Power Supply
Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: ● at 100–120 V: 12 devices Pixel Panel 1024 ● at 200–240 V: 24 devices Pixel Panel 1024 Product code: 44560... -
Page 17: Setup
Pixel Panel 1024 Setup Warnings and Precautions Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Pixel Panel is not connected to a controller or to other devices, it functions as a stand-alone device. -
Page 18: Dmx Cables
Fig. 05. Fig. 05 Master/Slave Setup The Pixel Panel 1024 supports master/slave control mode. To connect multiple devices in master/slave setup, follow the steps below: 01) Connect the first device’s DMX OUT connector to the second device’s DMX IN connector. -
Page 19: Dmx Linking
04) Continue assigning the starting addresses of the remaining devices by adding each time 8 to the previous number. Make sure that you do not have any overlapping channels in order to control each Pixel Panel 1024 correctly. If two or more devices are addressed similarly, they will work similarly. -
Page 20: Ethernet Connection
Pixel Panel 1024 Ethernet Connection Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. Art-Net and Kling-Net Protocols Art-Net is a protocol that uses TCP/IP to transfer large amount of DMX-512 data over an Ethernet network. -
Page 21: Art-Net/Kling-Net Setup
Pixel Panel 1024 Art-Net/Kling-Net Setup The Pixel Panel 1024 has 2 RJ45 connectors. Either connector can be used as an input and as throughput. To connect multiple devices in an Art-Net/Kling-Net setup, follow the steps below: Use a CAT-5/CAT-5E/CAT-6 cable to connect the RJ45 connector of the computer/lighting controller to one of the RJ45 connectors of the first device. -
Page 22: Art-Net Settings
Pixel Panel 1024 Art-Net Settings To run your device using Art-Net protocol: Configure the network address of your computer/lighting controller in the correct range (IP 2.x.x.x, 10.x.x.x or 192.168.x.x and Subnet 255.0.0.0). To change the IP address of the device, refer to 6.6.2.1. -
Page 23: Universe Numbering
(0–15) 32766 32767 Make sure that you do not have any overlapping channels in order to control each Pixel Panel 1024 correctly. If two or more devices are addressed similarly, they will work similarly. Note: If you are using an Art-Net controller that supports Art-Net I or Art-Net II, the Art-Net net must be set to 0. -
Page 24: Connecting To A Network
Pixel Panel 1024 Connecting to a Network KlingNet settings 01) Install any KlingNet-based software on your PC (Windows or Mac), for example 50180 - Arkaos LED 02) Connect the Pixel Panel. 03) Connect the power supply to the Pixel Panel. -
Page 25: Software For Controlling
Pixel Panel 1024 Software for controlling In combination with Arkaos or DMT Software, you are able to play videos over the Pixel Panel (pixelmapping). You only have to connect all the Pixel Panels and run your software. 50180 - Arkaos LED Master An all-in-one solution to run LED light shows for everyone. -
Page 26: Operation
Pixel Panel 1024 Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is intended for professional use as an indoor Pixel panel matrix. It is not suitable for households and for general lighting. -
Page 27: Control Panel
Pixel Panel 1024 Control Panel A) OLED display UP button C) DOWN button D) ENTER button MENU button Fig. 10 ● Use the MENU button to exit the current submenu, to return to the main menu and to return to the start screen. -
Page 28: Menu Overview
Pixel Panel 1024 Menu Overview Product code: 44560... -
Page 29: Main Menu Options
Pixel Panel 1024 Main Menu Options The main menu has the following options: DMX address Network Settings DMX / Art-Net / Kling-Net / Slave / Auto / Manual Signal Hold / Pixel Reverse / Screen Timeout / Screen Brightness / Software Version / Invert Display / Factory Reset 01) Press the UP/DOWN buttons to navigate through the main menu. -
Page 30: Network Settings
Pixel Panel 1024 Network Settings With this menu you can set the network settings. 01) While in main menu, press the UP/DOWN buttons to select 02) Press the ENTER button to confirm. The display will show: Set Manual/DHCP 01) Press the UP/DOWN buttons to select MANUAL/DHCP. -
Page 31: Control Modes
Pixel Panel 1024 Control Modes 01) While in main menu, press the UP/DOWN buttons to select 02) Press the ENTER button to open the menu. The display will show: 03) Press the UP/DOWN buttons to select one of the 6 modes: ●... -
Page 32: Art-Net
Pixel Panel 1024 Art-Net In this menu you can set the Art-Net settings. 01) When the display shows ARTNET, press the ENTER button to open the menu. The display will show: 02) Press the UP/DOWN buttons to select UNIVERSE and press the ENTER button to confirm. -
Page 33: Master/Slave
Pixel Panel 1024 Master/Slave In this menu you can set the device as a slave. 01) When the display shows SLAVE, press the ENTER button to open the menu. The display will show: 02) Press the UP/DOWN buttons to select ENABLE or DISABLE. If you choose ENABLE, the device will react the same as the master device. -
Page 34: Manual Mode
Pixel Panel 1024 Manual Mode In this menu you can run the Manual mode. 01) When the display shows MANUAL, press the ENTER button to open the menu. The display will show: 02) Press the UP/DOWN buttons to select one of the 5 options: ●... -
Page 35: Advanced Settings
Pixel Panel 1024 Advanced Settings 01) While in main menu, press the UP/DOWN buttons to select 02) Press the ENTER button to open the menu. The display will show: 03) Press the UP/DOWN buttons to select one of the 7 modes: ●... -
Page 36: Screen Timeout
Pixel Panel 1024 Screen Timeout In this menu you can set the amount of time after which the display will turn off, when no button is pressed. 01) Press the UP/DOWN buttons to select one of the 3 options: 30 seconds/60 seconds/NEVER. -
Page 37: Dmx Channels
Pixel Panel 1024 DMX Channels 8 Channels 8 CH Function Value Setting Master Dimmer 000–255 From low to high intensity (0–100 %) 000–004 Not functional Strobe 005–255 From low to high frequency 000–255 From low to high intensity (0–100 %) Green 000–255... -
Page 38: 3072 Channels
Pixel Panel 1024 3072 Channels Note: In 3072-channel mode, the numbers of LEDs progress vertically. See below: There are 8 rows, each row containing 128 pixels divided into 2 horizontal sections (64 pixels each). There is a total of 8 rows x 128 pixels = 1024 pixel possibilities subdivided into 3 colors (Red, Green, Blue), resulting in a total of 3072 different colored pixels. -
Page 39: Troubleshooting
Pixel Panel 1024 Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 40: Maintenance
Pixel Panel 1024 Maintenance Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. -
Page 41: Corrective Maintenance
Pixel Panel 1024 Corrective Maintenance The device does not contain user-serviceable parts. Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information. -
Page 42: Deinstallation, Transportation And Storage
Pixel Panel 1024 Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device. - Page 43 Pixel Panel 1024 Product code: 44560...
- Page 44 ©2022 Showtec...
