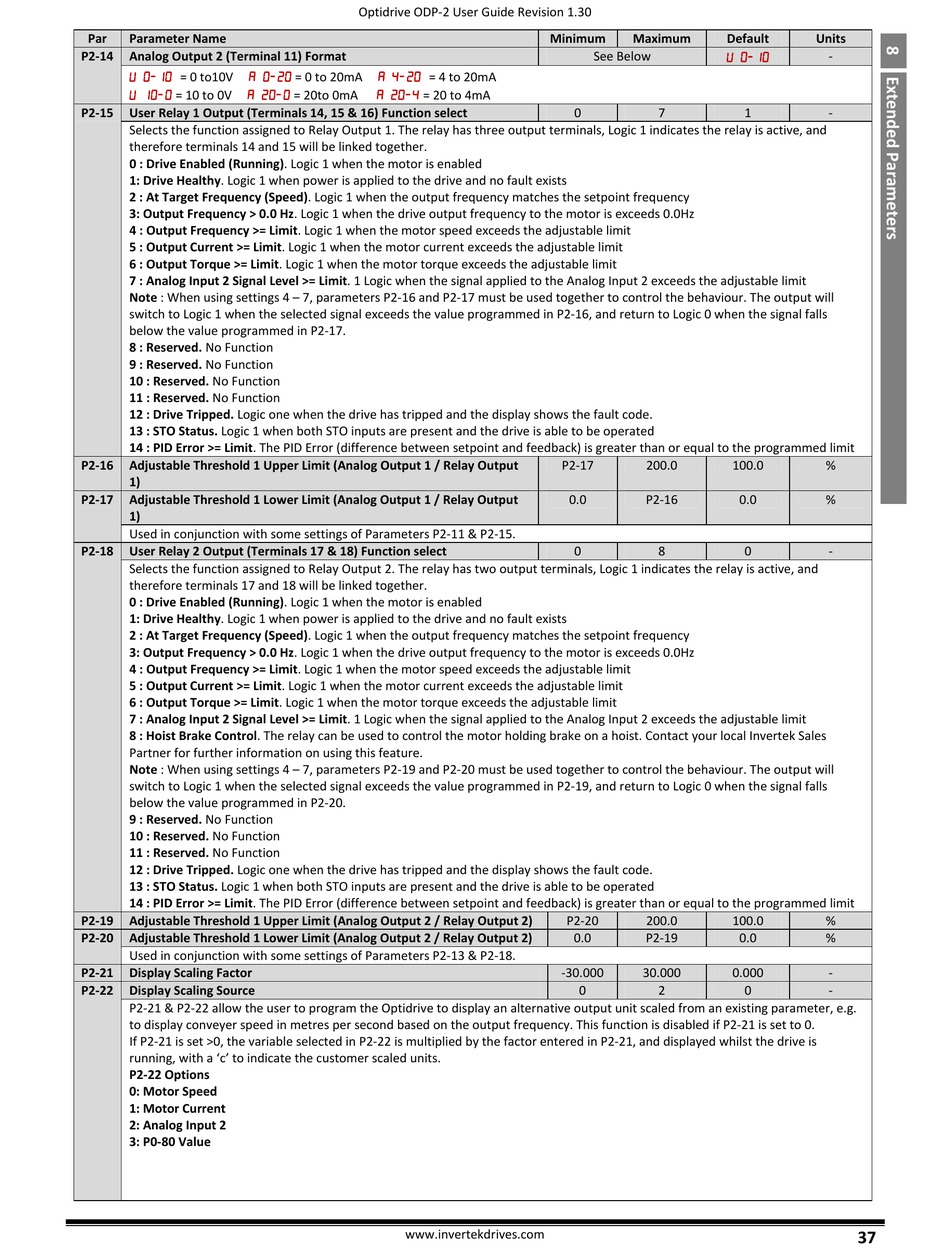

Invertek Drives OPTIDRIVE P2 Series Easy Start Up Manual page 37

Par Parameter Name
P2‐14 Analog Output 2 (Terminal 11) Format
U 0-10 = 0 to10V A 0-20 = 0 to 20mA A 4-20
U 10-0 = 10 to 0V A 20-0 = 20to 0mA A
P2‐15 User Relay 1 Output (Terminals 14, 15 & 16) Function select
Selects the function assigned to Relay Output 1. The relay has three output terminals, Logic 1 indicates the relay is active, and
therefore terminals 14 and 15 will be linked together.
0 : Drive Enabled (Running). Logic 1 when the motor is enabled
1: Drive Healthy. Logic 1 when power is applied to the drive and no fault exists
2 : At Target Frequency (Speed). Logic 1 when the output frequency matches the setpoint frequency
3: Output Frequency > 0.0 Hz. Logic 1 when the drive output frequency to the motor is exceeds 0.0Hz
4 : Output Frequency >= Limit. Logic 1 when the motor speed exceeds the adjustable limit
5 : Output Current >= Limit. Logic 1 when the motor current exceeds the adjustable limit
6 : Output Torque >= Limit. Logic 1 when the motor torque exceeds the adjustable limit
7 : Analog Input 2 Signal Level >= Limit. 1 Logic when the signal applied to the Analog Input 2 exceeds the adjustable limit
Note : When using settings 4 – 7, parameters P2‐16 and P2‐17 must be used together to control the behaviour. The output will
switch to Logic 1 when the selected signal exceeds the value programmed in P2‐16, and return to Logic 0 when the signal falls
below the value programmed in P2‐17.
8 : Reserved. No Function
9 : Reserved. No Function
10 : Reserved. No Function
11 : Reserved. No Function
12 : Drive Tripped. Logic one when the drive has tripped and the display shows the fault code.
13 : STO Status. Logic 1 when both STO inputs are present and the drive is able to be operated
14 : PID Error >= Limit. The PID Error (difference between setpoint and feedback) is greater than or equal to the programmed limit
P2‐16 Adjustable Threshold 1 Upper Limit (Analog Output 1 / Relay Output
1)
P2‐17 Adjustable Threshold 1 Lower Limit (Analog Output 1 / Relay Output
1)
Used in conjunction with some settings of Parameters P2‐11 & P2‐15.
P2‐18 User Relay 2 Output (Terminals 17 & 18) Function select
Selects the function assigned to Relay Output 2. The relay has two output terminals, Logic 1 indicates the relay is active, and
therefore terminals 17 and 18 will be linked together.
0 : Drive Enabled (Running). Logic 1 when the motor is enabled
1: Drive Healthy. Logic 1 when power is applied to the drive and no fault exists
2 : At Target Frequency (Speed). Logic 1 when the output frequency matches the setpoint frequency
3: Output Frequency > 0.0 Hz. Logic 1 when the drive output frequency to the motor is exceeds 0.0Hz
4 : Output Frequency >= Limit. Logic 1 when the motor speed exceeds the adjustable limit
5 : Output Current >= Limit. Logic 1 when the motor current exceeds the adjustable limit
6 : Output Torque >= Limit. Logic 1 when the motor torque exceeds the adjustable limit
7 : Analog Input 2 Signal Level >= Limit. 1 Logic when the signal applied to the Analog Input 2 exceeds the adjustable limit
8 : Hoist Brake Control. The relay can be used to control the motor holding brake on a hoist. Contact your local Invertek Sales
Partner for further information on using this feature.
Note : When using settings 4 – 7, parameters P2‐19 and P2‐20 must be used together to control the behaviour. The output will
switch to Logic 1 when the selected signal exceeds the value programmed in P2‐19, and return to Logic 0 when the signal falls
below the value programmed in P2‐20.
9 : Reserved. No Function
10 : Reserved. No Function
11 : Reserved. No Function
12 : Drive Tripped. Logic one when the drive has tripped and the display shows the fault code.
13 : STO Status. Logic 1 when both STO inputs are present and the drive is able to be operated
14 : PID Error >= Limit. The PID Error (difference between setpoint and feedback) is greater than or equal to the programmed limit
P2‐19 Adjustable Threshold 1 Upper Limit (Analog Output 2 / Relay Output 2)
P2‐20 Adjustable Threshold 1 Lower Limit (Analog Output 2 / Relay Output 2)
Used in conjunction with some settings of Parameters P2‐13 & P2‐18.
P2‐21 Display Scaling Factor
P2‐22 Display Scaling Source
P2‐21 & P2‐22 allow the user to program the Optidrive to display an alternative output unit scaled from an existing parameter, e.g.
to display conveyer speed in metres per second based on the output frequency. This function is disabled if P2‐21 is set to 0.
If P2‐21 is set >0, the variable selected in P2‐22 is multiplied by the factor entered in P2‐21, and displayed whilst the drive is
running, with a 'c' to indicate the customer scaled units.
P2‐22 Options
0: Motor Speed
1: Motor Current
2: Analog Input 2
3: P0‐80 Value
