Guidelines For Mounting (Ip55 Units); Guidelines For Mounting (Ip66 Units) - Invertek Drives OPTIDRIVE P2 Series Easy Start Up Manual

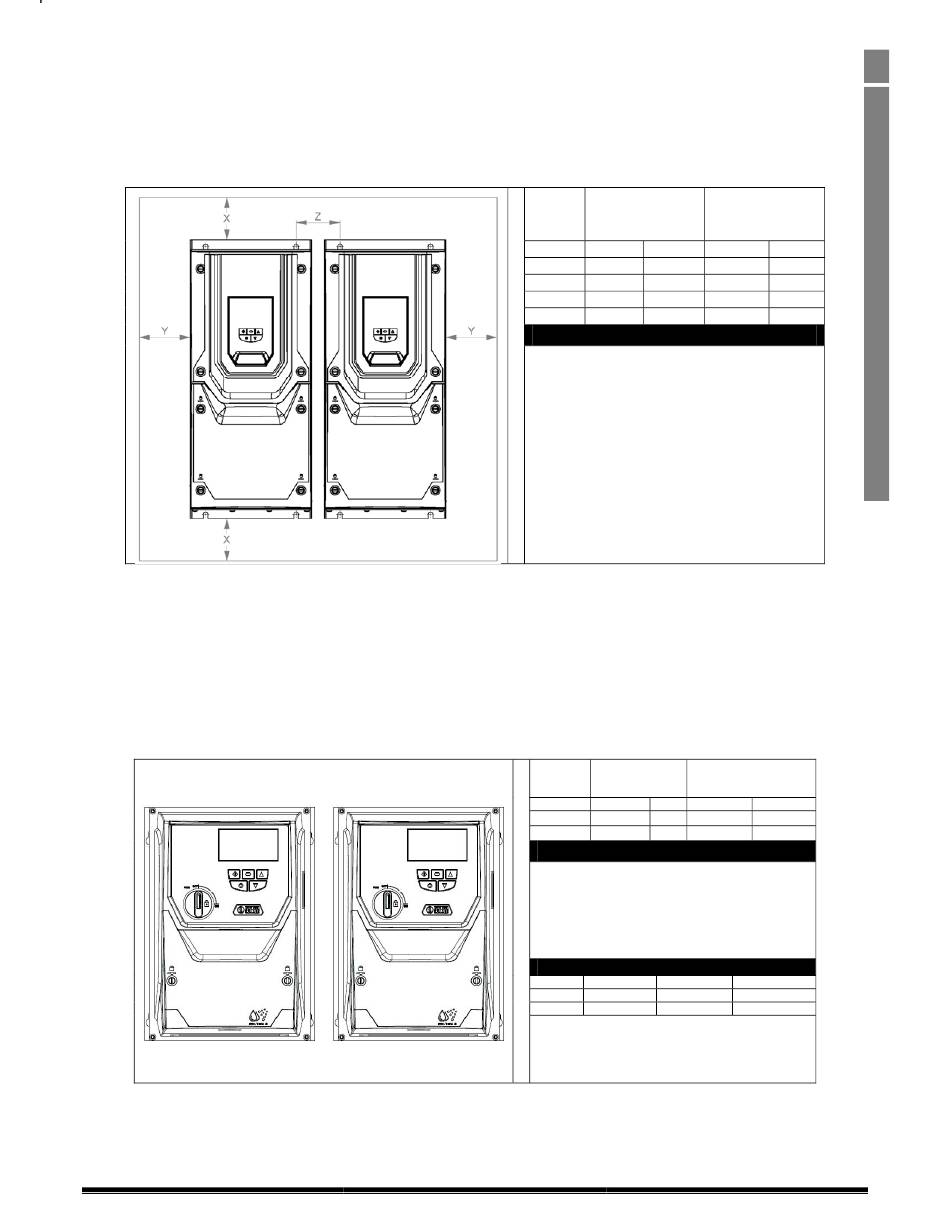

3.7. Guidelines for mounting (IP55 Units)
•
Before mounting the drive, ensure that the chosen location meets the environmental condition requirements for the drive shown in
section 10.1
•
The drive must be mounted vertically, on a suitable flat surface
•
The minimum mounting clearances as shown in the table below must be observed
•
The mounting site and chosen mountings should be sufficient to support the weight of the drives
•
IP55 units do not require mounting inside an electrical control cabinet; however they may be if desired.
•
Using the drive as a template, or the dimensions shown above, mark the locations required for drilling
•
Suitable cable glands to maintain the IP protection of the drive are required. Gland sizes should be selected based on the number and
size of the required connection cables. Drives are supplied with a plain, undrilled gland plate to allow the correct hole sizes to be cut
as required. Remove the gland plate from the drive prior to drilling.
3.8. Guidelines for mounting (IP66 Units)
•
Before mounting the drive, ensure that the chosen location meets the environmental condition requirements for the drive shown in
section 10.1
•
The drive must be mounted vertically, on a suitable flat surface
•
The minimum mounting clearances as shown in the table below must be observed
•
The mounting site and chosen mountings should be sufficient to support the weight of the drives
Y
•
Using the drive as a template, or the dimensions shown above, mark the locations required for drilling
•
Suitable cable glands to maintain the ingress protection of the drive are required. Gland holes for power and motor cables are pre‐
moulded into the drive enclosure, recommended gland sizes are shown above. Gland holes for control cables may be cut as required.
Optidrive ODP‐2 User Guide Revision 1.30
X
X
www.invertekdrives.com
Drive X
Size Above &
Below
mm in
4 200 7.87
200 7.87
5
200 7.87
6
7 200 7.87
Note :
Typical drive heat losses are approximately 3% of
operating load conditions.
Above are guidelines only and the operating ambient
temperature of the drive MUST be maintained at all
times.
Drive X
Size Above &
Below
mm in
2 200 7.87
3 200 7.87
Note :
Typical drive heat losses are approximately 3% of
operating load conditions.
Above are guidelines only and the operating
ambient temperature of the drive MUST be
maintained at all times.
Cable Gland Sizes
Frame Power Cable Motor Cable
2 M25 (PG21) M25 (PG21)
3 M25 (PG21) M25 (PG21)
Y
Either
Side
mm in
10 0.39
10 0.39
10 0.39
10 0.39
Y
Either
Side
mm in
10 0.39
10 0.39
Control Cables
M20 (PG13.5)
M20 (PG13.5)
15
