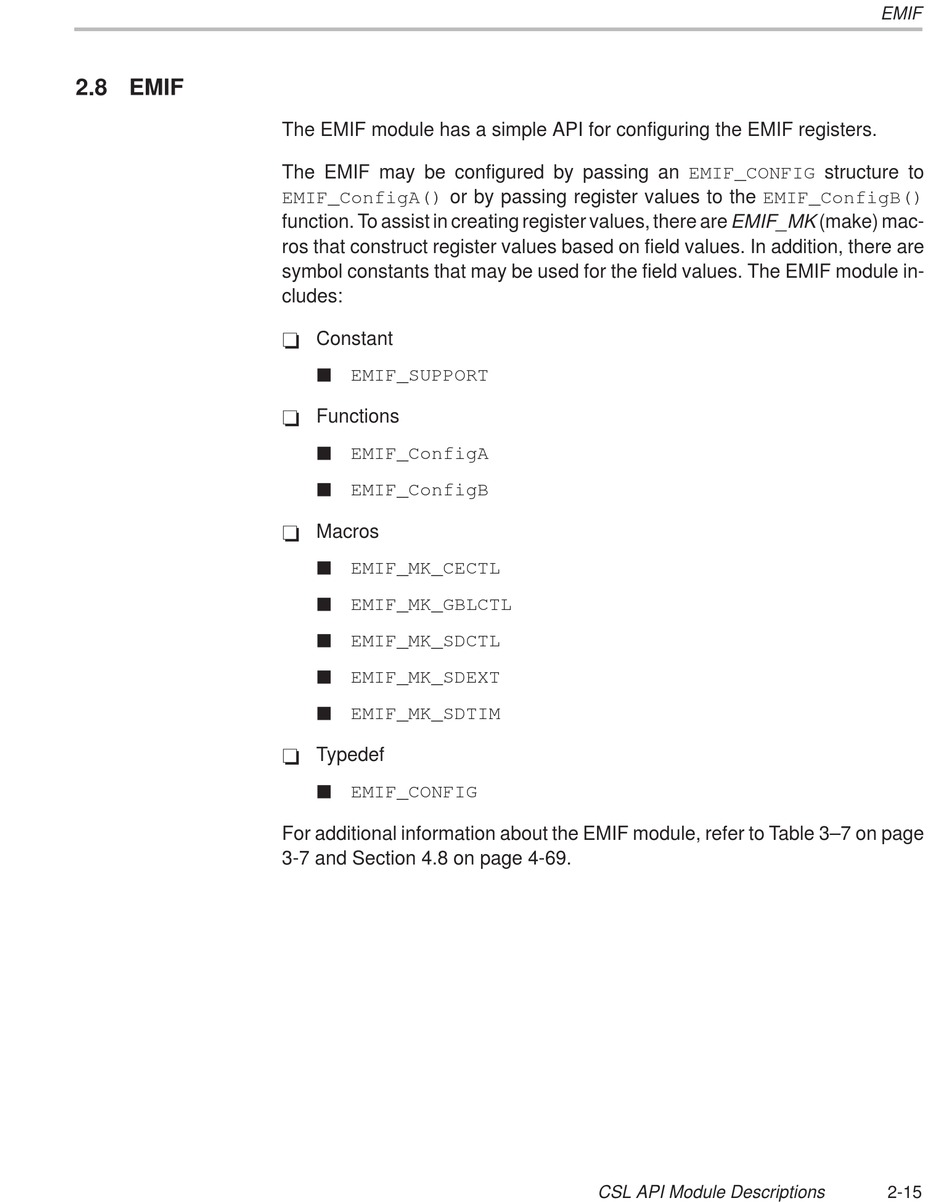

2.8 EMIF

The EMIF module has a simple API for configuring the EMIF registers.
The EMIF may be configured by passing an EMIF_CONFIG structure to
EMIF_ConfigA() or by passing register values to the EMIF_ConfigB()
function. To assist in creating register values, there are EMIF_MK (make) mac-
ros that construct register values based on field values. In addition, there are
symbol constants that may be used for the field values. The EMIF module in-
cludes:
Constant
J
EMIF_SUPPORT
Functions
J
EMIF_ConfigA
J
EMIF_ConfigB
Macros
J
EMIF_MK_CECTL
J
EMIF_MK_GBLCTL
J
EMIF_MK_SDCTL
J
EMIF_MK_SDEXT
J
EMIF_MK_SDTIM
Typedef
J
EMIF_CONFIG
For additional information about the EMIF module, refer to Table 3–7 on page
3-7 and Section 4.8 on page 4-69.
CSL API Module Descriptions
EMIF
2-15
