The Designer Series & P7 Industrial

3.0 installation

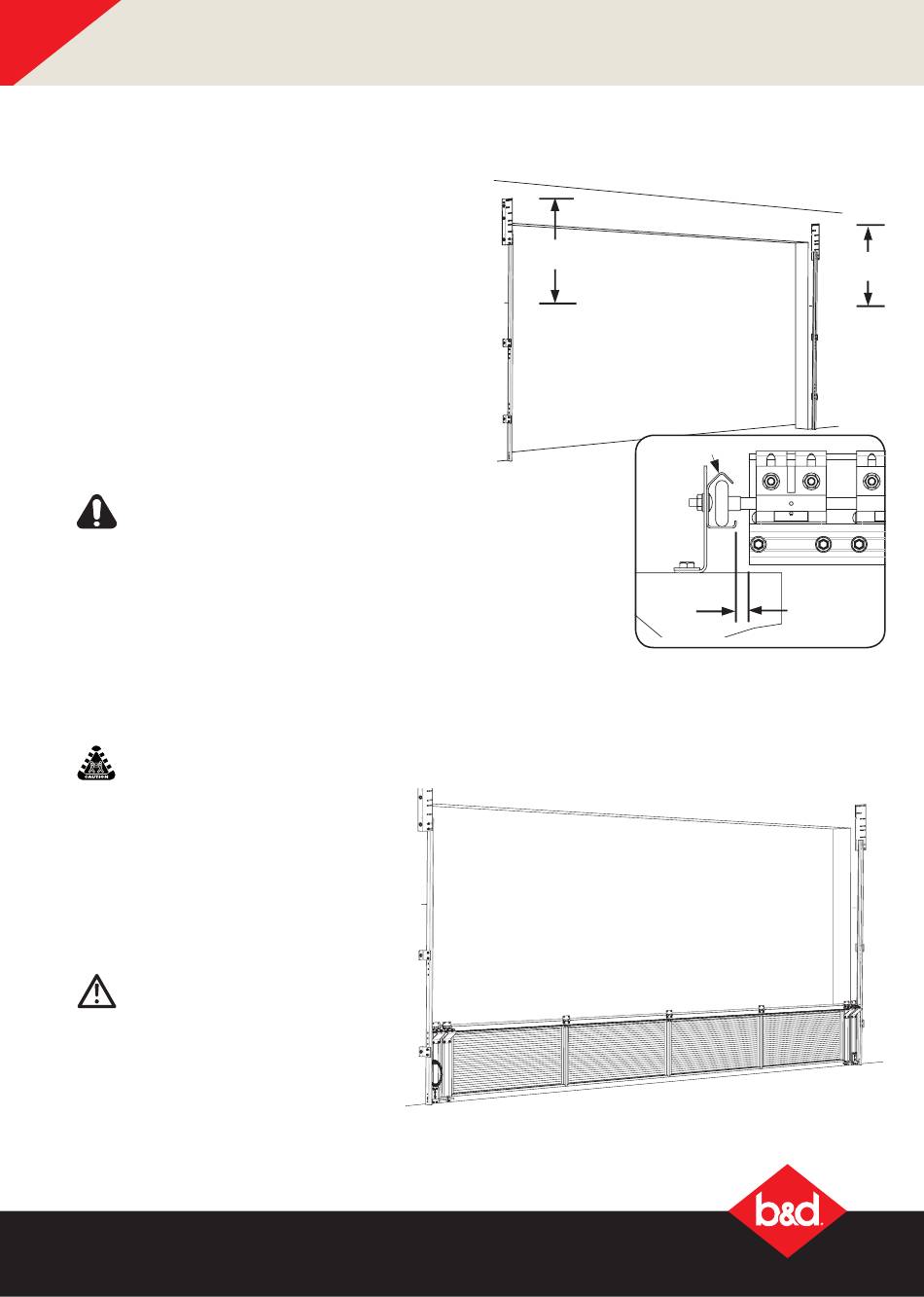

3.1 installing vertical tracks

NOTE: Refer to appendix to install flush mount track system.
a) Set the vertical tracks parallel on both sides of the door
at the vertical track width calculated in Section 1.4.2.
b) The tracks should be panel width + 20mm apart. Use
the level/datum marks to ensure the tracks are level with
each other and the same distance to the top of the track
or the door will not function correctly. Fig 3.1.1
c) Ensure to follow the measurements as shown in Fig 3.1.2
to set out the placement of the track and brackets.
d) Once satisfied temporarily fix in position with at least
two (2) fixings to the top bracket and one to each of the
lower track brackets. These will hold the tracks in position
and allow for minor adjustments.
WARNING! All fixings must be fitted after the door
is fully adjusted and operating satisfactorily.

3.2 installing bottom panel

TWO PERSON LIFT: depending on the size of the door, this process may
require two persons to lift into place.
a) Carefully lower the wheels of the bottom
panel into the tracks and lower so the panel
is sitting level in the door opening Fig 3.2.1.
b) Check that the wheels are stiting in the "V"
groove of the vertical track on each side
and there is sufficient clearance between
the panel and the track as per Fig 3.1.2.
CAUTION: After installation is complete all
plastic protective film must be removed
from all panels.
installation instructions
™
Equal
Fig: 3.1.1
"V" section
10 mm
Fig: 3.2.1
"V" section
10 mm
Fig: 3.1.2
8
Equal
