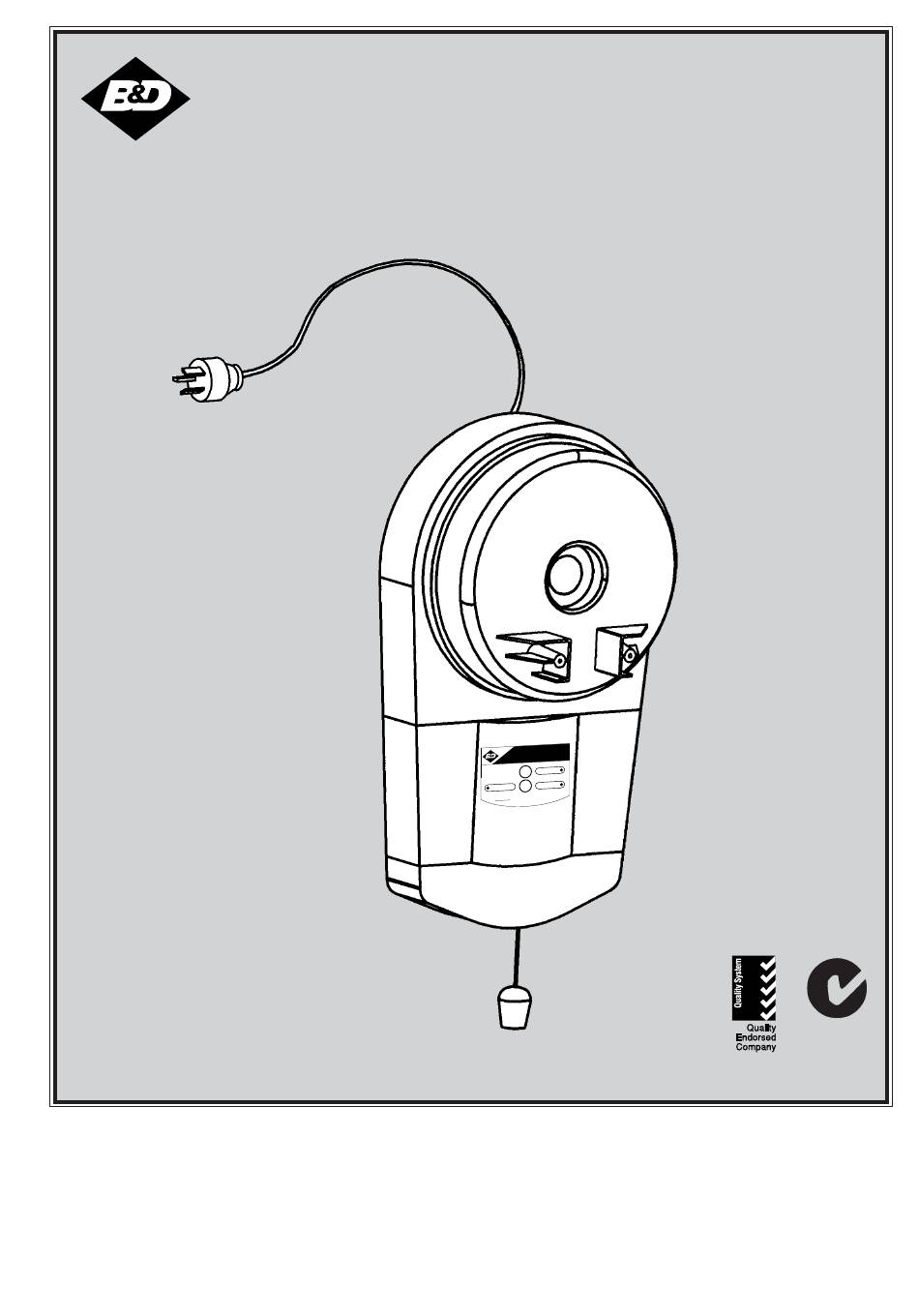

Controll-A-Door
Automatic Rolling Garage Door Opener
Instruction Manual
Instruction Manual
©Copyright 2001
B&D Australia
™
Co ntr oll- A-D oor
D O O R
O P E N E R
G A R A G E
A U T O M A T I C
CODE SET
LIMIT SET
POWE R
by
to be remove d except
WARNI NG: Cover not
authoris ed technic ian
5
®
N1134
ISO9002
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for B&D Controll-A-Door 5
Summary of Contents for B&D Controll-A-Door 5
- Page 1 ® Controll-A-Door Automatic Rolling Garage Door Opener ™ Co ntr oll- A-D oor D O O R O P E N E R G A R A G E A U T O M A T I C CODE SET LIMIT SET POWE R to be remove d except...
-
Page 2: Safety Rules
START BY READING THESE IMPORTANT SAFETY RULES These safety alert symbols mean Caution – a personal safety or property damage instruction. Read these instructions carefully. This Automatic Garage Door Opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the following safety rules. -
Page 3: Table Of Contents
CONTENTS Safety Rules ........................p. 2 Contents ..........................p. 3 About your B&D Controll-A-Door 5 Unit ..............p. 4 Specifications ........................p. 4 Accessories ........................p. 5 ection 1 Requirements Door Operation....................p. 6 Position ........................p. 6 Power Supply ......................p. 6 Sideroom......................p. 6 What you may need ....................p. 7 Section 2 General Arrangement......................p. -
Page 4: About Your B&D Controll-A-Door 5 Unit
ABOUT YOUR B&D CONTROLL-A-DOOR ® 5 OPENER Thank you for choosing B&D’s Controll-A-Door ® 5. This automatic garage door opener has been designed and developed in Australia by B&D Automatic Access Systems - an Australian Owned company - to suit local conditions. The technically advanced construction of this B&D Controll-A-Door ®... -
Page 5: Accessories
ACCESSORIES B&D has a range of additional accessories for your added convenience and security. • Safety Infra Red Beams. Gives additional protection if the door is closing onto your property or person. Simply breaking the beam “stops” the door! Must be fitted if autoclosing feature is operational - Part No 62153. •... -
Page 6: S Ection 1 Requirements
(viewed from inside the garage looking out - left is left). The opener must be mounted in a dry position that is protected from the weather. The B&D Controll-A-Door 5 ®... -
Page 7: What You May Need
WHAT YOU MAY NEED TO DO THE JOB ❐ Suitable door support (eg. a ladder) ❐ Phillips screwdriver ❐ Suitable sockets and handle with a 150mm extension ❐ 450mm pipe wrench (Stillson) or similar ❐ Adjustable wrench or spanner set ❐... -
Page 8: Section 3 Installation Procedures
SECTION 3 – INSTALLATION PROCEDURES The following is the preferred method of installing the opener Step 1: Preparation a. Check the door operation. i. The door must be smooth to operate by hand. ii. Operating force on the bottom rail must not exceed 200 Newton’s (20kg) force. iii. -
Page 9: Pin The Door Curtain
No. 10 x 32 screw Step 3: PIN THE DOOR CURTAIN Washer Pin the door curtain to the door drum at each end of the door to maintain security when the opener closes and locks. With the door fully closed: a. -
Page 10: Program The Opener
Re-attach the door bracket using your reference marks as a guide and tighten the bolts. Ensure that the slots in the mounting bracket of the opener align with the slots in the door bracket - the door bracket may have to be relocated. -
Page 11: Door Travel Limit Setting
• Switch 1: R or L. This switch selects which side of the door the opener is to be installed on -L for Left Hand, R for Right Hand. Changing the Left-Right switch will cause all previously programmed limits to be erased. The power to the opener must be turned off then on again whenever this switch is updated. -
Page 12: Remote Control Transmitter Code Setting
All remote control transmitter codes are learned using one of the following procedures: Procedure 1: • Ensure the Power LED is ON. Code Set Button • Press and hold the remote control transmitter button to be programmed. For an entry keypad the desired code should Code be typed (a minimum of four numbers or letters) and the Controll-A-Door... -
Page 13: Testing The Safety System
Closing Force The door should be in the open position with power on. Set the closing force adjuster initially to the minimum position. Press the remote control transmitter (or whilst holding the light cover in place, press the operate button) to start the door moving down. -
Page 14: Section 4 Fitting Accessory Items
SECTION 4 – FITTING ACCESSORY ITEM Wired Accessories A variety of accessory items can be fitted to the opener (eg Safety Infra Red Beam or a wall switch). In order to connect any accessory a standard Plug-in 8A 5.08mm Pitch x 5 PCB Mounting Terminal Block will need to be fitted to the outlet of the Printed Circuit Board. -
Page 15: Section 5 How To Operate
SECTION 5 - HOW TO OPERATE For maximum efficiency of your opener, your garage door must be in good operating condition. A regular service of the door by an authorised B&D dealer is recommended. • Activate the opener only when the door is in full view, free of obstructions and with the opener properly adjusted. -
Page 16: Manual Operation
Manual Operation Use caution when operating the manual release with the door open since it may fall rapidly due to weak or broken springs, or an imbalanced door. AS3350 Caution: Do not disengage the opener to manual operation with children/persons or any objects including motor vehicles within the doorway. -
Page 17: Changing A Light Globe
Changing the Light Globe Your opener uses a 240 Volt, 25 Watt, standard bayonet Pilot Light globe. If you should need to change a light globe, proceed as follows: Close the garage door to gain better access. Turn off the power at the power point. Remove the light cover. - Page 18 SECTION 6 – DIAGNOSTIC CODES The continuous flashing of the Green Power LED on the front panel indicates there may be a problem. Record the diagnostic code then turn off the power to the opener. After 15 seconds reconnect power to the opener.
-
Page 19: Section 6 Diagnostic Codes
Diagnostic Code Action Check the wiring to the Safety Infra Red ™ Controll-A-Door Beams. If there are no shorts then the IR A U T O M A T I C G A R A G E D O O R O P E N E R Beam detectors may need servicing. - Page 20 SECTION 7 – TROUBLESHOOTING Symptom Probable Cause(s) Remedy Check the door for normal operation - The opener does not work from Garage door in poor condition e.g. see monthly maintenance. either the button on the light cover springs may be broken or the hand remote control Disengage door locks transmitter...
-
Page 21: Section 7 Save A Service Call
Section 8 – Warranty Controll-A-Door Automatic Garage Door Opener Definitions ‘B&D’ means (a) in Australia - B&D Australia of 34-36 Marigold Street Revesby New South Wales 2212, a division of Kalford Pty Ltd (ABN 25 010 473 971), or (b) in New Zealand - B&D Doors NZ Pty Ltd of 70 Allens Road East Tamaki Auckland, which is a subsidiary of Kalford Pty Ltd (an Australian company). - Page 22 The Purchaser will pay for any service call made by B&D or an Authorised Distributor where such a call is made for the purpose of adjustment (as described in the Manufacturers Written Instruction Manual) and not for rectification of a defect pursuant to the warranty hereunder. The Purchaser shall be responsible for any expense incurred by B&D or an Authorised Distributor in ensuring that the Opener is readily accessible for any repair work carried out under this warranty.
- Page 23 This warranty shall be governed by and construed in accordance with Australian law if the opener was purchased in Australia, or New Zealand law if the opener was purchased in New Zealand Upon making a claim under this warranty the purchaser must produce proof of the date of purchase, together with the details set out below: Purchased from: Installed by:...
- Page 24 NSW Office: B&D Australia, 34-36 Marigold Street, Revesby 2212. Ph: (02) 9722 5555 QLD Office: B&D Australia, 34-47 Cobalt Street, Carole Park 4300. Ph: (07) 3271 7000 VIC/TAS Office: B&D Australia, 147-153 Canterbury Road, Kilsyth 3137. Ph: (03) 9237 7766 SA Office: B&D Australia, 23 Frederick Road, Royal Park 5014.
