B&D 62692 Installation Instructions

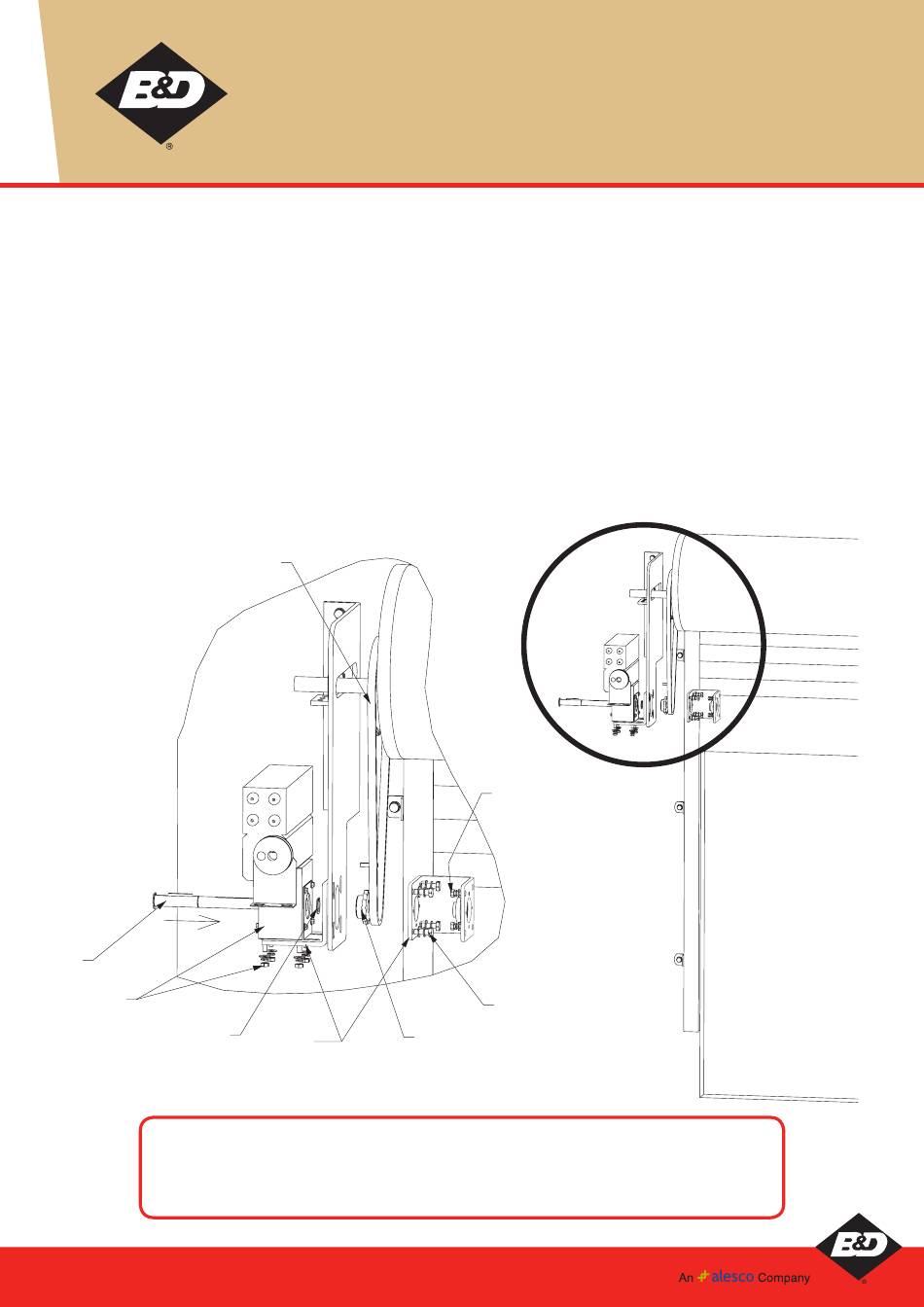

OUTSIDE MOUNTING

INSTALLATION STEPS

1. Position door for clear access to the end of the axle and drum.
2. Install L-Bracket and U-Bracket (pre-assembled with bearing) onto the main bracket with 4 sets of M12x35mm long set screws.
3. Place the motor onto the L-Bracket by guiding the 4 fi xed bolts through the slot holes at shown position and secured with 4xM10
nuts, washer and spring washers.
4. Slide the 6.4mm-keyed shaft into motor and place the 8mm key into the groove, slide steel sprocket onto the shaft and the shaft
through the bearing.
5. Secure shaft with the second external clip.
6. Align the 13 teeth steel sprocket with the above sprocket, tighten with grub screw.
7. Attach and link 10B steel chain around sprockets semi tight and adjust motor position by releasing the corresponding nuts so that
all parts rotate freely in operation.
8. Check tension of the 10B steel chain over its full rotation and if necessary realign steel sprocket concentric to the door drum axle.
A
4.
3.
5. E-CLIP
THESE INSTRUCTIONS ARE INTENDED FOR PROFESSIONAL GARAGE DOOR INSTALLERS
62937 Installation Instructions. Revision 1 September 2008
MARANTEC OPENER ON
ROLL-A-SHUTTER

INSTALLATION INSTRUCTIONS

Part No. 62692
7.
6. 13 TEETH STEEL SPROCKET
2.
DISCLAIMER
and only apply to the fittings
Note: All references are taken from inside looking out
SEE DETAIL A
M8x25 BOLT 2 OFF
M12x35 BOLT 4 OFF
