Controll-A-Door
P
Sectional Door Opener
Instruction Manual
N1854
B&D Doors is a division of B&D Australia Pty Ltd
Manufacturer's Part # 79070 (Manual)
ABN 25 010 473 971
www.bnd.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Controll-A-Door P and is the answer not in the manual?

Questions and answers

Related Manuals for B&D Controll-A-Door P

Summary of Contents for B&D Controll-A-Door P

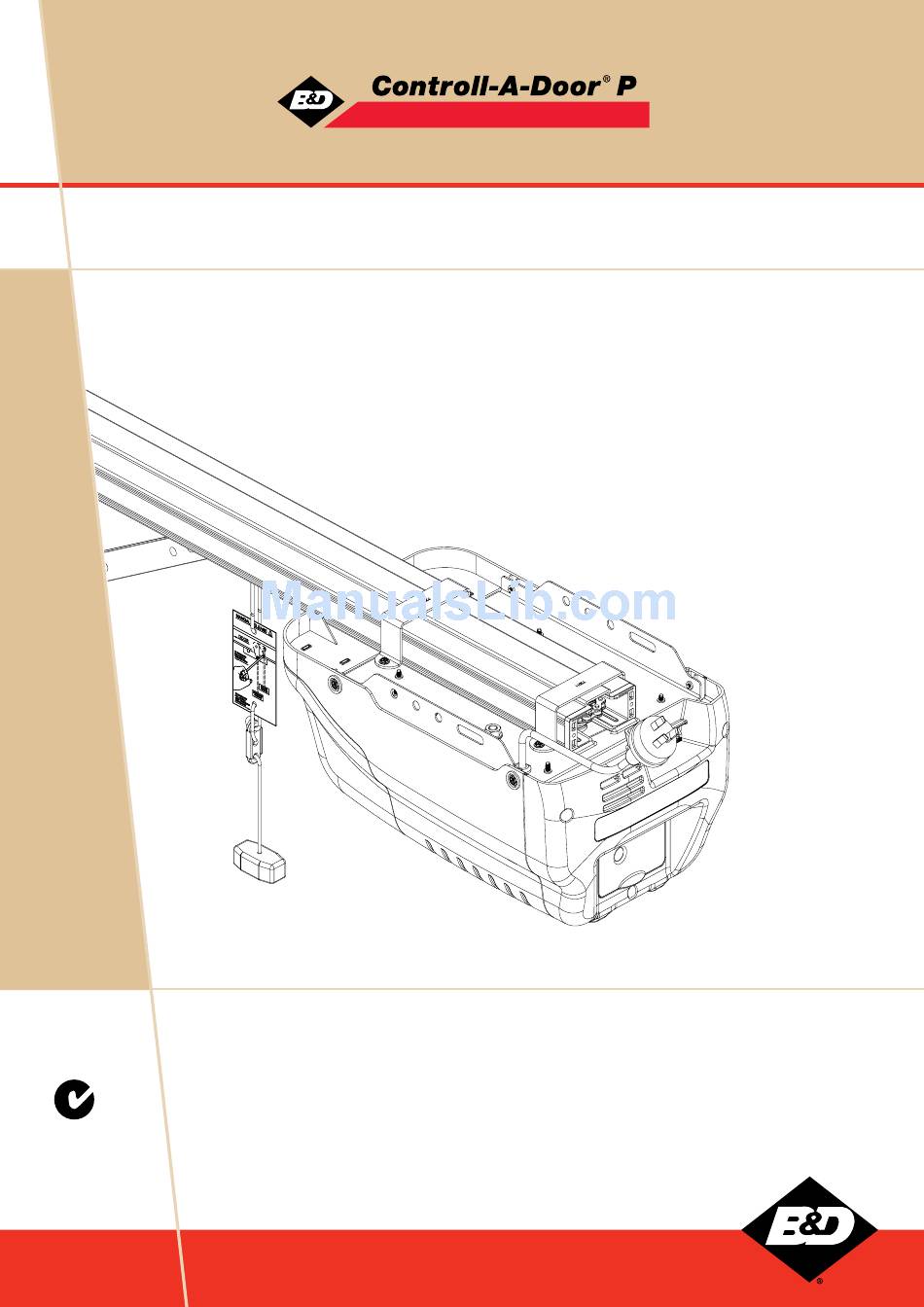

  • Page 1 ® Controll-A-Door Sectional Door Opener Instruction Manual N1854 B&D Doors is a division of B&D Australia Pty Ltd Manufacturer’s Part # 79070 (Manual) ABN 25 010 473 971 www.bnd.com.au...

  • Page 2: Table Of Contents

    Controll-A-Door ® Instruction Manual Controll-A-Door ® Sectional Door Opener Safety Rules How To Use Your Opener Default Settings and Specifications Transmitter About Your B&D Opener Locking Operating Controls Manual Door Operation Kit Contents Power Failure Installation Transmitter battery Knockdown C-Rail Assembly Safety Infra-red Beam Attaching the C-Rail Auto-Close...

  • Page 3: Safety Rules

    Controll-A-Door ® Instruction Manual Safety Rules Please read these important safety rules These safety alert symbols indicate a personal safety or property damage instruction exists. ReAD THeSe InSTRUCTIOnS CARefUllY. This automatic garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the following safety rules.

  • Page 4: Default Settings And Specifications

    Controll-A-Door ® Instruction Manual Default Settings & Specifications factory default settings Default Step Minimum Maximum Maximum motor run time 40 seconds Courtesy light time 4 minutes (approx.) Obstruction force margin Auto-Close time 30 seconds Technical specifications Power supply 230V - 240Va.c. 50Hz Transformer rating 24Va.c.

  • Page 5: About Your B&D Opener

    Controll-A-Door ® Instruction Manual About Your B&D Opener Manual Release Thank you for choosing a Controll-A-Door ® P automatic garage door opener, designed and developed in Australia The manual release handle allows the door to be by B&D Doors & Openers. operated by hand in the event of a power failure.

  • Page 6: Operating Controls

    Controll-A-Door ® Instruction Manual Operating Controls PROG InPUT is used to connect the Universal Handheld Programmer to edit control and receiver functions. Safety Infra-red Beam Auto-Close Shunt has to be placed on to enable the Auto-Close feature. Terminal Block: PWR is used to power devices such as Safety Infra-red Beams and external receiver (100 milliamp max). IR input is used to connect to Safety Infra-red Beam.
  • Page 7 Controll-A-Door ® Instruction Manual fig. 01 © Copyright January 2008 B&D Doors Diamond PD Power Drive : Instruction Manual...

  • Page 8: Kit Contents

    Controll-A-Door ® Instruction Manual Kit Contents Powerhead Unit 1 x Controll-A-Door P powerhead (fig. 02) ® 1 x Transmitter pack (fig. 02) (Pack includes two keyring transmitters and batteries) 1 x Wall mount transmitter with battery 2 x Door attachment arms (fig.

  • Page 9: Installation

    Controll-A-Door ® Instruction Manual Knockdown C-Rail Assembly To Assemble (fig. 05). Unpack and assemble the C-Rail using the steps outlined below in fig. 05 TENSION 13mm HEX BOLT © Copyright January 2008 B&D Doors Diamond PD Power Drive : Instruction Manual...

  • Page 10: Attaching The C-Rail

    Controll-A-Door ® Instruction Manual Attaching the C-Rail IMPORTAnT nOTe: Do not power up the powerhead before assembling to the C-Rail. Step 1 - Centre the Shuttle Make sure the shuttle is near the MARKER, which is located fig. 06 in the centre of C-Rail (fig.

  • Page 11: Determine Door Type

    Controll-A-Door ® Instruction Manual Determine the Door Type Proceed from Step 5 IMPORTAnT nOTe: Ensure that no parts of the door extend over public footpaths or roads before installing the opener Step 4 - Determine Door Type Track Determine which type of garage door you have as illustrated in (Fig.

  • Page 12: Mounting On A Track Type Door

    Controll-A-Door ® Instruction Manual Mounting on a Track Type Door Step 5 - Determine Bracket Position Open the door and find the highest point of travel of Level the top door panel. Level Using a level, transfer this height to the wall above the (fig.

  • Page 13: Mounting - Non-Track Type Door

    Controll-A-Door ® Instruction Manual Mounting on a non-Track Type Door Centre of door WARnInG: Make sure concrete, brick wall or timber lintels are solid and sound so as to form a secure mounting platform. fig. 16 Step 9 - Determine the Door’s Centre Find the centre of the door and mark this location both above the door and on top of the door.

  • Page 14: Mounting Door Bracket & Arms

    Controll-A-Door ® Instruction Manual Mounting Door Bracket and Arms Step 12.1 - Alternative Mounting Option Drill hole at centre of track The opener can be fastened to the roof by driving a bolt (recommended bolt size through the C-Rail into a structural timber support. The bolt M6 or M8) head’s height must not exceed 6mm (fig.

  • Page 15: Programming The Opener

    Controll-A-Door ® Instruction Manual Setting Travel limits nOTe: The OPERATE button will not function until the open and close limit positions are set. fig. 24 nOTe: If a Safety Infra-red Beam is to be used it must be installed before setting the travel limits.
  • Page 16 Controll-A-Door ® Instruction Manual Setting Travel limits Step 15.3 - Set the Open limit Position Press and hold the PLUS (+) button until the door reaches the desired open limit position. Single presses of the button will inch the door closed (fig.

  • Page 17: Safety Obstruction Force Test

    Controll-A-Door ® Instruction Manual Safety Obstruction force Test Please take care when testing the Safety Obstruction Force. Excessive force may cause SERIOUS PERSONAL INJURY and/or PROPERTY DAMAGE can result from failure to follow this warning. fig. 28 Step 16.1 - Testing Close Cycle Press the OPERATE button to open the door (fig.

  • Page 18: Adjusting Safety Obstruction Force

    Controll-A-Door ® Instruction Manual Adjusting Safety Obstruction force Adjusting Safety Obstruction force The Safety Obstruction Force is calculated automatically and set in the memory on the opener during setup. It is usually not necessary to adjust the Safety Obstruction Force. The only time the force may need to be increased is due fig.

  • Page 19: Coding Transmitters

    Controll-A-Door ® Instruction Manual Coding Transmitters Step 17.1 - Storing the Transmitter Code The opener can only operate from transmitters that have been programmed into its receiver. The receiver needs to learn the codes of any transmitter that will be used with the operator.

  • Page 20: Vacation Mode

    Controll-A-Door ® Instruction Manual Coding Transmitters Step 17.3 - Setting the Transmitter to Operate Vacation Mode The opener can be programmed into a “Vacation Mode” where the opener will not respond to any transmitter except one preprogrammed unit. Press CODE SET Press CODE SET button three times.

  • Page 21: Pet Mode

    Controll-A-Door ® Instruction Manual Coding Transmitters Step 17.5 - Setting the Transmitter to Operate Pet (Pedestrian) Mode The opener can be programmed into a “Pet Mode” where the door opens partially to allow pets to enter/exit the garage: Press the CODE SET button five times, the CODE SET LED will illuminate and the courtesy light will flash Press CODE SET fig.

  • Page 22: Accessories

    Controll-A-Door ® Instruction Manual Accessories Terminal Block A variety of wired accessory items can be connected to the terminal block such as Safety Infra-red Beams, wall switch, door status indicator and more. The terminal block also features and auxiliary output for controlling other devices from your transmitter.

  • Page 23: Safety Infra-Red Beam

    Controll-A-Door ® Instruction Manual Accessories Safety Infra-red Beam (Part no 062734) ADDITIOnAl PROTeCTIOn STROnGlY B&D Doors recommend the fitting of a Safety Infra-red Beam. In most countries Safety Infra-red Beams are mandatory on all garage doors fitted with automatic openers. For a small additional outlay, B&D recommends that Safety Infra-red Beams be installed with the automatic opener ensuring additional safety and peace of mind.

  • Page 24: How To Use Your Opener

    Controll-A-Door ® Instruction Manual How To Use Your Opener For maximum efficiency of your opener, your garage door must be in good operating condition. An annual service of your garage door by an Approved Dealer is recommended. CAUTOn - Activate the opener only when the door is in full view, free of obstructions and with the opener properly adjusted.

  • Page 25: Manual Door Operation

    Controll-A-Door ® Instruction Manual How To Use Your Opener Manual Door Operation When this option is selected the garage door opener will attempt to close the door automatically 30 seconds after CAUTIOn: Do not open manual release in the opening. open position, only use in the closed position.

  • Page 26: Troubleshooting Guide

    Controll-A-Door ® Instruction Manual Troubleshooting Guide Symptom Possible cause Remedy The opener does not work from the Garage door in poor condition e.g. Check the door’s operation - see transmitter springs may be broken monthly maintenance (Page 27) The opener does not have power Plug a device e.g.

  • Page 27: Parameters

    Controll-A-Door ® Instruction Manual Parameters Door status indicators Door opener state OPen leD (green) ClOSe leD (red) Beeper Open Close Opening Flashing Closing Flashing Door travel stopped Flashing Flashing Door obstructed when opening Flashing Door obstructed when closing Flashing Beeps while door is moving Opener overloaded Alternating flashes...

  • Page 28: Maintenance

    Controll-A-Door ® Instruction Manual Maintenance Maintenance CAUTIOn: Frequently examine door, The SERVICE LED will indicate the requirement for a particularly cables, springs and service and/or adjustment. To reset the SERVICE LED mountings for signs of wear, damage when the door is serviced, reprogram the Door Travel or imbalance.

  • Page 29: Spare Parts

    Controll-A-Door ® Instruction Manual Spare Parts © Copyright January 2008 B&D Doors Diamond PD Power Drive : Instruction Manual...
  • Page 30 Controll-A-Door ® Instruction Manual Warranty 1. Definitions ‘B&D’ means (a) in Australia - B&D Doors of 17 Oasis Court, Clontarf, Queensland, 4019, a division of B&D Australia Pty Ltd (ABN 25 010 473 971), or (b) in New Zealand - B&D Doors NZ Ltd of 70 Allens Road East Tamaki Auckland, which is a subsidiary of B&D Australia Pty Ltd.

  • Page 31: Warranty

    Controll-A-Door ® Instruction Manual Warranty 9. Subject to paragraph 12 hereof; (i) the obligations of B&D under this warranty are limited to those contained herein and such warranties are expressly in lieu of all other warranties, express or implied, including any implied warranty of merchantability or fitness for a particular purpose and notwithstanding any course of dealing between the parties or custom and usage in the trade to the contrary.
  • Page 32 QLD Office: 17 Oasis Court, Clontarf 4019. Ph: (07) 3883 0200 NSW Office: 34-36 Marigold St, Revesby 2212. Ph: (02) 9722 5555 VIC/TAS Office: 147-153 Canterbury Road, Kilsyth 3137. Ph: (03) 9237 7766 SA Office: 23 Frederick Road, Royal Park 5014. Ph: (08) 8440 4747 WA Office: 96 Mulgul Drive, Malaga 6062.
