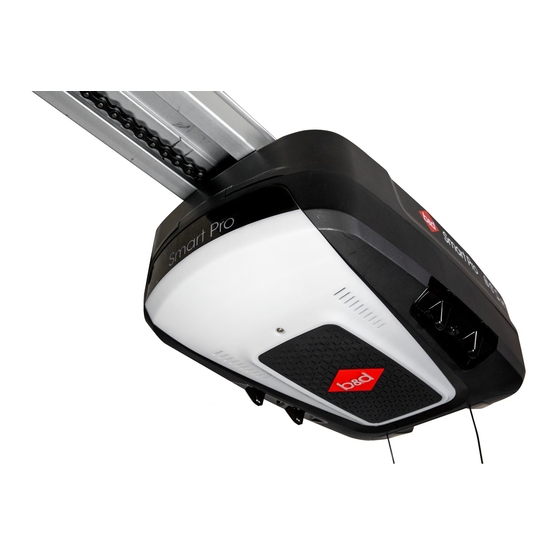

- Page 1 Smart Pro Sectional Door Opener installation instructions Smart Pro SDO-9 These instructions are intended for professional garage door opener installers. All references are taken from inside looking out. DOC# 161072_00 RELEASED: 22/02/21 www.bnd.com.au...
-
Page 2: Table Of Contents
Smart Pro installation instructions Contents Installation Instructions 15. Coding a Transmitter 1. Installation Safety Warnings! 15.1 Storing the Transmitter Code 2. Before you Begin 15.2 Remotely Coding Transmitters 3. Tools Required 15.3 Erasing All Transmitter Codes 4. Kit Contents 15.4 Vacation Mode 5. -
Page 3: Installation Safety Warnings
Smart Pro installation instructions 1. Installation Safety Warnings! This automatic garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the following safety warnings. Failure to comply with the following instructions may result in death, serious personal injury or property damage. -
Page 4: Before You Begin
Smart Pro installation instructions 2. Before you Begin 2.1 Examine the conditions in the garage: a. Look at the ceiling: i. Is it plastered? The opener is mounted to a perforated angle which MUST be securely fastened to a structural support. -
Page 5: Kit Contents
Smart Pro installation instructions 4. Kit Contents 1 x SDO drive unit 1 x Door bracket 1 x Battery kit 1 x Wall mount transmitter 3 x Pin Snap SSP 8 ZNU 31080 1 x Wireless PE Beam Kit 2 x Transmitters... -
Page 6: Fit The Opener
Smart Pro installation instructions 6. Fit the Opener 6.1 Connecting the Battery Backup a. Remove the screw and open the cover to the batteries. b. Connect the coupling blue harness to the red plus terminal on Battery , then connect coupling blue... -
Page 7: Bracket Position
Smart Pro installation instructions 7. Bracket Position 7.1 Wall Bracket Position: a. Determine the centre of the door and mark this point with a line on the 60mm wall above. Level b. Raise the door and find the highest point of travel of the first (top) door panel. -
Page 8: Perforated Angle
Smart Pro installation instructions 8. Perforated Angle (Not supplied) 8.1 Attach Perforated Angle or equivalent a. Measure across the ceiling from the centre point 3177mm (+/- 150mm) to find a supporting beam. b. Create a perforated angle which best suits your site. Use a hack saw to cut the L shape metal strips. Secure the perforated angle to a supporting beam using diagrams shown below. -
Page 9: Safety Beam Kit
Smart Pro installation instructions 10. Safety Beam Kit WARNING! The Opener must be fitted with Safety Beams if: • the closing force at the bottom edge of the door exceeds 400N (40kg) and/or; • the opener has a smart device fitted to operate the door, when not in line-of-sight. -
Page 10: Specifications
Smart Pro installation instructions 11. Specifications Technical Specifications Controll-A-Door Smart Pro ® SDO-9 Rated voltage range: 230V - 240V Rated frequency: 50Hz / 60Hz Rated power input: 225W Door opening: Maximum Door Weight: 300kg* Door must be well balanced and able to be operated by... -
Page 11: Setting Limits
Smart Pro installation instructions 12. Setting Limits CAUTION! Limit setup is not available when running on battery backup Refer to Appendix G for setting limits via a transmitter. NOTE: SPEED of the opener can not be adjusted when using this method. -
Page 12: Clearing The Door Limit Positions
Smart Pro installation instructions NOTE: If unhappy with the speed or travel limit setting, restart this procedure by resetting the door limit positions as per below first. 12.2 Clearing the Door Limit Positions Limit positions can be deleted by: a. Press the MODE button repetitively until the GEAR is lit. -
Page 13: Safety Testing
Smart Pro installation instructions 13. Safety Testing 13.1 Test the Close Cycle CAUTION: Take care when completing a a. Press the OPEN button or transmitter button to open the safety test. Failure to follow this warning door (If the door starts closing, press the transmitter button to can result in serious personal injury stop the door, then press transmitter again to open). -
Page 14: Auto-Close & Accessories
Smart Pro installation instructions 14. Auto-Close & Accessories 14.1 Auto-Close Auto-Close mode is a function that automatically closes the door after a pre-set time. Safety beams must be installed in order to run the Auto-Close function. There are two types of Auto-Close available: i. -
Page 15: Coding A Transmitter
Smart Pro installation instructions 15. Coding a Transmitter BUTTON 15.1 Storing the Transmitter Code TRANSMITTER The opener can only be operated from remote control FUNCTION transmitters that have been programmed into its memory. Up to 64 codes can be stored in the memory. -
Page 16: Smart Phone Control
Smart Pro installation instructions 16. Smart Phone Control This device allows for operation of the door when not in line-of-sight of the door and opener. The door may operate unexpectedly, therefore do not allow anything to stay in or near the path of the door. -
Page 17: Home Owner Safety Warnings
Smart Pro installation instructions 17. Home Owner Safety Warnings! This automatic garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the following safety warnings. Failure to comply with the following instructions may result in death, serious personal injury or property damage. -
Page 18: Opener Safety & Security
Smart Pro installation instructions 18. Opener Safety & Security WARNING! When operating manual release (while the door is 18.1 Your Door CAN NOT be used by the opener when: open) the door may fall rapidly due a. There is a manual locking device installed. -
Page 19: User Operating Controls
Smart Pro installation instructions 20. User Operating Controls Button Function 1. DOWN ARROW (Blue) Closes the door 2. DOWN ARROW LED (Blue) Illuminates when the door is closed and flashes when the door is obstructed on close or stopped. 3. STOP/SET (Red) Stops the door 4. -
Page 20: Troubleshooting
Smart Pro installation instructions 21. Troubleshooting Symptom Possible cause Remedy The opener does Garage door in poor condition e.g. Check the door’s operation not work from the springs may be broken transmitter The opener does not have power Plug a device of similar voltage (e.g. a hairdryer) - Page 21 Smart Pro installation instructions 21. Troubleshooting Main Light = Service / Warning Indicator: Requirements for a service and user warnings are indicated after operation by the main light repeatably flashing OFF a number of times followed by a pause. When the alert is first triggered the beeper will also sound The below table identifys the issues and remedies.
-
Page 22: After Installation Care
Smart Pro installation instructions 22. After Installation Care 22.1 Service Checklist Preventative servicing of your garage door and opener, WARNING! Failure to maintain your your is just as important as servicing your car. Much like the garage door voids the warranty on your engine of your car, your garage door is made up of garage door opener. -
Page 23: Battery Replacement
Smart Pro installation instructions 22. After Installation Care 22.2 Battery Replacement Battery Type: 3V Lithium Battery CR2032. a. To test the battery is working, press and hold a transmitter button. Check Light Status table to Use a pen determine if battery needs replacing... -
Page 24: Appendix
Smart Pro installation instructions 23. Appendix A - Status Indication during Operating Mode. LEDs Light Status Indicates BLUE GREEN YELLOW PURPLE DOOR OPEN AND CLOSED LEDS solid Open rapid Open with Autoclose timer running flashing flashing Opening / Obstructed on Open... -
Page 25: B - Adjustment Mode Instructions
Smart Pro installation instructions B - Adjustment Mode Instructions a. Press the MODE button repetitively until the GEAR LED starts flashing b. Referring to the table below, select the desired parameter using the OPEN and CLOSE buttons and observing the number of flashes on the GEAR LED. -
Page 26: C - Adjusting Force Margins
Smart Pro installation instructions C - Adjusting Force Margins The Safety Obstruction Force is calculated automatically during setup. Adjusting this is normally only necessitated by environmental conditions such as windy or dusty areas, and areas with extreme temperature changes. To Increase / Decrease Force Pressure a. -
Page 27: G - Setting Limits Via Transmitter
Smart Pro installation instructions G - Setting Limits via Transmitter The SPEED setting on the opener can not be adjusted when setting limits via the transmitter. Follow section 12.1 to set limits and adjust speed. a. Switch power on and the BLUE LED on the CLOSE button... - Page 28 Smart Pro installation instructions b&d doors office locations your representative is Head Office 6-8 Fiveways Blvd, Keysborough 3073 Phone (03) 9791 2000 New South Wales 34 Marigold St, Revesby 2212 Phone (02) 9722 5555 Queensland 17 Oasis Court, Clontarf 4019...
