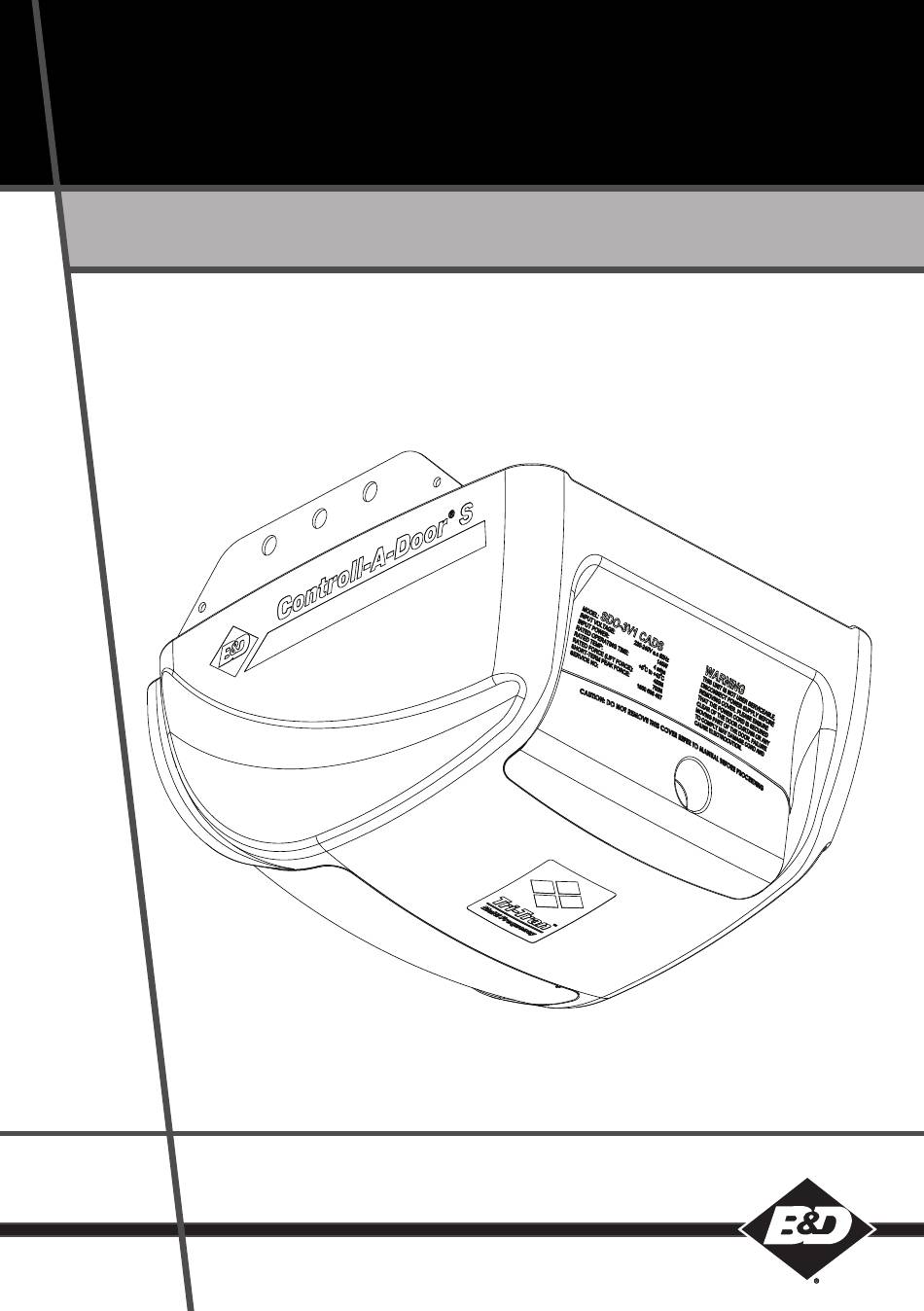

- Page 1 ® Controll-A-Door Sectional Door Opener SDO-3 Home Owner’s Manual Doc #: 161005_00 Part #:79092 08/05/2013 B&D Doors is a division of B&D Australia Pty Ltd ABN 25 010 473 971...
-
Page 2: Table Of Contents
® Controll-A-Door S SDO-3 Home Owner’s Manual Table of Contents 1. Safety Rules 2. Features 3. Specifications 4. Operating your door 5. User Operating Controls 6. Opener Safety and Security 6.1 Manual Door Operation 6.2 Emergency Evacuations 6.3 Power Failure 6.4 Re-Engaging the Opener 6.5 Security - Inbuilt Locking Facility 7. -
Page 3: Safety Rules
® Controll-A-Door S SDO-3 Home Owner’s Manual 1. Safety Rules Please read these important safety rules This automatic garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the following safety rules. Failure to comply with the following instructions may result in death, serious personal injury or property damage. -
Page 4: Features
® Controll-A-Door S SDO-3 Home Owner’s Manual 2. Features Warranty Self Locking Five (5) year/10,000 cycles full parts and labour There is no need to manually lock your garage warranty on motor, electronics and mechanical door, as the opener ‘positively’ locks the door components of the opener when installed by a when closed. -
Page 5: Specifications
® Controll-A-Door S SDO-3 Home Owner’s Manual 3. Specifications Technical Specifications Power supply 230V - 240Va.c. 50Hz Maximum door opening: Width: 5500mm (16.5m Height: 2150mm Weight: 100kg Minimum headroom 25mm Short Term Peak force 700N (70kg) Rated Force 450N (45kg) with Chain 400N (40kg) with Timing Belt Nominal force 150N (15kg) -
Page 6: Operating Your Door
® Controll-A-Door S SDO-3 Home Owner’s Manual 4. Operating your door For maximum efficiency of your opener, your garage door must be in good operating condition. An annual service of your garage door by a Dealer is recommended. CAUTION: Activate the opener only when the door is in full view, free of obstructions and with the opener properly adjusted. -
Page 7: User Operating Controls
® Controll-A-Door S SDO-3 Home Owner’s Manual 5. User Operating Controls Button (Fig 5.1) Function 1. OPERATE Opens/stops/closes the door. 2. CLOSE LED (Red) Illuminates and flashes as the door closes, and remains on when the close limit position has been reached. 3. -
Page 8: Opener Safety And Security
® Controll-A-Door S SDO-3 Home Owner’s Manual 6. Opener Safety & Security 6.1 Manual Door Operation WARNING! When operating the To disengage the opener from the door (preferably manual release (while the door is with the door in the closed position), pull down open) the door may fall rapidly due on the string handle on an angle towards the door to weak or broken springs, or due to... -
Page 9: Safety Testing
® Controll-A-Door S SDO-3 Home Owner’s Manual 7. Safety Testing 7.1 Test the Close Cycle CAUTION: Take care when (Fig 7.1) a. Press the transmitter to open the door. completing a safety test. Failure b. Place a piece of timber approximately 40mm high on to follow this warning can result (Fig 7.2). -
Page 10: Coding Transmitters
® Controll-A-Door S SDO-3 Home Owner’s Manual 8. Coding Transmitters 8.1 Storing the Transmitter Code ELECTROCUTION! The button The opener can only operate from transmitters that cover is the only cover that should have been programmed into its receiver. The receiver be removed. -
Page 11: Setting The Transmitter To Operate Vacation Mode
® Controll-A-Door S SDO-3 Home Owner’s Manual 8. Coding Transmitters 8.3 Setting the Transmitter to Operate Vacation Mode The opener can be programmed into a “Vacation Mode” where the opener will not respond to any transmitter except one preprogrammed unit. Press DOOR a. -
Page 12: Troubleshooting Guide
® Controll-A-Door S SDO-3 Home Owner’s Manual 9. Troubleshooting Guide Symptom Possible cause Remedy The opener does Garage door in poor condition e.g. Check the door’s operation - see not work from the springs may be broken monthly maintenance (Section 10.1) transmitter The opener does not have power Plug a device of similar voltage... - Page 13 ® Controll-A-Door S SDO-3 Home Owner’s Manual 9. Troubleshooting Guide Symptom Possible cause Remedy Courtesy Light flashes The opener has reached See (Section 10.5) Contact your and the opener beeps the number of cycles dealer and arrange a door service. 5 times after each recommended before servicing.
-
Page 14: Maintenance
® Controll-A-Door S SDO-3 Home Owner’s Manual 10. Door Maintenance 10.1 Door Maintenance WARNING! Failure to maintain your Whilst your opener does not require any periodic garage door may void the warranty maintenance, the door that it is fitted to, does. on your garage door opener. -
Page 15: Opener Maintenance
® Controll-A-Door S SDO-3 Home Owner’s Manual 10. Opener Maintenance 10.4 Opener Maintenance To ensure a long and trouble free life for your opener the following is recommended: • Monthy: Run the Safety Testing procedures in Section 7 to ensure garage door is fit for use. NOTE: If the door does not operate smoothly, call your nearest Approved Dealer. -
Page 16: Warranty
® Controll-A-Door S SDO-3 Home Owner’s Manual 11. Warranty Product: CAD S SD0-3 Purchased from:______________________________Purchaser:___________________________________ (described as “you” below) Address:_____________________________________Installed by:__________________________________ Installed on (date):____________________________Invoice No:__________________________________ 1. MAkINg A CLAIM - To make a warranty claim you must: a. produce a copy of the receipt of purchase, together with this warranty certificate with the above details completed; and b. - Page 17 ® Controll-A-Door S SDO-3 Home Owner’s Manual 11. Warranty 5. WhAT VOIDS ThE WARRANTy - Subject to paragraph 6, this warranty does not extend to, and B&D will be relieved of, all obligations, responsibilities and liabilities in the event that defects in the Product are directly or indirectly, in the opinion of B&D, due to or resulting from: a.
-
Page 18: Optional Accessories
® Controll-A-Door S SDO-3 Home Owner’s Manual 12. Optional Accessories There are a range of additional accessories for your added convenience and security. Contact your Dealer for installation of these accessory items. Safety Beams • - Provides additional protection if the door is closing onto your property or person. -
Page 19: Service Schedule
® Controll-A-Door S SDO-3 Home Owner’s Manual 13. Service Schedule year / Date Details Approx. Cycles 1 / 3,000 2 / 6,000 3 / 9,000 4 / 12,000 5 / 15,000 B&D Doors is a division of B&D Australia Pty Ltd Phone: 13 62 63 Website: www.bnd.com.au Diamond PD Power Drive : Instruction... - Page 20 ® Controll-A-Door P Diamond SDO-2 Home Owner’s Manual Is your opener beeping and flashing? It may be time for a service (for more details see section 10.5) For a service contact your dealer using the details below... Dealer: B&D Doors is a division of B&D Australia Pty Ltd ABN 25 010 473 971...
Need help?
Do you have a question about the Controll-A-Door S and is the answer not in the manual?
Questions and answers
My remote will open B&D Control a Door S series but will not close it. I must use wall switch to close. It previously worked well for over 5 years
The B&D Controll-A-Door S series remote may not close the door if:
1. The transmitter is not programmed — refer to Section 8 to program it.
2. There is an obstruction — the door should reverse or stop if obstructed.
3. Obstruction sensing is faulty — discontinue use and contact your dealer.
4. The opener is in manual mode — re-engage the opener for remote operation.
Check these conditions to identify the issue.
This answer is automatically generated
door won't open using transmitters,door code button won't come on when pressed,door will work with plus or minus button is used,why won' door work with transmitters.
The B&D Controll-A-Door S may not work with transmitters for the following reasons:
1. The transmitter button is not programmed to operate the door.
2. The incorrect button on the transmitter is being pressed.
3. The transmitter is faulty.
4. The transmitter battery is flat.
5. The opener is in “Vacation Mode.”
6. The transmitter code has not been stored in the opener’s memory.
7. The transmitter is not aimed properly (e.g., not through the windscreen when in a vehicle).
8. External conditions (e.g., temperature or interference) are affecting transmitter range.
9. The battery in the transmitter is exhausted.
This answer is automatically generated
