NSW Office:
B&D Australia
34-36 Marigold Street
Revesby 2212
(02) 9722 5555
QLD Office:
B&D Australia
37-47 Cobalt Street
Carole Park 4300
(07) 3271 7000
VIC/TAS Office: B&D Australia
147-153 Canterbury Road
Kilsyth 3137
(03) 9237 7766
B&D Doors
New Zealand:
70 Allens Road
EastTamaki
Auckland, New Zealand
(09) 273 8600

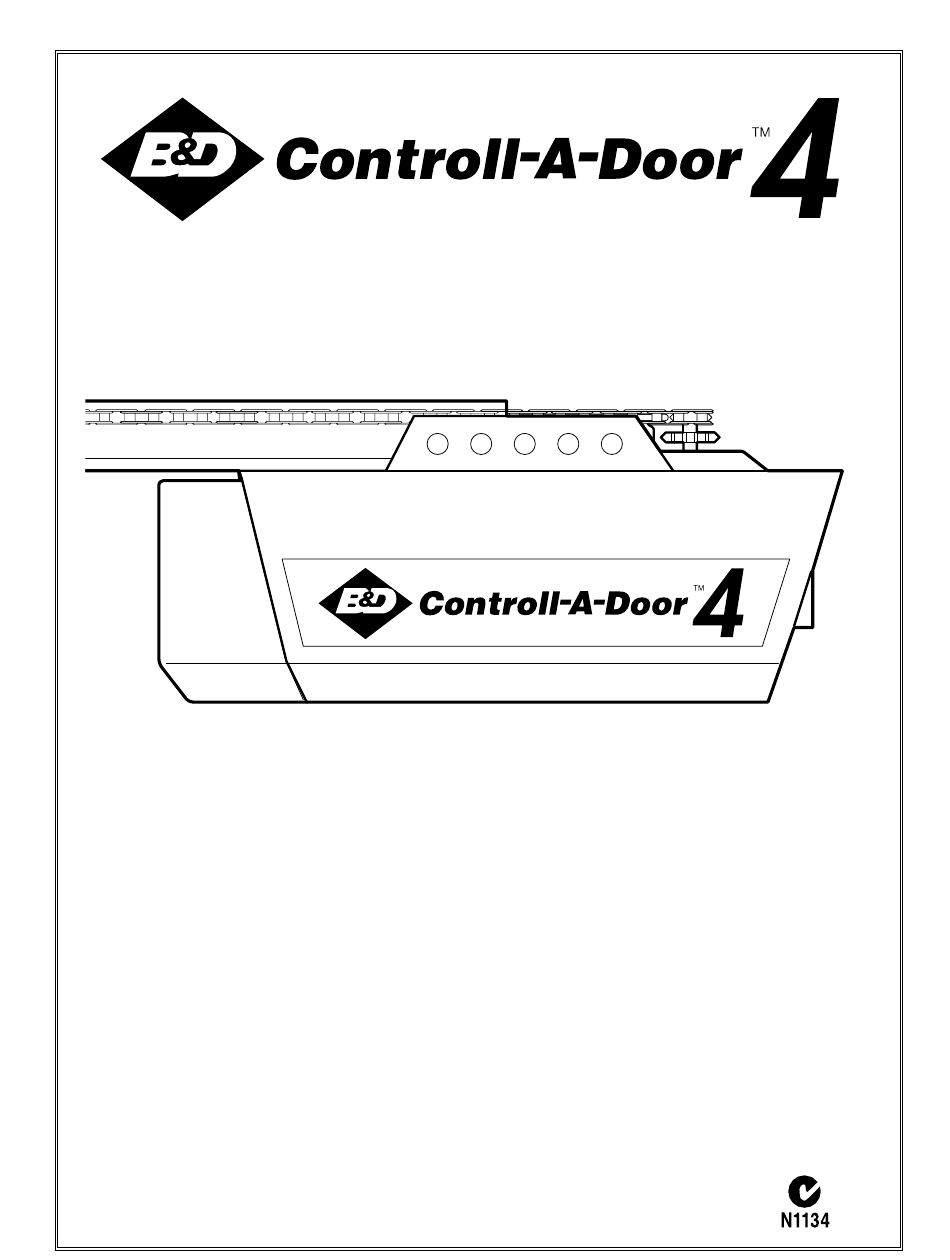

INSTRUCTIONS
with 433MHz Radio Controls
SA Office:
WA Office:
B&D Australia
23 Frederick Road
Royal Park 5014
(08) 8447 4747
B&D Australia
96 Mulgul Drive
Malaga 6062
(08) 9247 8777
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for B&D Controll-A-Door 4
Summary of Contents for B&D Controll-A-Door 4
- Page 1 INSTRUCTIONS with 433MHz Radio Controls NSW Office: B&D Australia SA Office: B&D Australia 34-36 Marigold Street 23 Frederick Road Revesby 2212 Royal Park 5014 (02) 9722 5555 (08) 8447 4747 QLD Office: B&D Australia WA Office: B&D Australia 37-47 Cobalt Street 96 Mulgul Drive Carole Park 4300 Malaga 6062...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Adjustment Section 25-27 Introduction Adjust the travel limits ..........25 Safety rule review............2 Adjust the force ............26 Preparing your garage door ........3 Test the safety reverse system .........27 Tools needed ...............3 Testing the safety infra-red beam sensors ....27 Planning ..............4-5 Carton inventory ............6 Operation... -
Page 3: Preparing Your Garage Door
Preparing your garage door WARNING • Disable locks. Insert wood screws or nails to keep To prevent possible SERIOUS INJURY OR DEATH: them unlocked. • Always call for professional B&D garage door service if CAUTION • Remove any ropes connected to garage door. garage door binds, sticks, or is out of balance. -
Page 4: Planning
Planning – Alternate floor mounting of the safety infra-red beam sensors will require hardware not provided. Identify the type and height of your garage door. • Do you have an access door in addition to the Survey your garage area to see if any of the garage door? If not, Model T7012 Emergency conditions below apply to your installation. - Page 5 ONE-PIECE DOOR INSTALLATIONS • The gap between the bottom of the garage door and the floor cannot exceed 6mm. Otherwise, the • Generally, a one-piece door does not require safety reverse system may not work properly. See reinforcement. If your door is lightweight, you can Adjustment Step 3.
-
Page 6: Carton Inventory
Carton Inventory Your garage door opener is packaged in two cartons Hardware for assembly and installation is shown on which contains the motor unit and the parts illustrated the next page. Save the carton and packing material below. If anything is missing, carefully check the until installation and adjustment is complete. -
Page 7: Hardware Inventory
Hardware Inventory Separate all hardware and group as shown below for the assembly and installation procedures. ASSEMBLY Washered Screw 25mm (2) Hex Screw (2) Lock Washer Carriage Bolts (4) Master (mounted in opener) 8mm (2) 8mm (2) 6mm-20 x 13mm Link (2) Lock Nut Trolley Threaded Shaft (1) -
Page 8: Assemble The Rail & Attach The Chain Pulley Bracket
ASSEMBLY STEP 1 Assemble the Rail and Attach the Chain Pulley Bracket To avoid installation difficulties, do not run the garage door opener until instructed to do so. 1. Align the three rail sections on a flat surface exactly as shown. The end sections are identical. HARDWARE SHOWN ACTUAL SIZE Make sure the “arrow label”... -
Page 9: Install The Trolley
ASSEMBLY STEP 2 Inner Nut Install the Trolley Lock Washer • Attach the trolley threaded shaft to the trolley with Spring Trolley Trolley the lock washer and nuts as shown. Threaded Shaft • As a temporary stop, insert a screwdriver into the hole in the front end of the T-rail. -
Page 10: Install Chain & Attach Chain Spreader
WARNING ASSEMBLY STEP 4 Install the Chain & To avoid possible SERIOUS INJURY to fingers from Attach the Chain Spreader moving garage door opener: CAUTION • ALWAYS keep hand clear of sprocket while operating 1. Line up the holes in the chain spreader with the opener. -
Page 11: Set The Chain Tension
ASSEMBLY STEP 5 Nut Ring Set the Chain Tension • Insert a screwdriver tip into one of the nut ring slots and brace it firmly against the trolley. Trolley Threaded Shaft • Place an open end wrench on the square end. Rotate the nut about 1/4 turn clockwise until the spring releases and snaps the nut ring against the Spring/Trolley Nut... -
Page 12: Determine The Header Bracket Location
INSTALLATION STEP 1 Finished Ceiling Vertical Determine the Header Bracket 40mm Centerline Reinforcement Location Header Board Structural Wall Supports Installation procedures vary according to garage door types. Follow the instructions which apply to your door. WARNING WARNING To prevent possible SERIOUS INJURY or DEATH: •... - Page 13 ONE-PIECE DOOR WITHOUT TRACK Unfinished 1. Close the door and mark the inside vertical Ceiling centerline of your garage door. Extend the line 40mm Reinforcement Structural onto the header wall above door, as shown. Board Header Supports Vertical Wall If headroom clearance is minimal, you can install Centerline the header bracket on the ceiling.
-
Page 14: Install The Header Bracket
INSTALLATION STEP 2 Install the Header Bracket You can attach the header bracket either to the wall Wall Mounting Holes above the garage door, or to the ceiling. Follow the instructions which will work best for your particular CEILING MOUNT ONLY The nail hole is for requirements. -
Page 15: Attach The Rail To The Header Bracket
INSTALLATION STEP 3 Attach the Rail to the Header Bracket • Position the opener on the garage floor below the header bracket. Use packing material as a protective base. NOTE: If the door spring is in the way you’ll need help. -
Page 16: Position The Opener
WARNING CAUTION INSTALLATION STEP 4 Position the Opener To prevent damage to garage door, rest garage door opener rail on 25mm board or equivalent placed on top Follow instructions which apply to your door type as section of door. illustrated. SECTIONAL DOOR OR ONE-PIECE DOOR WITH TRACK A 25 mm board laid flat is convenient for setting an... -
Page 17: Hang The Opener
WARNING INSTALLATION STEP 5 Hang the Opener To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to structural CAUTION Two representative installations are shown. Yours supports of the garage. Concrete anchors MUST be used may be different. Hanging brackets should be angled if installing any brackets into masonry. -
Page 18: Install The Wall Control
WARNING WARNING INSTALLATION STEP 6 WARNING CAUTION Install the Door Control To prevent possible SERIOUS INJURY or DEATH from electrocution: Locate the door control within sight of the door at a • Be sure power is not connected BEFORE installing door minimum height of 1.5m where small children cannot control. -
Page 19: Install The Light Globe
INSTALLATION STEP 7 Install the Light Globe and Lens INSTALL THE LIGHT GLOBE • Install a rough service 40 watt maximum light globe in the socket as shown. The light will turn on Light Lens and remain lit for 4-1/2 minutes when power is connected. -
Page 20: Connect Electric Power
WARNING WARNING INSTALLATION STEP 9 Connect Electric Power To prevent possible SERIOUS INJURY or DEATH from electrocution or fire: CAUTION WARNING To avoid installation difficulties, do not run the opener • Be sure power is not connected to the opener, and at this time. -
Page 21: Fasten The Door Bracket
WARNING CAUTION INSTALLATION STEP 11 Fasten Door Bracket To prevent damage to garage door, reinforce inside of door with angle iron both vertically and horizontally. Follow instructions which apply to your door type as illustrated below or on the following page. A horizontal reinforcement brace should be long enough to be secured to 2 vertical supports. - Page 22 ONE-PIECE DOORS Please read and comply with the warnings and reinforcement instructions on the previous page. They apply to one-piece doors also. • Center the door bracket on the top of the door, in line with the header bracket as shown. Mark holes. •...
-
Page 23: Connect Door Arm To Trolley
INSTALLATION STEP 12 Inner Trolley Connect Door Arm to Trolley Outer Trolley Follow instructions which apply to your door type as illustrated below and on the following page. Clevis Pin SECTIONAL DOORS ONLY 8mm x 25mm Ring • Make sure garage door is fully closed. Pull the Fastener emergency release handle to disconnect the outer trolley from the inner trolley. -
Page 24: 114A2558F
ALL ONE-PIECE DOORS Door Assemble the Door Arm: Bracket Ring Fastener Nuts • Fasten the straight and curved door arm sections Lock together to the longest possible length (with a 2 or Washers 3 hole overlap). Straight Clevis Pin • With the door closed, connect the straight door 8mm x 30mm arm section to the door bracket with the Screws... -
Page 25: Adjustment Section
WARNING ADJUSTMENT STEP 1 Adjust the UP and DOWN Travel Without a properly installed safety reversal system, Limits persons (particularly small children) could be CAUTION SERIOUSLY INJURED or KILLED by a closing garage Limit adjustment settings regulate the points at which door. -
Page 26: Adjust The Force
ADJUSTMENT STEP 2 WARNING Adjust the Force Without a properly installed safety reversal system, persons (particularly small children) could be The force, as measured on the closing edge of CAUTION SERIOUSLY INJURED or KILLED by a closing garage the door, should not exceed 150N (15kg). If the door. -
Page 27: Test The Safety Reverse System
WARNING ADJUSTMENT STEP 3 Test the Safety Reverse System Without a properly installed safety reversal system, persons (particularly small children) could be CAUTION SERIOUSLY INJURED or KILLED by a closing garage TEST door. • With the door fully open, place a 40mm board on •... -
Page 28: Operation
OPERATION NING WARNING IMPORTANT SAFETY INSTRUCTIONS TION WARNING To reduce the risk of severe injury or death: 1. READ AND FOLLOW ALL WARNINGS AND 8. If one control (force or travel limits) is adjusted, the INSTRUCTIONS. other control may also need adjustment. 2. -
Page 29: To Open The Door Manually
To Open the Door Manually Care of Your Opener LIMIT AND FORCE ADJUSTMENTS: WARNING WARNING Weather conditions may Limit Controls cause some minor changes in • To prevent possible SERIOUS INJURY or DEATH from a falling garage door: door operation requiring some CAUTION WARNING re-adjustments, particularly... -
Page 30: Troubleshooting
Troubleshooting 9. The door opens but won't close: 1. The opener doesn't operate from either the optional door control or the remote control: • If the opener light blinks, check the safety reversing sensor. • Does the opener have electric power? Plug a lamp into the •... -
Page 31: Programming
PROGRAMMING SPECIFICATIONS Horsepower ....1/2 Rated Pull Force.....800N Below are instructions for programming your opener to operate with remote control transmitters. Motor Type ........Permanent split capacitor Speed ......1500 rpm To Code a Hand-held Remote Volts ........230-240 Volts AC-50Hz Only Control Transmitter Current......2,0 amperes Drive Mechanism USING THE “SMART”... -
Page 32: Warranty
WARRANTY 9. Subject to paragraph 12 hereof; (i) the obligations of B&D under this warranty are limited to those Controll-A-Door Automatic Garage Door Opener contained herein and such warranties are expressly in lieu of all other warranties, express or implied, including any implied warranty 1.
