CS331-C246/Q370

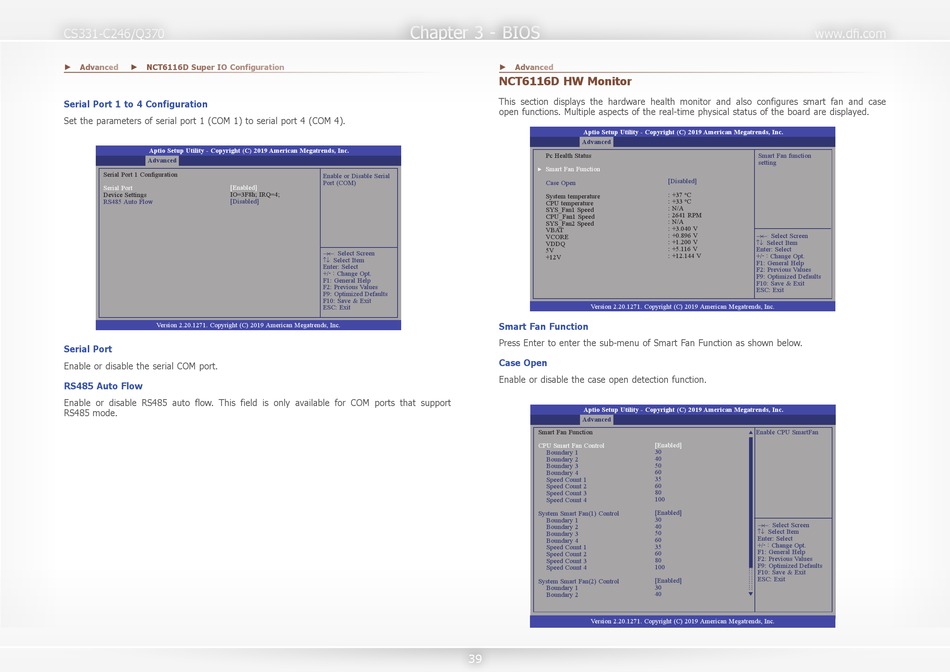

► Advanced ► NCT6116D Super IO Configuration
Serial Port 1 to 4 Configuration
Set the parameters of serial port 1 (COM 1) to serial port 4 (COM 4).
Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc.
Advanced
Serial Port 1 Configuration
[Enabled]
Serial Port
IO=3F8h; IRQ=4;
Device Settings
RS485 Auto Flow [Disabled]
Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc.
Serial Port
Enable or disable the serial COM port.
RS485 Auto Flow
Enable or disable RS485 auto flow. This field is only available for COM ports that support
RS485 mode.
Chapter 3 - BIOS
► Advanced

NCT6116D HW Monitor

This section displays the hardware health monitor and also configures smart fan and case
open functions. Multiple aspects of the real-time physical status of the board are displayed.
Enable or Disable Serial
Port (COM)
Select Screen
→←:
Select Item
↑↓:
Enter: Select
+/ - : Change Opt.
F1: General Help
F2: Previous Values
F9: Optimized Defaults
F10: Save & Exit
ESC: Exit
Smart Fan Function
Press Enter to enter the sub-menu of Smart Fan Function as shown below.
Case Open
Enable or disable the case open detection function.
39
Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc.
Advanced
Pc Health Status
Smart Fan Function

[Disabled]
Case Open
: +37 C
o
System temperature
: +33 C
o
CPU temperature
: N/A
SYS_Fan1 Speed
: 2641 RPM
CPU_Fan1 Speed
: N/A
SYS_Fan2 Speed
: +3.040 V
VBAT
: +0.896 V
VCORE
: +1.200 V
VDDQ
: +5.116 V
5V
: +12.144 V
+12V
Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc.
Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc.
Advanced
Smart Fan Function
CPU Smart Fan Control [Enabled]
Boundary 1 30
40
Boundary 2
50
Boundary 3
Boundary 4 60
Speed Count 1 35
60
Speed Count 2
80
Speed Count 3
100
Speed Count 4
[Enabled]
System Smart Fan(1) Control
30
Boundary 1
40
Boundary 2
Boundary 3 50
Boundary 4 60
35
Speed Count 1
60
Speed Count 2
Speed Count 3 80
Speed Count 4 100
[Enabled]
System Smart Fan(2) Control
30
Boundary 1
Boundary 2 40
Version 2.20.1271. Copyright (C) 2019 American Megatrends, Inc.
