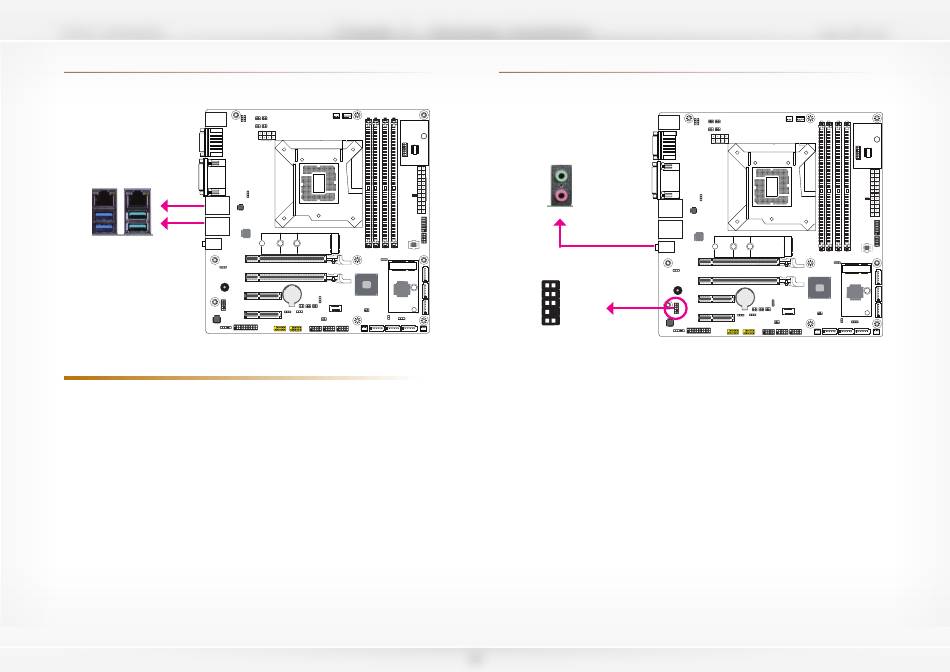

► Rear Panel I/O Ports
RJ45 LAN Ports
LAN 1
LAN 2
LAN 1
LAN 2
Features
•
1 Intel
I211AT PCIe
®
•
1 Intel
I219LM PCIe with iAMT12.0
®
The LAN ports allow the system board to connect to a local area network by means of a net-
work hub.
BIOS Setting
Configure the onboard LAN ports in the Chipset menu ("PCH-IO Configuration" submenu) of
the BIOS. Refer to the chapter 3 for more information.
Driver Installation
Install the LAN drivers. Refer to the chapter 4 for more information.
Chapter 2 - Hardware Installation
I C
► Rear Panel I/O Ports
Audio
Line-out
Mic-in
Rear Audio
1
2
GND
Mic2-L
NC
Front
Mic2-R
Audio
Mic2-JD
Line2-R
GND
Line2-L
Line2-JD
9
10
Rear Audio
The system board is equipped with 2 audio jacks (Line-out and Mic-in). Line-in jack is available
upon request. A jack is a one-hole connecting interface for inserting a plug.
•
Optional Line-in Jack (Light Blue)
This jack is used to connect any audio devices such as Hi-fi set, CD player, tape player,
AM/FM radio tuner, synthesizer, etc.
•
Line-out Jack (Lime)
This jack is used to connect a headphone or external speakers.
•
Mic-in Jack (Pink)
This jack is used to connect an external microphone.
Front Audio
The front audio connector allows you to connect to the second line-out and mic-in jacks that
are at the front panel of your system.
BIOS Setting
Configure these Audio devices in the Chipset menu ("PCH-IO Configuration" submenu) of the
BIOS. Refer to the chapter 3 for more information.
Driver Installation
Install the audio driver. Refer to the chapter 4 for more information.
