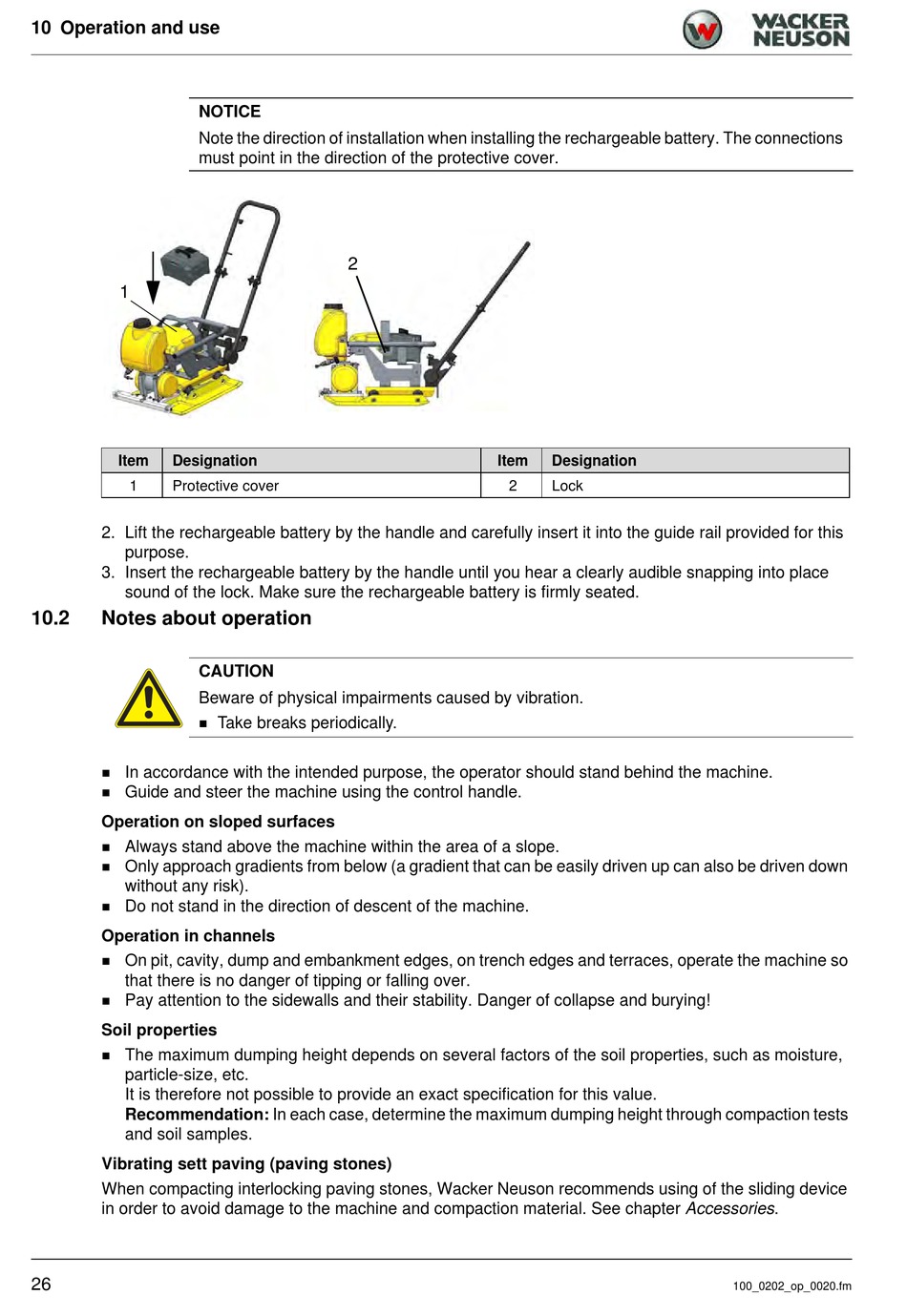

Notes About Operation - Wacker Neuson AP1840 Series Operator's Manual

10 Operation and use
NOTICE
Note the direction of installation when installing the rechargeable battery. The connections
must point in the direction of the protective cover.
1
Item Designation
1 Protective cover
2. Lift the rechargeable battery by the handle and carefully insert it into the guide rail provided for this
purpose.
3. Insert the rechargeable battery by the handle until you hear a clearly audible snapping into place
sound of the lock. Make sure the rechargeable battery is firmly seated.
10.2

Notes about operation

CAUTION
Beware of physical impairments caused by vibration.

In accordance with the intended purpose, the operator should stand behind the machine.

Guide and steer the machine using the control handle.

Operation on sloped surfaces
Always stand above the machine within the area of a slope.

Only approach gradients from below (a gradient that can be easily driven up can also be driven down

without any risk).
Do not stand in the direction of descent of the machine.

Operation in channels
On pit, cavity, dump and embankment edges, on trench edges and terraces, operate the machine so

that there is no danger of tipping or falling over.
Pay attention to the sidewalls and their stability. Danger of collapse and burying!

Soil properties
The maximum dumping height depends on several factors of the soil properties, such as moisture,

particle-size, etc.
It is therefore not possible to provide an exact specification for this value.
Recommendation: In each case, determine the maximum dumping height through compaction tests
and soil samples.
Vibrating sett paving (paving stones)
When compacting interlocking paving stones, Wacker Neuson recommends using of the sliding device
in order to avoid damage to the machine and compaction material. See chapter Accessories.
26
2
Take breaks periodically.
Item Designation
2 Lock
100_0202_op_0020.fm
