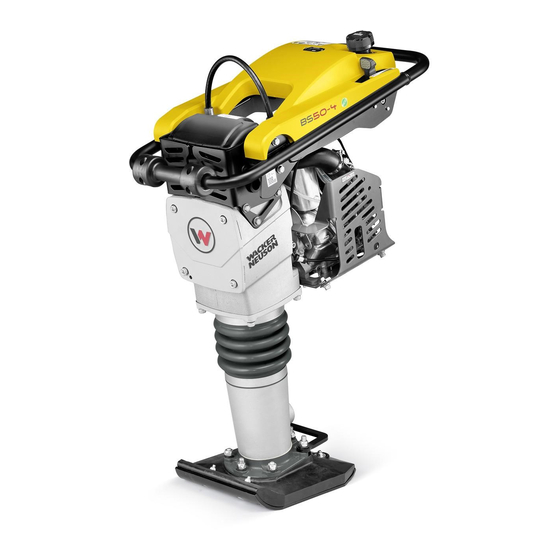

Wacker Neuson BS 50-4 Operator's Manual
Rammer
Hide thumbs
Also See for BS 50-4:
- Repair manual (126 pages) ,
- Operator's manual (52 pages) ,
- Operator's manual (50 pages)
Subscribe to Our Youtube Channel
Related Manuals for Wacker Neuson BS 50-4
Summary of Contents for Wacker Neuson BS 50-4
- Page 1 0158431en 1106 Rammer BS 50-4 BS 50-4s OPERATOR’S MANUAL...
-
Page 3: Table Of Contents
BS 50-4 Table of Contents Foreword Emission Control System Information Safety Information Operating Safety ................12 Operator Safety while using Internal Combustion Engines ....14 Service Safety ..................15 Label Locations .................. 16 Safety Labels ..................17 Operating Labels ................20 Technical Data Rammer .................... - Page 4 Table of Contents BS 50-4 Maintenance Periodic Maintenance Schedule ............29 Servicing Air Cleaner ................30 Engine Oil ....................31 Lubrication ...................32 Shoe Hardware ...................33 Long-Term Storage ................33 Transportation ..................34 Troubleshooting ...................35 wc_bo0158431en_006TOC.fm...
-
Page 5: Foreword
CALIFORNIA Proposition 65 Warning: Engine exhaust, some of its constituents, and certain vehicle components, contain or emit chemicals known to the State of WARNING California to cause cancer and birth defects or other reproductive harm. Foreword This manual provides information and procedures to safely operate and maintain this Wacker model. -
Page 6: Emission Control System Information
Emission Control System Information WM 90 Emission Control System Information Source of Emissions The combustion process produces carbon monoxide, oxides of nitrogen, and hydrocarbons. Control of hydrocarbons and oxides of nitrogen is very important because, under certain conditions, they react to form photochemical smog when subjected to sunlight. Carbon monoxide does not react in the same way, but it is toxic. - Page 7 WM 90 Emission Control System Information Replacement Parts The emission control systems on your Wacker engine were designed, built, and certified to conform with EPA and California emissions regulations. We recommend the use of genuine Wacker parts whenever you have maintenance done. These original-design replacement parts are manufactured to the same standards as the original parts, so you can be confident of their performance.
- Page 8 Emission Control System Information WM 90 METHANOL - (methyl or wood alcohol) 5% by volume. You may use gasoline containing up to 5% methanol by volume, as long as it contains cosolvents and corrosion inhibitors to protect the fuel system. Gasoline containing more than 5% methanol by volume may cause starting and/or performance problems.
- Page 9 WM 90 Emission Control System Information EMISSIONS COMPONENT DEFECT WARRANTY COVERAGE This emission warranty is applicable in all States. Wacker Corporation, N92 W15000 Anthony Avenue, Menomonee Falls, WI 53051-1504, (herein "Wacker") warrant(“s”) to the initial retail purchaser and each subsequent owner, that this non-road engine (herein "engine") has been designed, built, and equipped to conform at the time of initial sale to all applicable regulations of the U.S.
- Page 10 Emission Control System Information WM 90 PARTS COVERED Listed below are the parts covered by the Emission Components Defect Warranty. Some of the parts listed below may require scheduled maintenance and are warranted up to the first scheduled replacement point for that part. (1) Fuel Metering System (i) Carburetor and internal parts (and/or pressure regulator or fuel injection system).
- Page 11 WM 90 Emission Control System Information OBTAINING WARRANTY SERVICE To obtain warranty service, take your engine to the nearest authorized Wacker service dealer. Bring your sales receipts indicating date of purchase for this engine. The service dealer authorized by Wacker will perform the necessary repairs or adjustments within a reasonable amount of time and furnish you with a copy of the repair order.
- Page 12 Emission Control System Information WM 90 THINGS YOU SHOULD KNOW ABOUT THE EMISSION CONTROL SYSTEM WARRANTY: MAINTENANCE AND REPAIRS You are responsible for the proper maintenance of the engine. You should keep all receipts and maintenance records covering the performance of regular maintenance in the event questions arise. These receipts and maintenance records should be transferred to each subsequent owner of the engine.
-
Page 13: Safety Information
BS 50-4 Safety Information Safety Information This manual contains DANGER, WARNING, CAUTION, and NOTE callouts which must be followed to reduce the possibility of personal injury, damage to the equipment, or improper service. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. -
Page 14: Operating Safety
Safety Information BS 50-4 Operating Safety Familiarity and proper training are required for the safe operation of equipment. Equipment operated improperly or by untrained personnel can be dangerous. Read the operating instructions contained in both WARNING this manual and the engine manual and familiarize yourself with the location and proper use of all controls. - Page 15 BS 50-4 Safety Information 3.1.18 ALWAYS guide the rammer in such a way that the operator is not squeezed between the rammer and solid objects. Special care is required when working on uneven ground or when compacting coarse material. Make sure to stand firmly when operating the machine under such conditions.
-
Page 16: Operator Safety While Using Internal Combustion Engines
Safety Information BS 50-4 Operator Safety while using Internal Combustion Engines Internal combustion engines present special hazards during operation and fueling. Read and follow the warning instructions in the engine owner’s manual and the safety guidelines below. Failure to follow the DANGER warnings and safety guidelines could result in severe injury or death. -
Page 17: Service Safety
BS 50-4 Safety Information Service Safety Poorly maintained equipment can become a safety hazard! In order for the equipment to operate safely and properly over a long period of time, periodic maintenance and occasional repairs are necessary. WARNING 3.3.1 DO NOT attempt to clean or service the machine while it is running. -
Page 18: Label Locations
Safety Information BS 50-4 Label Locations wc_si000117gb.fm... -
Page 19: Safety Labels
BS 50-4 Safety Information Safety Labels Wacker machines use international pictorial labels where needed. These labels are described below: Label Meaning This molded-in label contains important safety and operating information. If it becomes illegible, the cover must be replaced. Refer to the Parts Book for ordering information. - Page 20 Safety Information BS 50-4 Label Meaning CAUTION! Use only clean, filtered gasoline fuel. WARNING! Hot surface! WARNING! Serious injury if struck by compressed spring or cover. If the spring system cover is removed improperly, the springs can eject. For optimal control, performance, and minimal hand/arm vibration, grasp handle as shown.
- Page 21 BS 50-4 Safety Information Label Meaning A nameplate listing the model number, item number, revision number, and serial number is attached to each unit. Please record the information found on this plate so it will be available should the nameplate become lost or damaged.
-
Page 22: Operating Labels
Safety Information BS 50-4 Operating Labels Wacker machines use international pictorial labels where needed. These labels are described below: Label Meaning Turn the engine switch to the ON position. Close the choke. Pull the rewind starter. Open the choke. Turn the engine switch to "OFF". - Page 23 BS 50-4 Safety Information Label Meaning Throttle control lever: Turtle = Idle or Slow Rabbit = Full or Fast Fuel valve: Closed Open Engine stop button: Press to stop engine. Choke: 0 = Open l = Closed This rammer is equipped with a low oil shutoff switch, it will not allow the engine to operate unless a sufficient amount of oil is present.
-
Page 24: Technical Data
Technical Data BS 50-4 Technical Data Rammer Item Number: BS 50-4 BS 50-4s 0009386, 0620077 0620071, 0620078 0620108 Rammer Engine Model type WM90 Engine Speed - full 4300 ± 100 Engine Speed - idle 2000 ± 100 Clutch Engagement 2500 ± 100... -
Page 25: Sound Measurements
BS 50-4 Technical Data Sound Measurements Products are tested for sound pressure level in accordance with EN ISO 11204. Sound power level is tested in accordance with European Directive 2000/14/EC - Noise Emission in the Environment by Equipment for use outdoors. -
Page 26: Operation
Operation BS 50-4 Operation Application Rammers are designed to compact loose soils and gravel to prevent settling and to provide a firm, solid base for the placement of footings, concrete slabs, foundations, and other structures. Recommended Fuel This engine is certified to operate on automotive unleaded gasoline. -
Page 27: To Stop
BS 50-4 Operation Note: First time use, engines recently serviced, run out of fuel or not used for long periods of time may need the rope to be pulled more times to move fuel to the carburetor. 5.4.6 Open choke (b2) on the carburetor as the engine warms up. -
Page 28: Low Oil Shutoff Switch (If Equipped)
Operation BS 50-4 Low Oil Shutoff Switch (if equipped) The low oil shutoff switch is designed to prevent engine damage caused by an insufficient amount of oil. When starting the machine: • if the warning light flashes quickly once, this indicates the engine oil level is acceptable. -
Page 29: Proper Operation
BS 50-4 Operation Proper Operation See Graphic: wc_gr002612, wc_gr001455 Keep vibratory rammer clean and dry. Avoid no-load strokes. Never allow the rammer to run full throttle when forcing away material or when lifting the equipment. For optimal control, performance, and minimal hand/arm vibration, grasp handle as shown. -
Page 30: Proper Compaction
Operation BS 50-4 Proper Compaction See Graphic: wc_gr000045 5.8.1 Run rammer at the full throttle position (a4) for maximum performance. 5.8.2 Guide rammer with its handle. Allow machine to pull itself forward. DO NOT try to over-power the machine. 5.8.3 For best compaction, the shoe must hit the ground flat (b), not on its toe or heel. -
Page 31: Maintenance
BS 50-4 Maintenance Maintenance Periodic Maintenance Schedule Maintenance, replacement, or repair of the emission control devices and systems may be performed by any non-road engine repair establishment or individual. Every Every Every Daily After week month 3 months Every before... -
Page 32: Servicing Air Cleaner
Maintenance BS 50-4 Servicing Air Cleaner See Graphic: wc_gr001306 NEVER use gasoline or other types of low flash point solvents for cleaning the air filter. A fire or explosion could result. WARNING CAUTION: NEVER run engine without main paper air cleaner (b). -
Page 33: Engine Oil
BS 50-4 Maintenance Engine Oil See Graphic: wc_gr002431 6.3.1 Drain oil while engine is still warm. Note: In the interests of environmental protection, place a plastic sheet and a container under the machine to collect any liquid which drains off. Dispose of this liquid in accordance with environmental protection legislation. -
Page 34: Lubrication
Maintenance BS 50-4 Lubrication See Graphic: wc_gr001456 Ramming system Check oil level: 6.4.1 Place the rammer so it is resting on its shoe on a level surface. 6.4.2 Check the oil level through oil sightglass (d). Proper ramming system lubrication is indicated when approximately 1/2–3/4 of the sightglass is full. -
Page 35: Shoe Hardware
BS 50-4 Maintenance Shoe Hardware See Graphic: wc_gr000048 On new machines, or after replacing shoe, check and tighten shoe hardware (a) after the first 5 hours of operation. Inspect hardware every week thereafter. Torque hardware as specified. 8 6 N m ( 6 3 f t . -
Page 36: Transportation
Maintenance BS 50-4 Transportation See Graphic: wc_gr001457 6.7.1 Always shut off engine and close fuel valve when transporting machine. 6.7.2 Make sure lifting device has enough capacity to hold machine (see identification plate on machine for weight). 6.7.3 Use central lifting point (a) when lifting machine. -
Page 37: Troubleshooting
BS 50-4 Maintenance Troubleshooting Problem / Symptom Reason / Remedy Engine does not start, or • No fuel in tank. stalls. • Check engine oil level. • Spark plug fouled. • Fuel valve closed. • Engine switch is in the “OFF” position. - Page 38 Maintenance BS 50-4 Problem / Symptom Reason / Remedy On machines equipped with • Check the switch for proper wire connections. the low oil shutoff switch, the • Switch is not functioning properly. Replace the engine starts and continues to switch.
- Page 39 Pilonneuses Vibrantes Type - Typ - Tipo - Type BS 50-4, BS 60-4 Item number of equipment / Artikelnummer / Número de referencia de la máquina / Numéro de référence du matériel : 0009386, 0620108, 0620071, 0620078, 0009340, 0620000, 0620051, 0620109, 0620110, 0620072, 0620073, 0620074, 0620077 Net installed power / absolute installierte Leistung / Potencia instalada neta / Puissance installée nette :...
- Page 40 Wacker Construction Equipment AG · Preußenstraße 41 · D-80809 München · Tel.: +49-(0)89-3 54 02 - 0 · Fax: +49 - (0)89-3 54 02-3 90 Wacker Corporation · P.O. Box 9007 · Menomonee Falls, WI 53052-9007 · Tel. : (262) 255-0500 · Fax: (262) 255-0550 · Tel. : (800) 770-0957 Wacker Asia Pacific Operations ·...
Need help?
Do you have a question about the BS 50-4 and is the answer not in the manual?
Questions and answers
Engine runs fine while idling, but when it is accelerated it continues to run for a few seconds and then shuts off. What causes this?
A Wacker Neuson BS 50-4 engine may shut off after accelerating due to a low engine oil level. If the engine is equipped with a low oil shutoff switch, it will stop running shortly after starting if the oil level is insufficient.
This answer is automatically generated
