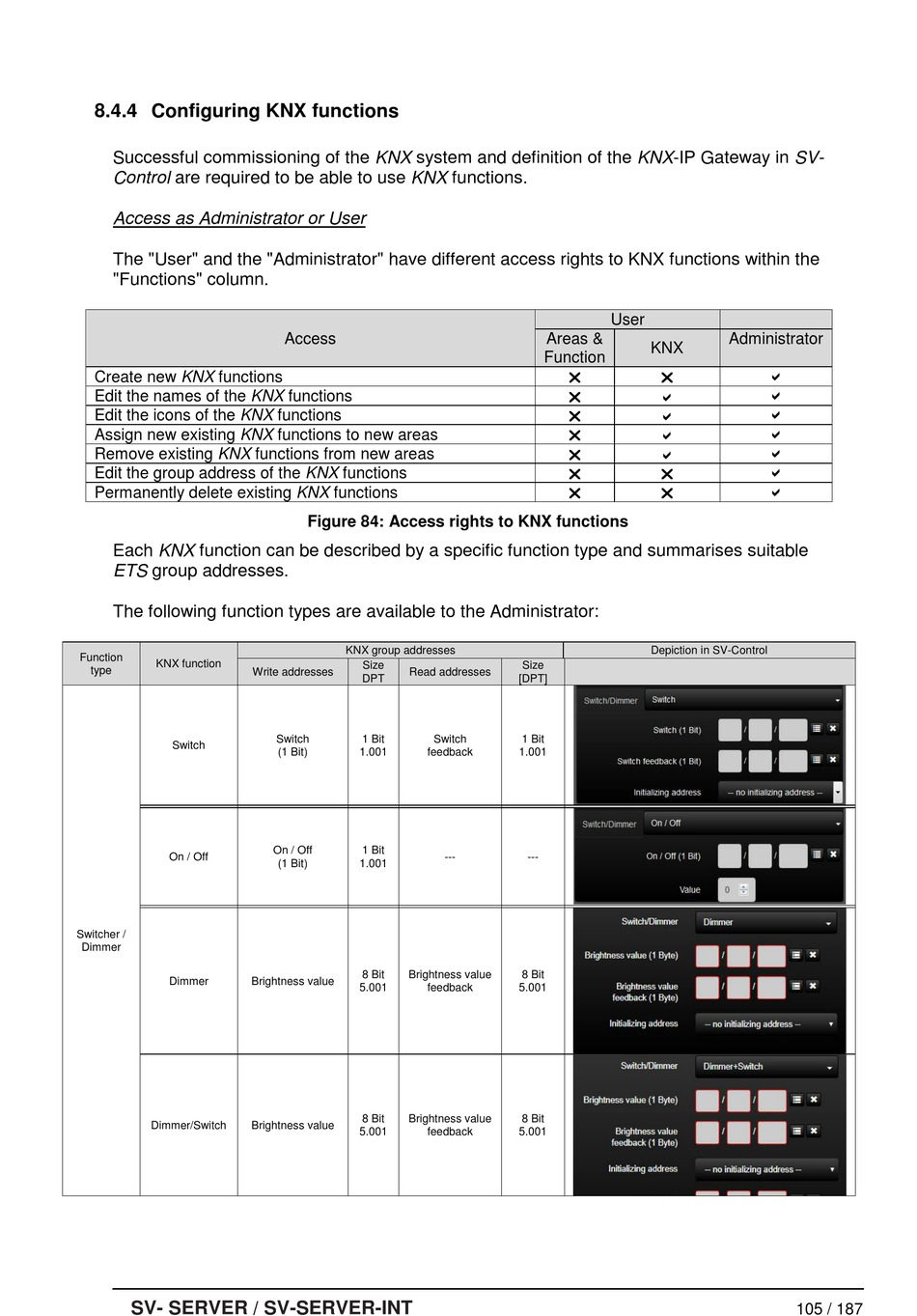

8.4.4 Configuring KNX functions

Successful commissioning of the KNX system and definition of the KNX-IP Gateway in SV-
Control are required to be able to use KNX functions.
Access as Administrator or User
The "User" and the "Administrator" have different access rights to KNX functions within the
"Functions" column.
Create new KNX functions
Edit the names of the KNX functions
Edit the icons of the KNX functions
Assign new existing KNX functions to new areas
Remove existing KNX functions from new areas
Edit the group address of the KNX functions
Permanently delete existing KNX functions
Each KNX function can be described by a specific function type and summarises suitable
ETS group addresses.
The following function types are available to the Administrator:
Function
KNX function
type
Switch
On / Off
Switcher /
Dimmer
Dimmer
Dimmer/Switch
SV- SERVER / SV-SERVER-INT
Access
Figure 84: Access rights to KNX functions
KNX group addresses
Size
Write addresses
Read addresses
DPT
Switch
1 Bit
(1 Bit)
1.001
On / Off
1 Bit
(1 Bit)
1.001
8 Bit
Brightness value
Brightness value
5.001
8 Bit
Brightness value
Brightness value
5.001
Areas &
Function







Size
[DPT]
Switch
1 Bit
feedback
1.001
---
---
8 Bit
feedback
5.001
8 Bit
feedback
5.001
User
Administrator
KNX














Depiction in SV-Control
105 / 187
