2. Introduction
The Flatpack2 power core consists of a 1U control and distribution panel and a 1U
rectifier shelf. Systems using the Flatpack2 -48V 150A design are ideal for sites
with minimum available floor space. The compact size of this system allows more
space for additional telecom equipment even within the same rack. This system is
mounted in a standard 19" or 23" telecommunications equipment rack.
standard system configuration accommodates up to four (4) -48VDC Flatpack2 and
Flatpack2 HE rectifiers, providing a total power output of 8kW.
Smartpack Controller
Figure 1 -
About This Guide
This manual provides a comprehensive overview of and installation guidelines for
the Flatpack2 -48V 150A power system. Additional information regarding
system components may be found in the following documents:
350002.013: User's Guide—Flatpack2 Rectifiers
o
350003.013: User's Guide—Smartpack Monitoring & Control Unit
o
About This Revision (2)
A new document format was adopted for this revision to reflect the transition to
the Eltek Valere brand. In addition, information from the Flatpack2 -48V 150A
Technical Bulletin (2033953) was incorporated into this manual.
Installation Guide Flatpack2 -48V 150A ~ 2029242 R2, May 2008

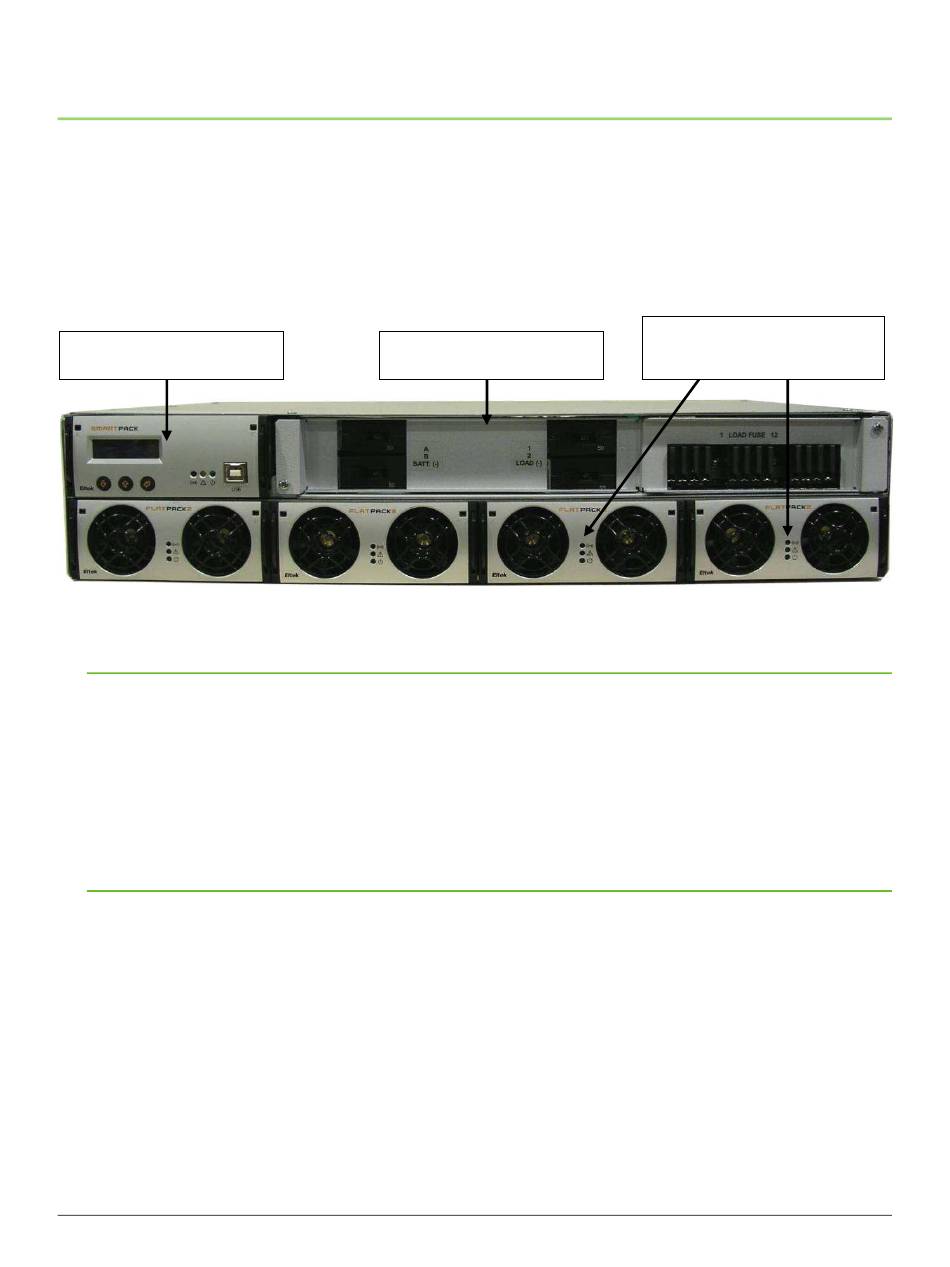

Distribution Section
Flatpack2 -48V 150A
Flatpack2 Rectifier Slots
System (2B 2L GMT shown)
The
(4)
7
