Load Returns
Configurations
Configurations for the Flatpack2 -48V 150A system are defined by the number of
breaker positions provided for batteries and load equipment. The following are
common configurations:
Two Battery, Two Load (2B 2L)
The two leftmost breaker position sets are populated, and the rightmost bus
set is not installed in the "2B 2L" configuration.
Load 1
Load 2
Installation Guide Flatpack2 -48V 150A ~ 2029242 R2, May 2008

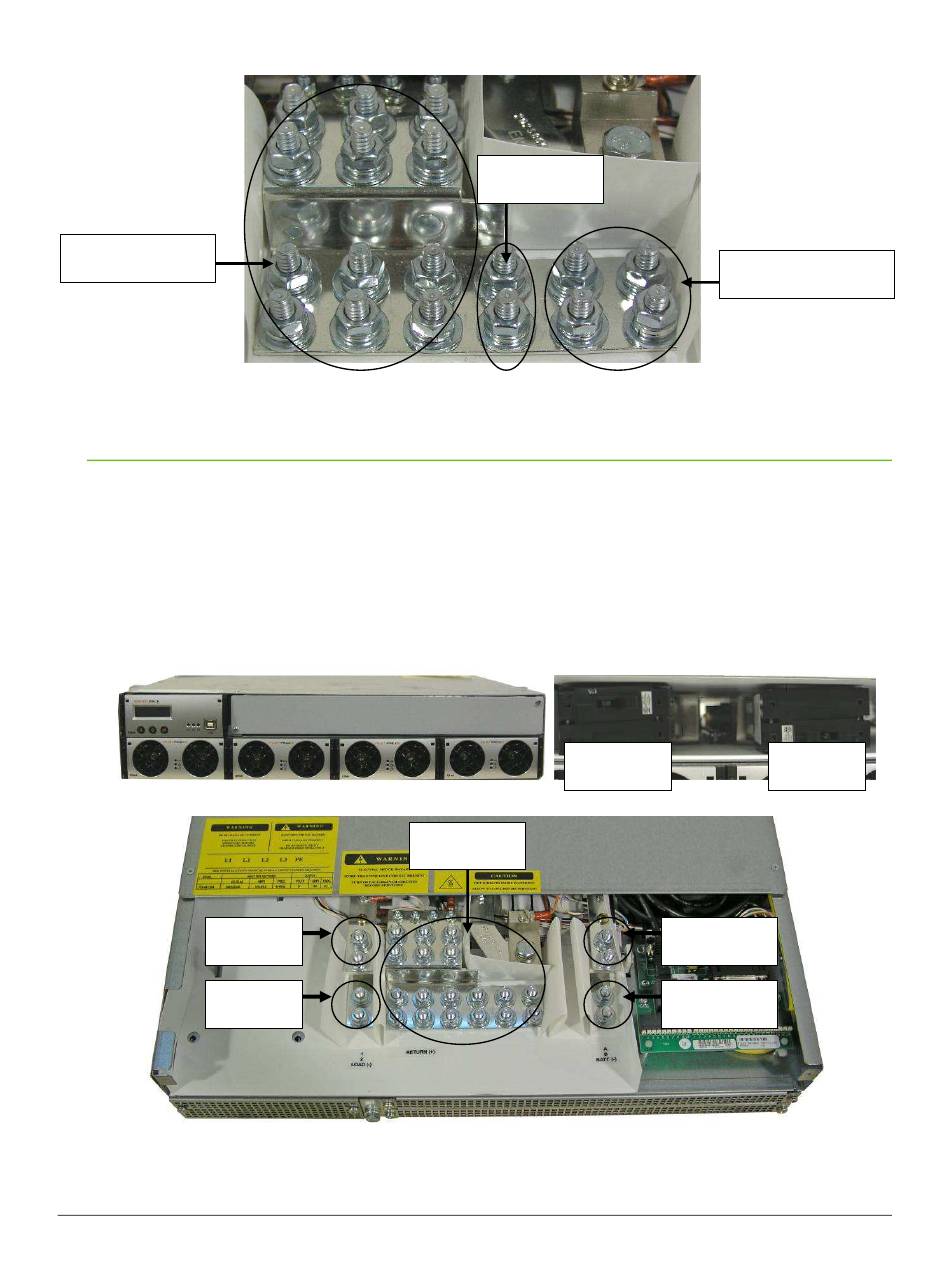

Figure 8 - Recommended Return Bus Organization
Returns
CO Ground
Battery
Battery Returns
Load
Battery A
Battery B
15
