Eltek Valere Flatpack2 Installation Manual page 19

Indicator
fuse (GMT)
TPS Fuse
Holder
NOTE: If breakers or fuse-holders are not installed in the correct orientation,
the alarm may not signal properly when a device opens.
To install plug-in breakers or fuse-holders for LOAD:
1) Remove the two screws holding the front cover in place using a Phillips
screwdriver.
2) Orient the "LINE" and "LOAD" bullets to the correct bus. The leftmost
breaker set (next to the Smartpack controller) has LINE to the right
and LOAD to the left; the actuator turns ON to the left. The other
positions have LINE to the left and LOAD to the right; the actuator
turns ON to the right.
To install plug-in breakers or fuse-holders for BATTERY (if used):
1) Connect the battery alarm wire to the device's normally closed (NC)
alarm pin.
2) Orient the "LINE" and "LOAD" bullets to the correct bus. The battery
breaker set (next to the Smartpack controller) has LINE bus to the right
and its LOAD bus to the left; the actuator turns ON to the left.
Securely insert device into the receptacles.
3) Remove fuses and turn breaker actuators OFF until system turn-up.
Battery Breaker
Alarm Wires

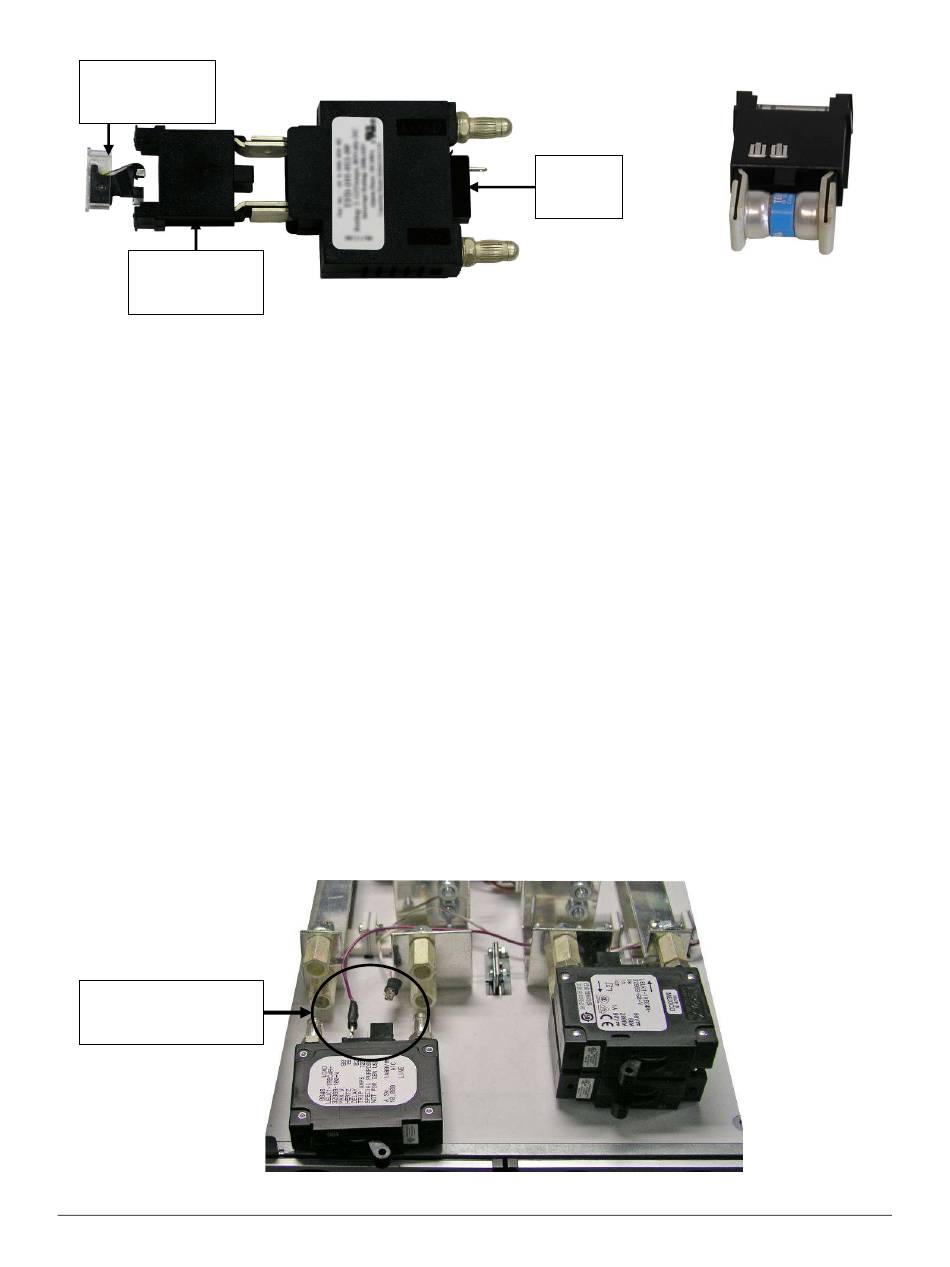

Figure 12 - Proper Battery Breaker Orientation and Alarm Connection
Installation Guide Flatpack2 -48V 150A ~ 2029242 R2, May 2008
Plug-in
Module
19
