Load Connections

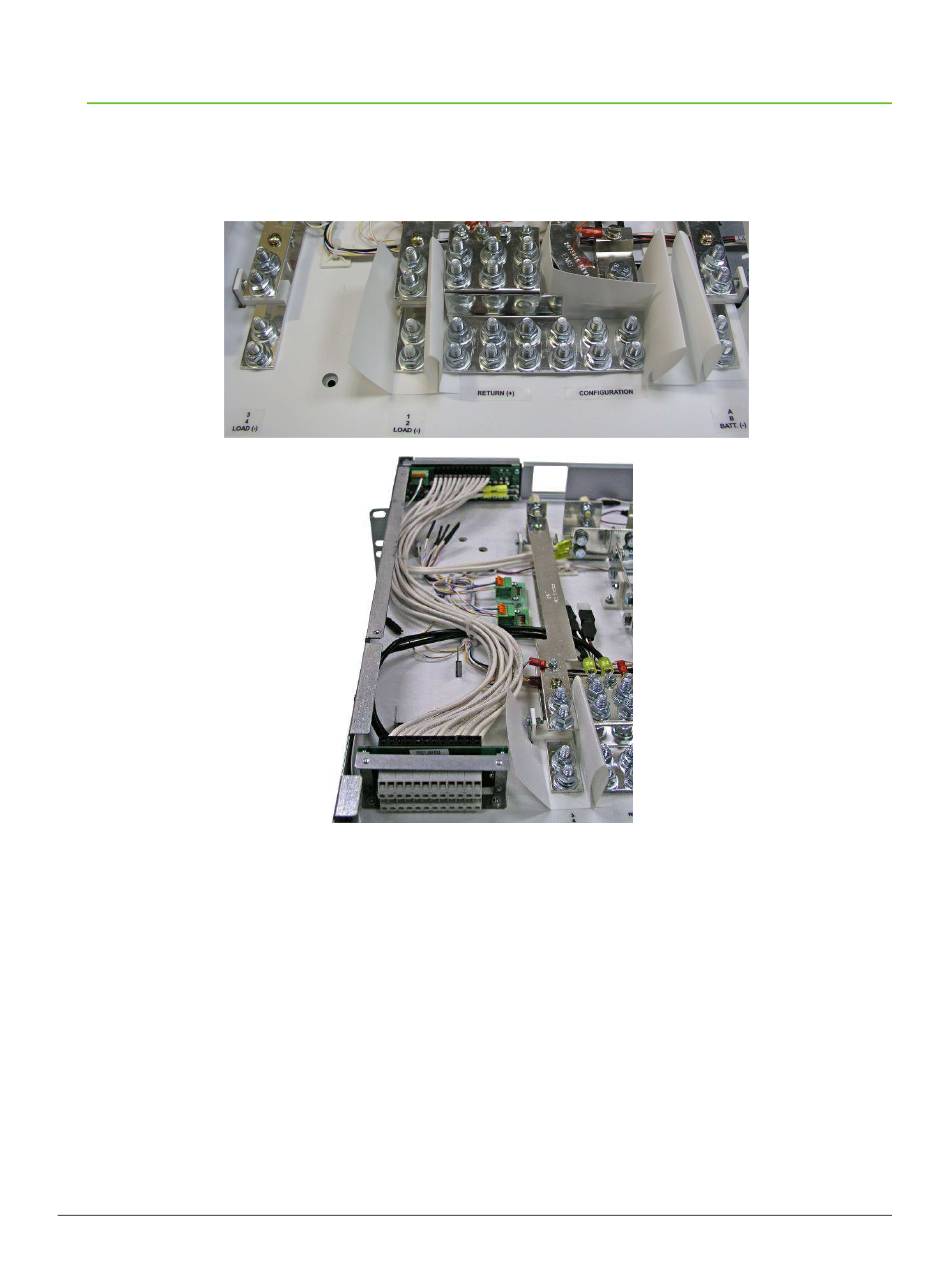

DC load output in the Flatpack2 -48V 150A system features a variety of
configurations. If configured for load output, the system can have two, four, or
six load busses. The two parallel buses farthest to the left (when viewed from
the rear of the system) can be substituted for a 12-position, 65A GMT fuse block.
21
Installation Guide Flatpack2 -48V 150A ~ 2029242 R2, May 2008
