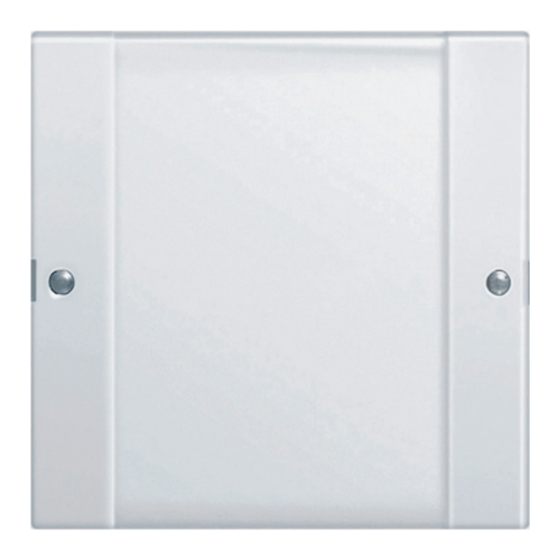

Push button sensor 3 basic 1-gang, push button sensor 3 basic 2-gang (1+1), push button sensor 3 basic 3-gang
Hide thumbs Also See for 5112 00:
Table of Contents

Advertisement

Quick Links

Download this manual
KNX
Product documentation
Issue:
06.08.2015
628x1220
Push button sensor 3 basic 1-gang
Push button sensor 3 basic 2-gang (1+1)
Push button sensor 3 basic 3-gang
Order No. 5111 00
Order No. 5112 00
Order No. 5113 00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5112 00 and is the answer not in the manual?

Questions and answers

Related Manuals for Gira 5112 00

Summary of Contents for Gira 5112 00

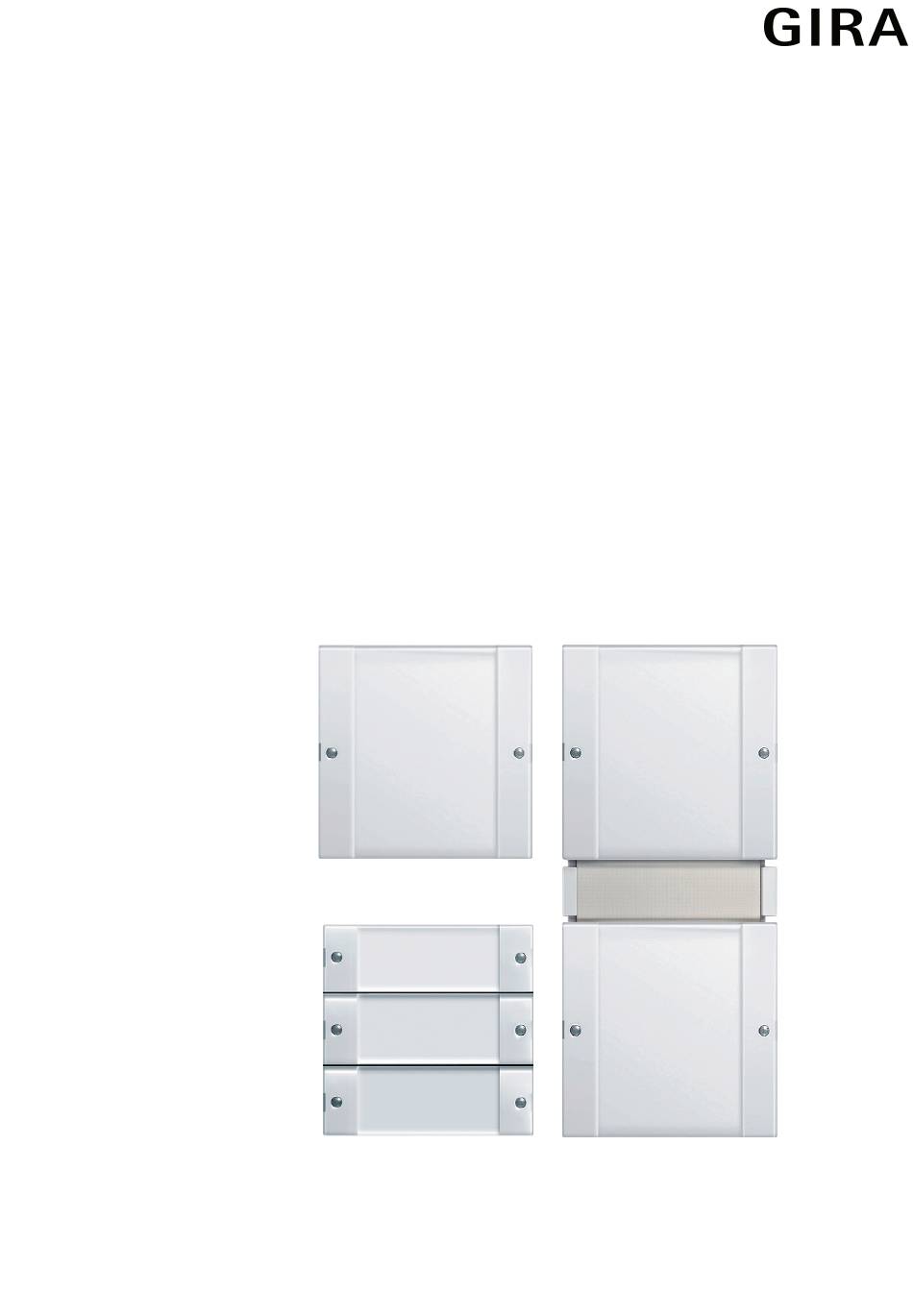

  • Page 1 Product documentation Issue: 06.08.2015 628x1220 Push button sensor 3 basic 1-gang Push button sensor 3 basic 2-gang (1+1) Push button sensor 3 basic 3-gang Order No. 5111 00 Order No. 5112 00 Order No. 5113 00...

  • Page 2: Table Of Contents

    Software "Push button sensor 3 basic" ................. 4.2.1 Scope of functions ....................4.2.2 Notes on software ....................4.2.3 Object table ......................4.2.4 Parameters ......................Appendix ..........................Index ..........................Order No. 5111 00 Page 2 of 23 Order No. 5112 00 Order No. 5113 00...

  • Page 3: Product Definition

    Design: UP (concealed) Order No. 5111 00 / 5112 00 / 5113 00 1.2 Function When its buttons are pushed, the push button sensor basic sends telegrams to the KNX / EIB, depending on the parameter settings in the loaded application program. These can be, for instance, telegrams for switching or pushbutton control, for dimming or for controlling blinds.

  • Page 4: Accessories

    Order No. 1127 00 Rocker set 1-gang Order No. 2131 .. Rocker set 2-gang Order No. 2132 .. Rocker set 3-gang Order No. 2133 .. Order No. 5111 00 Page 4 of 23 Order No. 5112 00 Order No. 5113 00...

  • Page 5: Installation, Electrical Connection And Operation

    A minimum distance of at least 4 mm must be maintained between bus conductors and mains voltage cores. The device may not be opened or operated outside the technical specifications. Order No. 5111 00 Page 5 of 23 Order No. 5112 00 Order No. 5113 00...

  • Page 6: Device Components

    Neutral inscription panels are included with the devices as part of the scope of supply. If necessary, individual labels can be created using optionally available labelling sheets (see Accessories) and labelling software, or on the Internet at marking.gira.com. Order No. 5111 00 Page 6 of 23 Order No.

  • Page 7: Fitting And Electrical Connection

    If necessary, label the inscription signs. Optionally the separately available labelling sheets (see Accessories) can be used. Finally, mount the rocker covers together with the labelling panel by snapping them on. Order No. 5111 00 Page 7 of 23 Order No. 5112 00 Order No. 5113 00...
  • Page 8 (9) Screw and anchor set for mechanical fastening and for anti-theft protection (included with the pushbutton sensor cover) (10) Inscription panel (11) Rocker cover Order No. 5111 00 Page 8 of 23 Order No. 5112 00 Order No. 5113 00...
  • Page 9 Finally, mount the rocker covers together with the labelling panel by snapping them on. i Before final fitting of the rocker covers, the physical address has to be loaded into the device (see page 10). Order No. 5111 00 Page 9 of 23 Order No. 5112 00 Order No. 5113 00...

  • Page 10: Commissioning

    If the device was programmed with incorrect application data, then backlighting of the labelling field flashes slowly. In this case, the device will not function after start-up. Order No. 5111 00 Page 10 of 23 Order No. 5112 00 Order No. 5113 00...

  • Page 11: Operation

    The labelling field illumination of the pushbutton sensor can be permanently on or off. Furthermore, slow flashing of the labelling field illumination indicates an incorrectly loaded application program or an unprogrammed state as supplied. Order No. 5111 00 Page 11 of 23 Order No. 5112 00 Order No. 5113 00...

  • Page 12: Technical Data

    Rated voltage DC 21 ... 32 V SELV (Via bus coupler 3) Power consumption typical 150 mW (Via bus coupler 3) Connection mode 10 pole male connector strip Order No. 5111 00 Page 12 of 23 Order No. 5112 00 Order No. 5113 00...

  • Page 13: Software Description

    Version from mask version Basic pushbutton sensor application Push button sensor with 3 control surfaces. 3 basic 3-gang for ETS3.0 10D311 version d onwards Order No. 5111 00 Page 13 of 23 Order No. 5112 00 Order No. 5113 00...

  • Page 14: Software "Push Button Sensor 3 Basic

    Time between short-time and long-time commands can be set. "Value transmitter" and "Scene extension" functions: Rocker function Command on pressing the rocker configurable (values 0...255 / 0...100 % or scene numbers). Order No. 5111 00 Page 14 of 23 Order No. 5112 00 Order No. 5113 00...

  • Page 15: Notes On Software

    Plugging the pushbutton sensor onto a flush-mounted bus coupling unit 1 or 2 (older generation) is not possible in some cases, and generally not intended, and as a result the device combination will not function. Order No. 5111 00 Page 15 of 23 Order No. 5112 00 Order No. 5113 00...

  • Page 16: Object Table

    1-bit object for long-time operation of a blind or roller shutter. 1: The number of rockers or buttons depends on the planned device variant. Order No. 5111 00 Page 16 of 23 Order No. 5112 00 Order No. 5113 00...
  • Page 17 C, -, T Description 1-byte object for recalling or for storing a scene. 1: The number of rockers or buttons depends on the planned device variant. Order No. 5111 00 Page 17 of 23 Order No. 5112 00 Order No. 5113 00...

  • Page 18: Parameters

    TOGGLE Command on pressing No function Defines the command when the right right rocker rocker button is pressed. TOGGLE Order No. 5111 00 Page 18 of 23 Order No. 5112 00 Order No. 5113 00...
  • Page 19 These parameters are only visible for the function "Value transmitter"... Function of status LED Always OFF Specifies the control of the status LED. Always ON Button-press display Order No. 5111 00 Page 19 of 23 Order No. 5112 00 Order No. 5113 00...
  • Page 20 Scene number, left 1...64 Defines the scene number when the left rocker (1...64) rocker button is pressed. Order No. 5111 00 Page 20 of 23 Order No. 5112 00 Order No. 5113 00...
  • Page 21 Scene number, right 1...2...64 Defines the scene number when the rocker (1...64) right rocker button is pressed. h For rocker 2...n see rocker 1. Order No. 5111 00 Page 21 of 23 Order No. 5112 00 Order No. 5113 00...

  • Page 22: Appendix

    Device combination........ 15 Device components........6 Device fitting.......... 7-8 Dimensions..........6 ETS ..........10,15 ETS search paths........13 inscription panels........6 Operating areas........11 product database........15 Order No. 5111 00 Page 22 of 23 Order No. 5112 00 Order No. 5113 00...
  • Page 23 Systeme Industriegebiet Mermbach Dahlienstraße 42477 Radevormwald Postfach 12 20 42461 Radevormwald Deutschland Tel +49(0)21 95 - 602-0 Fax +49(0)21 95 - 602-191 www.gira.de info@gira.de Order No. 5111 00 Page 23 of 23 Order No. 5112 00 Order No. 5113 00...
