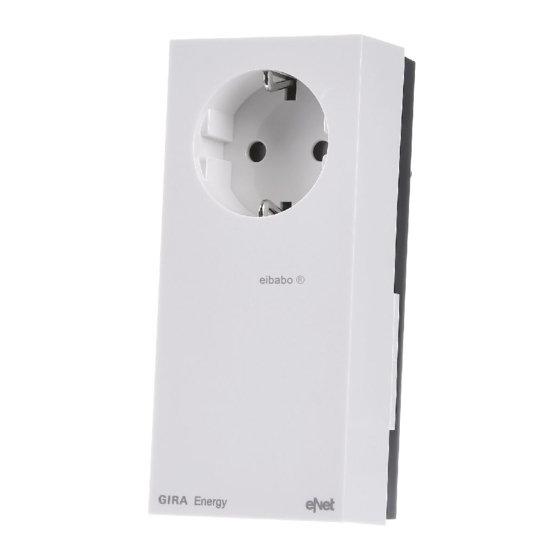

Wireless energy sensor, 1-gang intermediate plug
Wireless energy sensor, 1-gang intermediate plug
Order No. : 5472 02
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Adapter plugs may not be connected in series and must be easily accessible.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
®
(1) SCHUKO
socket with increased contact protection
(2) Red status LED, covered
(3) Button Prog
3 Function
Intended use
-
Energy sensor for radio transmission of voltage, current and energy values
-
Operation with eNet server
-
Indoor mounting in SCHUKO® socket or socket with ground pin
i The energy sensor is not officially calibrated and may not therefore be used for invoicing
purposes.
Product characteristics
-
Detection of current and voltage of the connected consumer
-
Calculation of the effective, idle, apparent power and the active energy
-
Event or time-controlled transmission of measured value telegrams to the eNet server
-
Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
-
Update of the device software
32582212
10864962

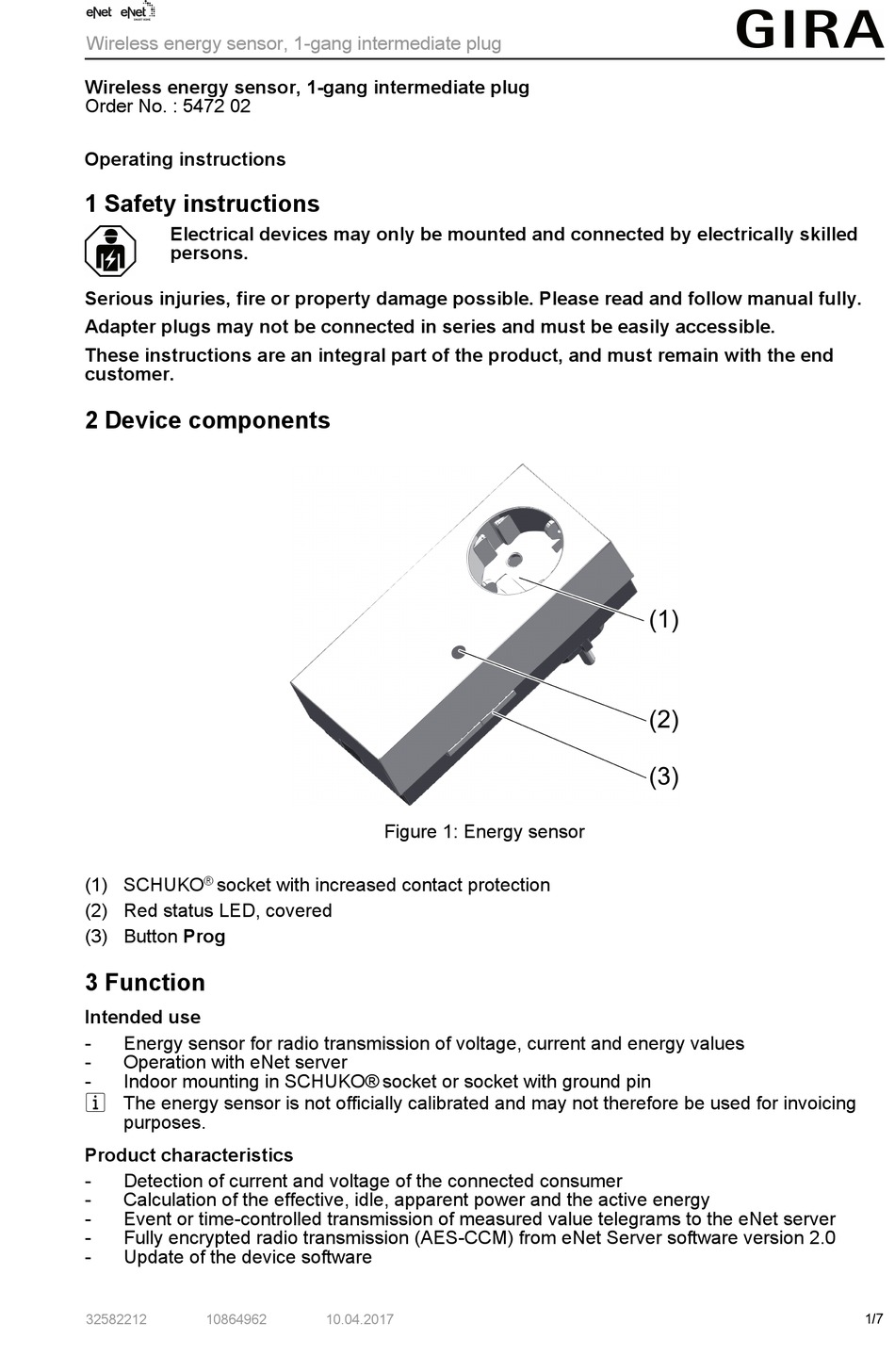

Figure 1: Energy sensor
10.04.2017
1/7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gira 5472 02
Summary of Contents for Gira 5472 02
-
Page 1: Safety Instructions
Wireless energy sensor, 1-gang intermediate plug Wireless energy sensor, 1-gang intermediate plug Order No. : 5472 02 Operating instructions 1 Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. - Page 2 Wireless energy sensor, 1-gang intermediate plug Functional description The energy sensor records and calculates various characteristic electrical values of the connected consumers. It is possible to indicate these values using the eNet SMART HOME app. All the energy sensors available in the building installation can be monitored using the eNet serve.
-
Page 3: Parameter List
Wireless energy sensor, 1-gang intermediate plug The energy sensor is removed from the project and the parameters reset to the default setting. Resetting the device to the factory setting The connection to the eNet server is disconnected and parameters are reset to default setting. Press the Prog button for at least 20 seconds. - Page 4 Wireless energy sensor, 1-gang intermediate plug Advanced device settings Parameters Setting options, Basic Explanations setting Manual commissioning On, Off Disables manual Basic setting: On commissioning for all device channels. In the "Off" setting, the device cannot be reset to the factory setting. Repeater mode On, Off In addition to its other...
- Page 5 Wireless energy sensor, 1-gang intermediate plug Transmit reactive power On, Off Sends the current Basic setting: On fundamental oscillation idle power value. If negative values are displayed, this is capacitive reactive power. Positive values show an inductive reactive power. Transmit apparent power On, Off Transmits the current Basic setting: On...
-
Page 6: Troubleshooting
Server Order No. 5301 00 5.5 Conformity Gira Giersiepen GmbH & Co. KG hereby declares that the radio system type Order No. 5472 02 corresponds to the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.gira.de/konformitaet... - Page 7 Wireless energy sensor, 1-gang intermediate plug Gira Giersiepen GmbH & Co. KG Elektro-Installations- Systeme Industriegebiet Mermbach Dahlienstraße 42477 Radevormwald Postfach 12 20 42461 Radevormwald Deutschland Tel +49(0)21 95 - 602-0 Fax +49(0)21 95 - 602-191 www.gira.de info@gira.de 32582212 10864962 10.04.2017...
