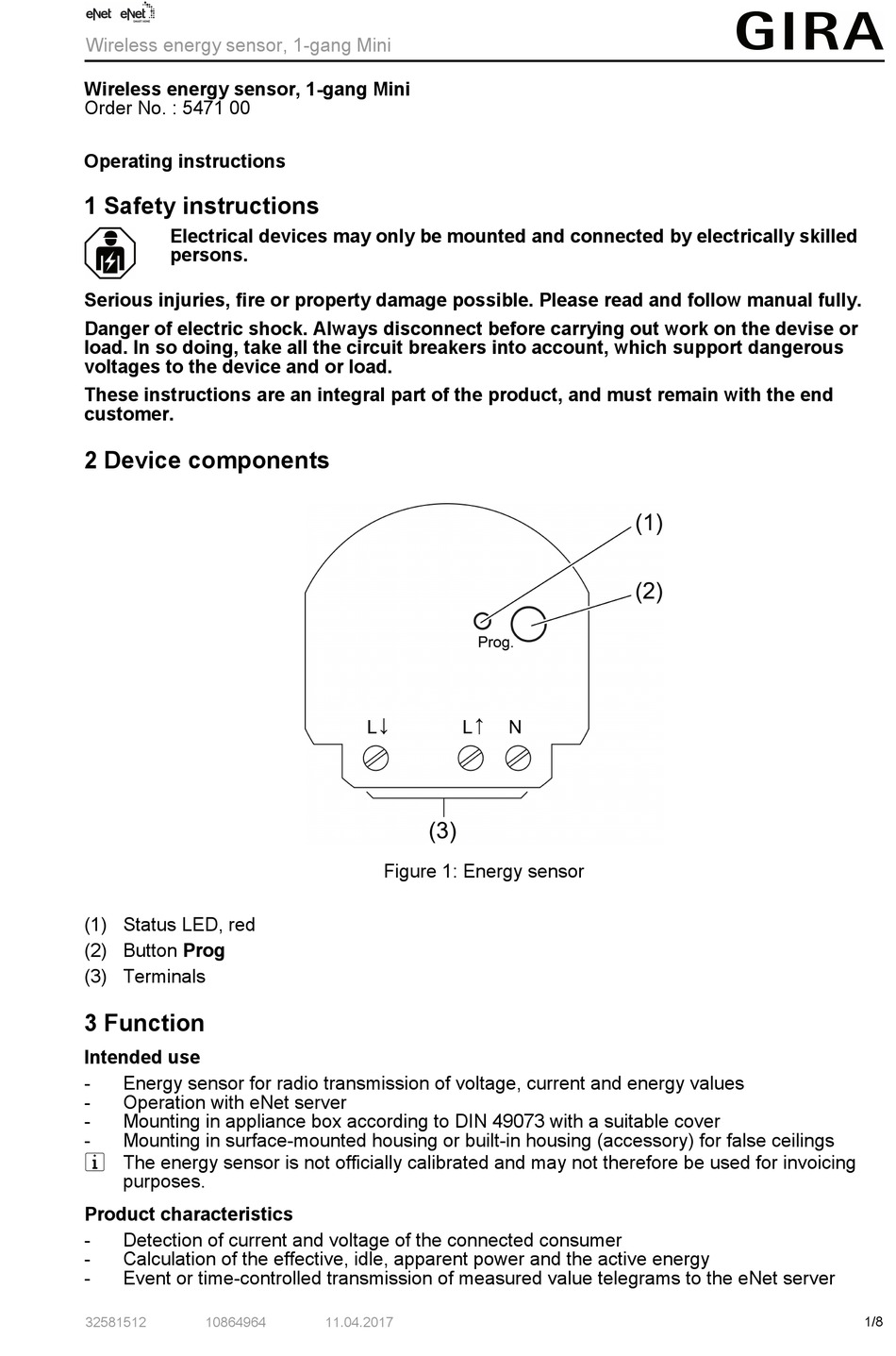

Wireless energy sensor, 1-gang Mini
Wireless energy sensor, 1-gang Mini
Order No. : 5471 00
Operating instructions

1 Safety instructions

Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. In so doing, take all the circuit breakers into account, which support dangerous
voltages to the device and or load.
These instructions are an integral part of the product, and must remain with the end
customer.

2 Device components

(1) Status LED, red
(2) Button Prog
(3) Terminals

3 Function

Intended use
-
Energy sensor for radio transmission of voltage, current and energy values
-
Operation with eNet server
-
Mounting in appliance box according to DIN 49073 with a suitable cover
-
Mounting in surface-mounted housing or built-in housing (accessory) for false ceilings
i The energy sensor is not officially calibrated and may not therefore be used for invoicing
purposes.
Product characteristics
-
Detection of current and voltage of the connected consumer
-
Calculation of the effective, idle, apparent power and the active energy
-
Event or time-controlled transmission of measured value telegrams to the eNet server
32581512
10864964

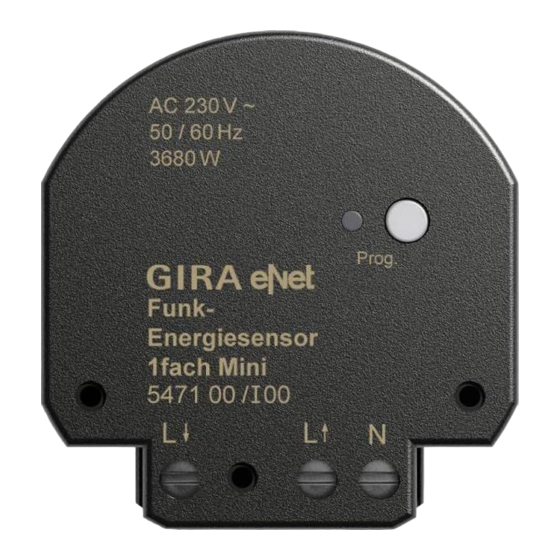

Figure 1: Energy sensor
11.04.2017
1/8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5471 00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gira 5471 00

  • Page 1 Wireless energy sensor, 1-gang Mini Wireless energy sensor, 1-gang Mini Order No. : 5471 00 Operating instructions 1 Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.
  • Page 2 Wireless energy sensor, 1-gang Mini Fully encrypted radio transmission (AES-CCM) from eNet Server software version 2.0 Update of the device software Functional description The energy sensor records and calculates various characteristic electrical values of the connected consumers. It is possible to indicate these values using the eNet SMART HOME app.
  • Page 3 Wireless energy sensor, 1-gang Mini Figure 2: Connection example, energy sensor (4) Monitored consumer Connect energy sensor as shown in the connection example (Figure 2). Insert energy sensor in the appliance box in such a way that the Prog button and status LED are visible.
  • Page 4 Wireless energy sensor, 1-gang Mini Resetting the device to the factory setting The connection to the eNet server is disconnected and parameters are reset to default setting. Press the Prog button for at least 20 seconds. The status LED flashes after 4 seconds. After 20 seconds the status LED flashes faster. Release Prog button and press briefly once again within 10 seconds.
  • Page 5 Wireless energy sensor, 1-gang Mini Advanced device settings Parameters Setting options, Basic Explanations setting Manual commissioning On, Off Disables manual Basic setting: On commissioning for all device channels. In the "Off" setting, the device cannot be reset to the factory setting. Repeater mode On, Off In addition to its other...
  • Page 6 Wireless energy sensor, 1-gang Mini Transmit reactive power On, Off Sends the current Basic setting: On fundamental oscillation idle power value. If negative values are displayed, this is capacitive reactive power. Positive values show an inductive reactive power. Transmit apparent power On, Off Transmits the current Basic setting: On...
  • Page 7 Server Order No. 5301 00 5.5 Conformity Gira Giersiepen GmbH & Co. KG hereby declares that the radio system type Order No. 5471 00 corresponds to the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.gira.de/konformitaet...
  • Page 8 Wireless energy sensor, 1-gang Mini Gira Giersiepen GmbH & Co. KG Elektro-Installations- Systeme Industriegebiet Mermbach Dahlienstraße 42477 Radevormwald Postfach 12 20 42461 Radevormwald Deutschland Tel +49(0)21 95 - 602-0 Fax +49(0)21 95 - 602-191 www.gira.de info@gira.de 32581512 10864964 11.04.2017...
