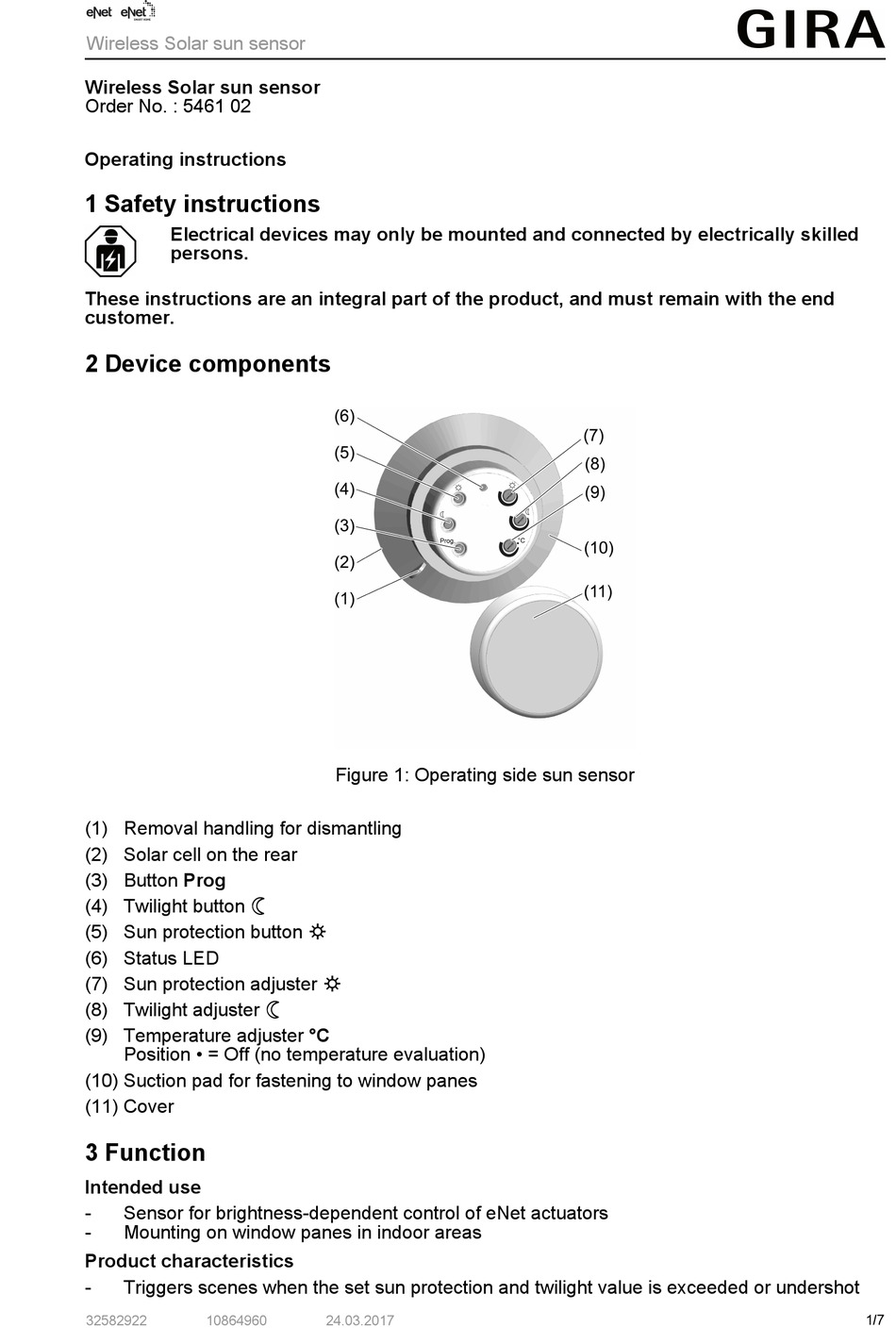

Wireless Solar sun sensor
Wireless Solar sun sensor
Order No. : 5461 02
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled
persons.
These instructions are an integral part of the product, and must remain with the end
customer.

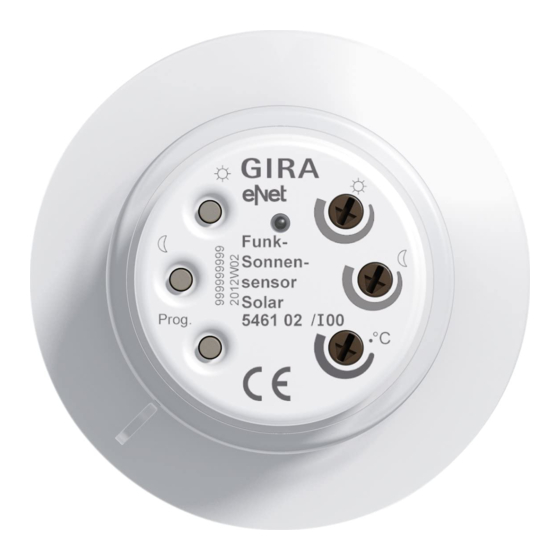

2 Device components
(1) Removal handling for dismantling
(2) Solar cell on the rear
(3) Button Prog
(4) Twilight button 2
(5) Sun protection button 3
(6) Status LED
(7) Sun protection adjuster 3
(8) Twilight adjuster 2
(9) Temperature adjuster °C
Position • = Off (no temperature evaluation)
(10) Suction pad for fastening to window panes
(11) Cover
3 Function
Intended use
-
Sensor for brightness-dependent control of eNet actuators
-
Mounting on window panes in indoor areas
Product characteristics
-
Triggers scenes when the set sun protection and twilight value is exceeded or undershot
32582922
10864960
Figure 1: Operating side sun sensor
24.03.2017
1/7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gira 5461 02
Summary of Contents for Gira 5461 02
-
Page 1: Safety Instructions
Wireless Solar sun sensor Wireless Solar sun sensor Order No. : 5461 02 Operating instructions 1 Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. These instructions are an integral part of the product, and must remain with the end customer. -
Page 2: Operation
Wireless Solar sun sensor Temperature-dependent sun protection possible Scene buttons for sun protection and twilight Brightness measurement via brightness sensor Sends brightness values to the eNet server if brightness changes more than 50 % Test operation for adjusting protection and temperature threshold Solar-powered device Integrated battery as energy store Can be set with eNet server:... - Page 3 Wireless Solar sun sensor Setting the values for sun protection, twilight and temperature Default setting: Sun protection 3 approx. 20,000 Lux (7) Twilight 2 approx. 40 Lux (8) Temperature °C = Off (9) Using a small screwdriver, adjust the values for sun protection 3 (7), twilight 2 (8) and if necessary, the temperature °C (9), too.
- Page 4 Wireless Solar sun sensor i The sun sensor can also be commissioned with the eNet server as an alternative to the commissioning described here. When commissioning with the eNet server, the sun sensor should be attached in a light place in order to prevent it from switching off due to low voltage during programming over a longer period of time.
-
Page 5: Technical Data
Wireless Solar sun sensor Release the Prog (3) button and press briefly once again within 10 seconds. The Status LED flashes briefly. The device is reset to default setting. 6 Appendix This device includes an integrated battery. At the end of its useful life, dispose of the device together with the battery in accordance with the environmental regulations. -
Page 6: Troubleshooting
Mount the sun sensor in a brighter position. 6.4 Conformity Gira Giersiepen GmbH & Co. KG hereby declares that the radio system type Order No. 5461 02 corresponds to the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.gira.de/konformitaet... - Page 7 Wireless Solar sun sensor Gira Giersiepen GmbH & Co. KG Elektro-Installations- Systeme Industriegebiet Mermbach Dahlienstraße 42477 Radevormwald Postfach 12 20 42461 Radevormwald Deutschland Tel +49(0)21 95 - 602-0 Fax +49(0)21 95 - 602-191 www.gira.de info@gira.de 32582922 10864960 24.03.2017...
