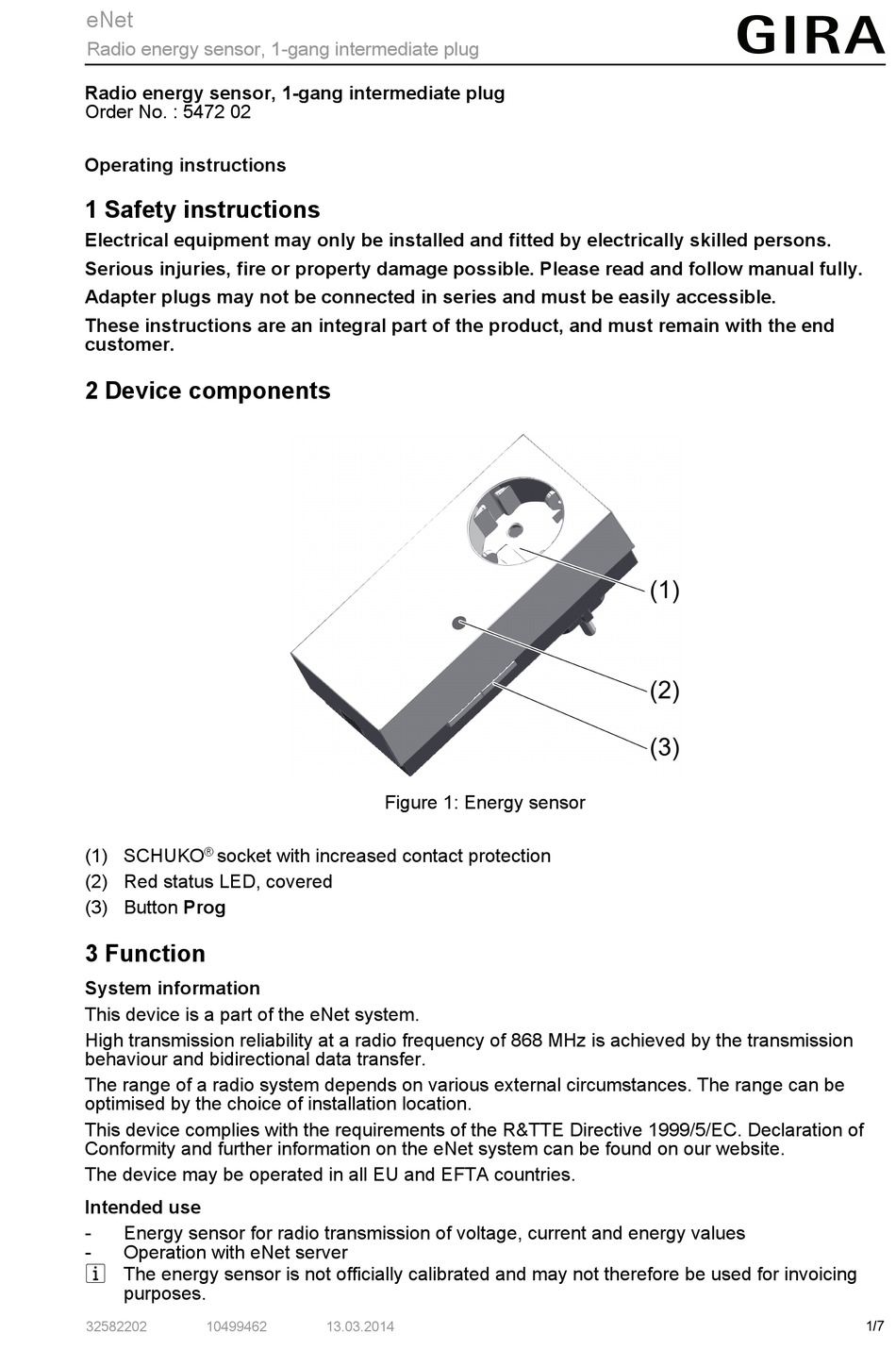

Gira 5472 02 Operating Instructions Manual

eNet
Radio energy sensor, 1-gang intermediate plug
Radio energy sensor, 1-gang intermediate plug
Order No. : 5472 02
Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Adapter plugs may not be connected in series and must be easily accessible.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
®
(1) SCHUKO socket with increased contact protection
(2) Red status LED, covered
(3) Button Prog
3 Function
System information
This device is a part of the eNet system.
High transmission reliability at a radio frequency of 868 MHz is achieved by the transmission
behaviour and bidirectional data transfer.
The range of a radio system depends on various external circumstances. The range can be
optimised by the choice of installation location.
This device complies with the requirements of the R&TTE Directive 1999/5/EC. Declaration of
Conformity and further information on the eNet system can be found on our website.
The device may be operated in all EU and EFTA countries.
Intended use
- Energy sensor for radio transmission of voltage, current and energy values
- Operation with eNet server
i The energy sensor is not officially calibrated and may not therefore be used for invoicing
purposes.
32582202 10499462
Figure 1: Energy sensor
13.03.2014 1/7
