System 3000

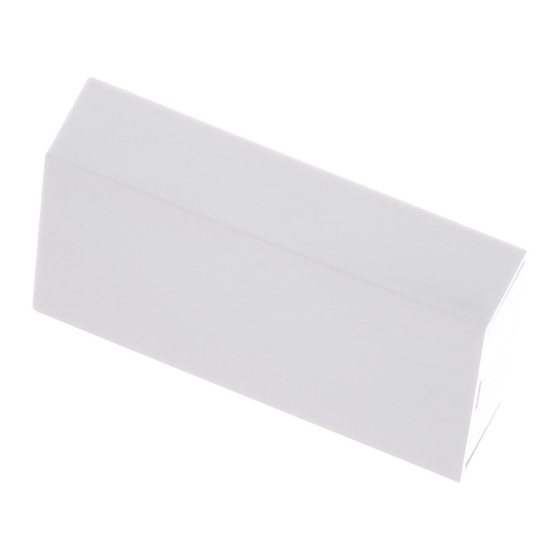

Brightness and temperature sensor BT
Brightness and temperature sensor BT
Order no.: 5466 02
Operating instructions
1
Battery safety instructions
This device or its accessories are supplied with batteries in the form of button cells.
DANGER! Batteries can be swallowed. This can lead directly to death by suffocation. Danger-
ous substances may cause severe internal burns leading to death within 2 hours.
Keep new and used batteries away from children.
Do not use devices if the battery compartment does not close securely and keep away from
children.
If you suspect that a battery has been swallowed or is in any orifice of the body, seek immediate
medical attention.
WARNING! Improper handling of batteries can result in explosion, fire or chemical burn due to
leakage.
Do not heat or throw batteries into fire.
Do not reverse polarity, short-circuit or recharge batteries.
Do not deform or disassemble batteries.
Replace batteries only with an identical or equivalent type.
Remove empty batteries immediately and dispose of in an environmentally friendly manner.
These instructions are an integral part of the product, and must remain with the end customer.
2
Intended use
–
Sensor for detecting brightness and temperature
–
Operation with Bluetooth Venetian blind and timer switch or Bluetooth temperature con-
troller from system 3000
–
Adhesive mounting in the interior on windows, smooth walls or furniture
Product characteristics
–
Brightness and temperature measurement takes place once per minute
–
Transmits the current brightness and temperature value every 5 minutes
–
Transmits the brightness value if the brightness changes by more than 10% of the last
transmitted value
–
Transmits the current temperature value if the temperature changes by more than 0.2 K
–
Expanded function system 3000 Bluetooth Venetian blind and timer switch: sun protection
function, dusk and dawn
–
Serves as external temperature sensor for temperature controller
–
Indicates low battery level
–
Battery-powered device
–
Commissioning with Gira System 3000 app
82599912
05.03.2020
1 / 5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gira 5466 02
Summary of Contents for Gira 5466 02
- Page 1 Expanded function system 3000 Bluetooth Venetian blind and timer switch: sun protection function, dusk and dawn – Serves as external temperature sensor for temperature controller – Indicates low battery level – Battery-powered device – Commissioning with Gira System 3000 app 82599912 05.03.2020 1 / 5...
- Page 2 System 3000 Brightness and temperature sensor BT Commissioning Open the housing Figure 1: Open the housing ￭ Open the housing by sliding it apart. To do so, insert a thin slotted screwdriver into the opening recess (Figure 1) and raise it up so that two catches are passed. Figure 2: Raise housing lid ￭...
- Page 3 System 3000 Brightness and temperature sensor BT Figure 4: Inserting the battery ￭ Slide battery into battery holder (Figure 4). Observe polarity: the positive pole of the bat- tery must be at the top. Figure 5: Engaging the circuit board ￭ Note MAC address (3) (Figure 5). This address is required for assignment to the cover. ￭...
- Page 4 System 3000 Brightness and temperature sensor BT The actuator will now evaluate all received sensor telegrams. Mounting Remove empty batteries immediately and dispose of in an environmentally friendly manner. Do not throw batteries into household waste. Consult your local authorities about environmentally friendly disposal.
- Page 5 Order no. 5467 00 Conformity Gira Giersiepen GmbH & Co. KG hereby declares that the radio system type order no. 5466 02 meets the directive 2014/53/EU. You can find the full article number on the device. The com- plete text of the EU Declaration of Conformity is available under the Internet address: www.gira.de/konformitaet...
