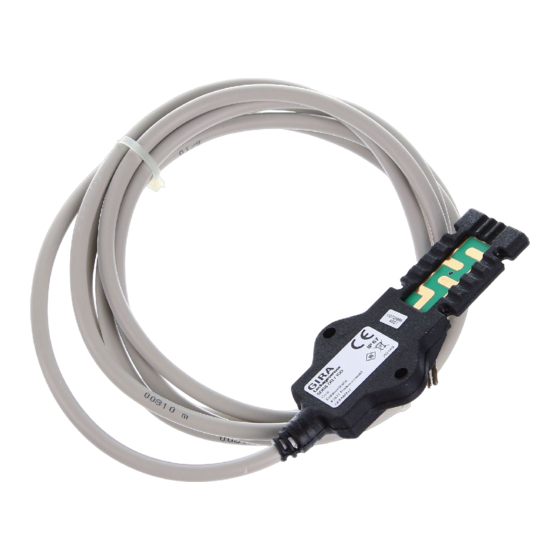

Leakage sensor
Leakage sensor
Order no.: 5068 00
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. During installation and cable routing, comply with the regulations and
standards which apply for SELV circuits.
These instructions are an integral part of the product, and must remain with the end customer.
2

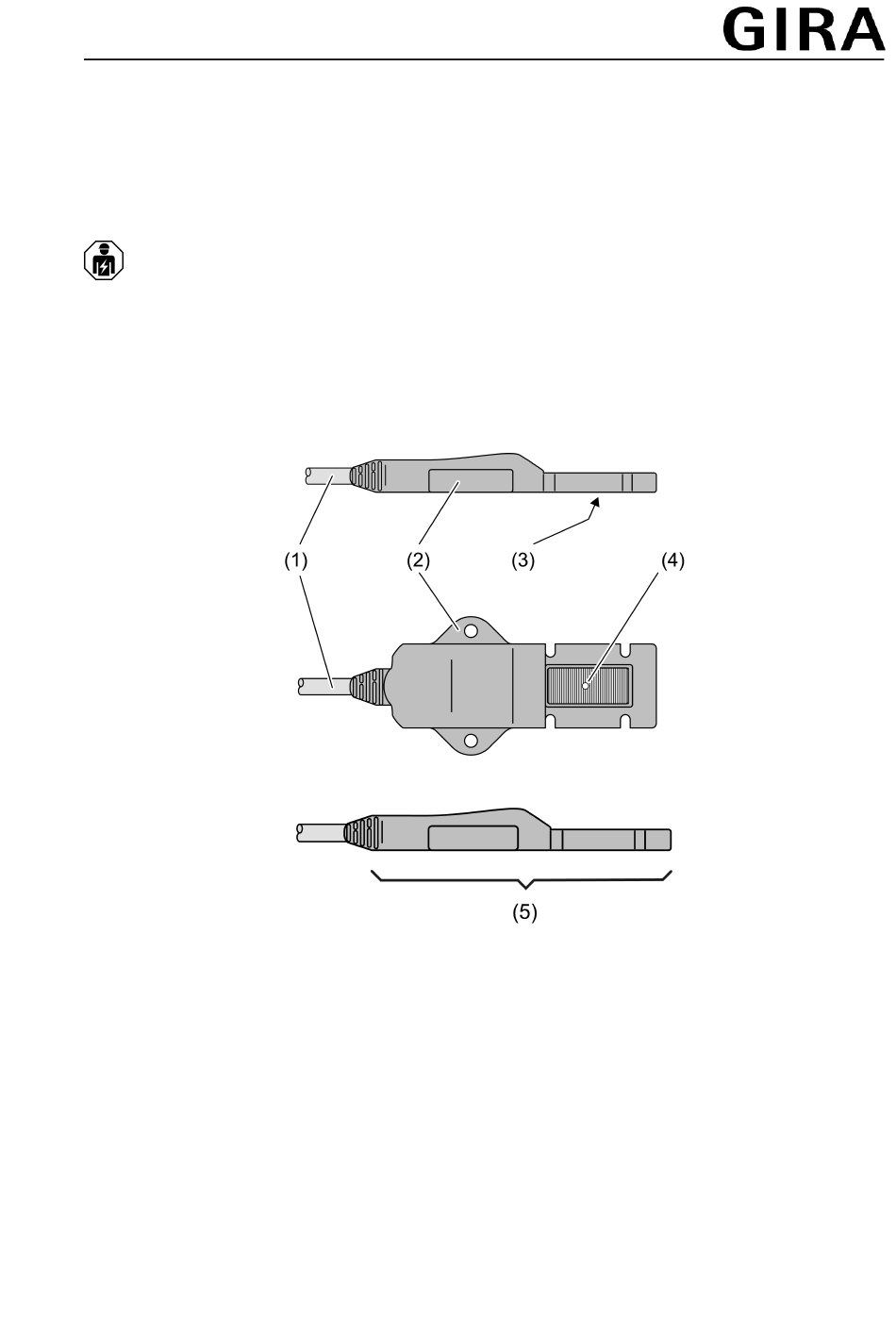

Device components
(1)
Connecting cable
(2)
Fixing strap
(3)
Sensor surface
(4)
Ventilation opening
(5)
Supporting surface
3
Function
Intended use
–
Detection of water penetration and leaks
–
Connection to suitable binary inputs
–
Fitting to the surface to be monitored
82595832
19.07.2021
Figure 1
Figure 2
1 / 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gira 5068 00
Summary of Contents for Gira 5068 00
- Page 1 Leakage sensor Leakage sensor Order no.: 5068 00 Operating instructions Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock. During installation and cable routing, comply with the regulations and standards which apply for SELV circuits.
- Page 2 Leakage sensor Function of the leakage sensor The device monitors the electrical conductivity between the conductive coatings on the sensor surface. If it is dampened with water, the device detects the change and signals it. The device cannot prevent water from leaking, but detects and registers it early, so that the impact of water damage can be kept minor.
- Page 3 Leakage sensor Do not mount the device to the substrate with sealing compound (silicone, acrylic or sim- ilar). ￭ Fit the connecting cable, e.g. with nail clamps. The vent opening (4) supports the sensor function and should be free of dirt. Figure 4 Connecting the leakage sensor The device is directly connected to an evaluation unit and supplied by it.
- Page 4 The warranty is provided in accordance with statutory requirements via the specialist trade. Please submit or send faulty devices postage paid together with an error description to your re- sponsible salesperson (specialist trade/installation company/electrical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG...
