Industrial Electronic Devices

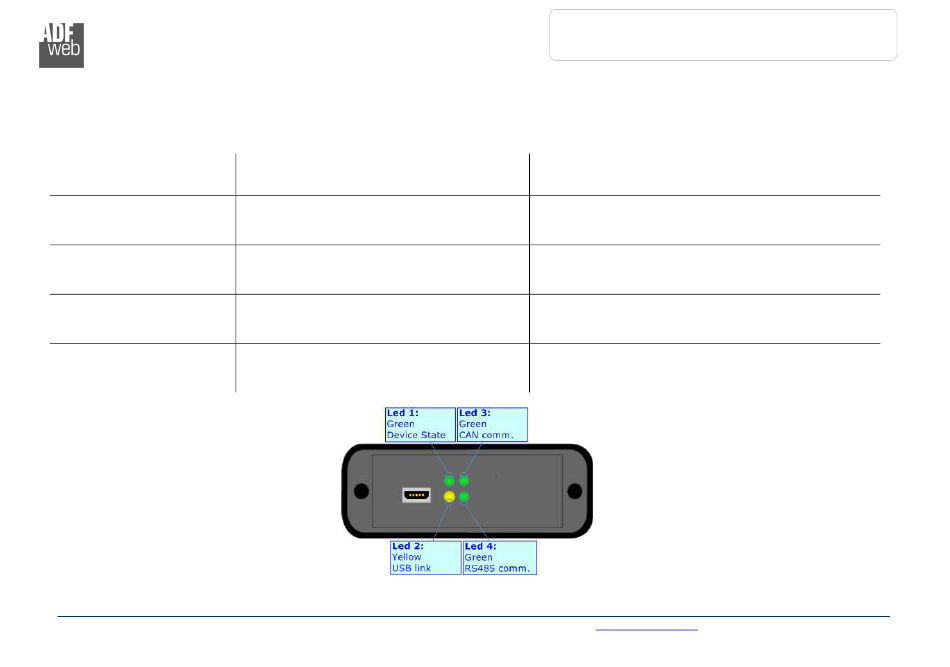

LEDS:
The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device state (green)
2: USB link (yellow)
3: CAN Communication
(green)
4: RS485 communication
(green)
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
Blinks slowly (~1Hz)
ON: USB cable inserted
OFF: USB cable not inserted
Blinks when J1939 frames are received
Blinks when a Modbus request is received
User Manual J1939 / Modbus Slave
Document code: MN67432_ENG
Boot Mode
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
ON: USB cable inserted
OFF: USB cable not inserted
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
INFO:
www.adfweb.com
Revision 1.100
Page 9 of 32
Phone +39.0438.30.91.31
