Assembly - Bed Extension - BOCK belluno Assembly And Operating Instructions Manual

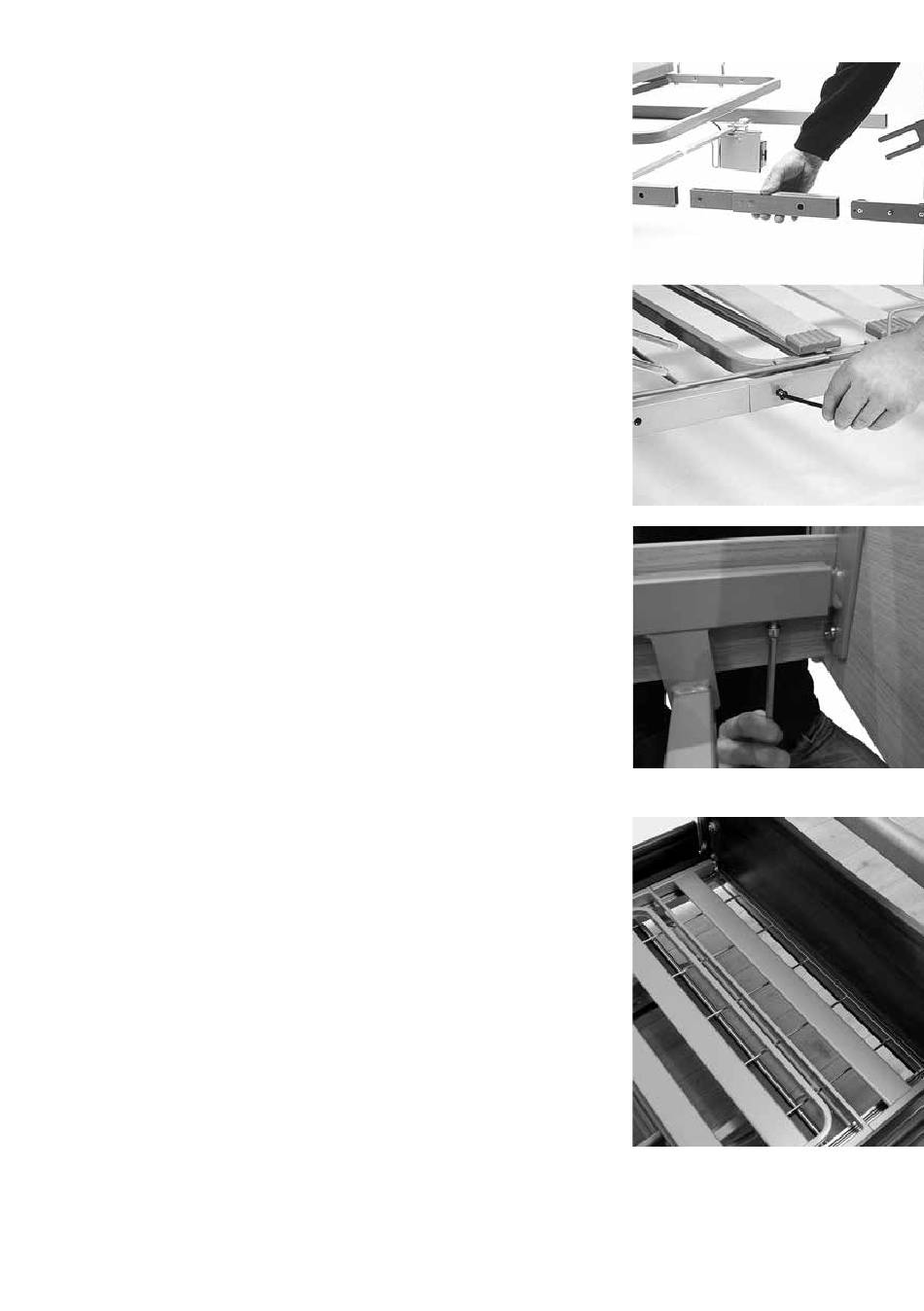

1. Take off the mattress from lying surface.
2. Remove foot end panel.
3. Plug adapter units into the frame of the lying surface at
the foot end and fasten with screws.
4. Put wire bracket into the frame of the lying surface, drill
holes (d = 4.2 mm) and fasten with screws.
5. Do not slide the foot end panel further than shortly before
the release button.
6. IMPORTANT: Make sure to read the labels attached on
the top and bottom of the side rails´ end caps, as these
must not be confounded with each other.
7. Than hook the side rails into the pre-assembled metal
guides.
8. Fasten the end panels correctly.
Assembly – Bed extensions (Interior furnishing beds)
The scope of delivery consists of:
– 1 closing element for the lying surface incl. side panel
extension
– 1 set of long side rails
Assembly:
1. Take off the mattress from the lying surface
2. Remove bolts from the foot end and pull out the
extension,while at the same time removing the side rails.
3. Insert the closing element incl. the side panneling of the
frame extension and fasten them.
4. Mount the side rails
5. Fasten the foot end panel
With the model practico comfort (Model with wing rails):
– 1 closing element for the lying surface (longer lashes 270
mm)
Fig. 1
Readily mounted bed
extension
51
