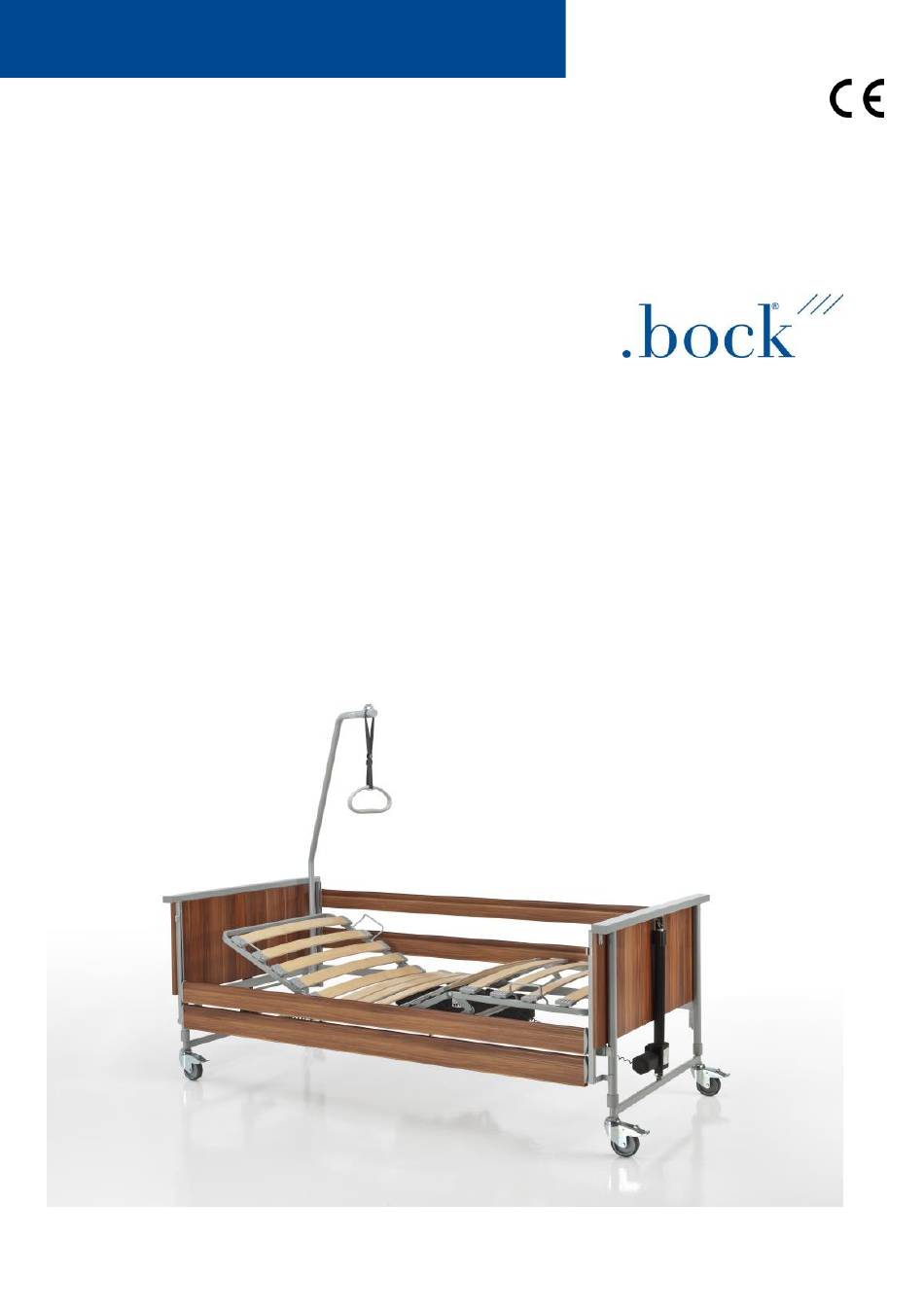

- Page 1 Assembly and operation manual domiflex domiflex domiflex low / low 20/80 domiflex low classic domiflex 185 adiflex 220 ...
- Page 2 Dear valued customer, with your decision to purchase a nursing care bed from Hermann Bock GmbH, you are receiving a long-lasting care product with superior function- ality at the highest safety level. Our electrically operated nursing care beds guarantee optimal lying comfort and allow professional care at the same time.
-
Page 3: Table Of Contents
Resetting the position after triggering the MSE ..........18 The hand control ..................... 19 4 Assembly and operation ..................21 Technical data ....................21 Model series domiflex ..................22 Change of location ..................27 Transport, storage and operating conditions ..........28 Function notes ....................28 Disposal ...................... -
Page 4: Preface And General Instructions
Our beds need little maintenance with proper operation and care. Each bed from Hermann Bock must pass quality testing in a final inspection before it is shipped anywhere. The beds are manufactured according to the current standards for medically used beds and tested accordingly. -
Page 5: Definition Of Person Groups
The nursing care bed is not suitable for use in hospitals. It is also not designed to transport patients. The beds can only be moved within the patient's room - even during patient positioning - for cleaning or better access to the patient, for example. Attention: The beds come with no special connection options for a potential equalisation. -
Page 6: Safety Instructions
Safety instructions The intended use/operation of all moving parts is as important for the safety of the person in need of care as well as for the relatives and the caregivers/nursing staff to avoid poten- tially dangerous situations. This requires the correct installation and operation of the bed. The individual physique of the person in need of care as well as type and the extent of their disability must be taken into account by all means when operating the bed. -
Page 7: Service Life / Warranty
Requirements for the installation location The company Hermann Bock GmbH is not liable for damages which might arise from the daily usage on the floor. To avoid floor indentations, floor should correspond to the recommendations of the FEB - Fachverband der Hersteller elastischer Bodenbeläge e.V. -
Page 8: Type Plate
Type plate Each nursing care bed is marked with an individual and a general type plate. Individual and general type plate Model designation Manufacture date: Day, month and year Serial number: Order number - running number Mains voltage, mains frequency and power input Duty cycle Drive protection class Maximum patient weight / safe working load... - Page 9 Explanation of the symbols: Conformity mark according to the medical device regulation Symbol for observance of the user manual Within the European Union, this product must be disposed via the separated municipal waste. Product may not be dispo- sed of as household waste. Medical application part type B Use only in dry rooms Protection class II (double insulation, insulated for protection)
-
Page 10: General Description Of The Functions
Construction design and function Corrosion protection The Hermann Bock GmbH nursing care beds are developed and constructed in such a way that they can function long and safely. For this reason, all materials that may corrode are protected accordingly. All metal parts are equipped with a surface protection. The steel parts are either galvanised or stove-enamelled with a PES powder coating and the alumin- ium profiles are anodised. - Page 11 The chassis The height adjustment of the beds is carried out either via two height-adjustable manual controls, or via a base frame with single or double drive. The surface of the tubular steel structure is stove-enamelled with a PES-powder coating. The side rail Each nursing care bed can be equipped on both sides with two side rails at a special safety height.
- Page 12 Hazard note from Bock Use only original Bock side rails, which are available as accessories for every nursing care beds. Use only technically flawless and non-damaged side rails with the permissible gap dimensions.
- Page 13 Fig. 1: Continuous wood / steel side protection, divided into two parts Fig. 2: Continuous wood / steel side rail, divided into three parts...
- Page 14 Description All dimensions in mm. Item numbers * Depending on the length of the lying surface Designation item no. The single post at the head and leg end is optional. Continuous wood / steel side rail The dimension in brackets is optional Two-part (Fig.
-
Page 15: Electric Parts
After a cooling down time of approx. one hour, the power will be automatically supplied again. Hazard note from Bock The 9-volt batteries in the controller should be checked once a year for their functionality and... -
Page 16: Caution: Electric Drive
Hazard note from Bock The motors meet the water protection standard IPX4. Do not squeeze/crush the cables. Adjust- ment of moving parts may only be used for the intended use. Hermann Bock GmbH assumes no liability for unauthorized technical changes. -
Page 17: Drives
Drives Hermann Bock GmbH equips nursing care beds with drive systems from Limoss (drive sys- tem with external switching power supply). The double drive for step-less adjustment of lying surfaces and the linear drive as single drive for height adjustment of the lifting frames each consist of four main components. -
Page 18: Resetting The Position After Triggering The Mse
The external switch mode power supply Resetting the position after triggering the MSE After the release of the mechanical quick release, the position of the drive no longer cor- responds to the stored position. For this reason, the drive concerned must be reset to zero. -
Page 19: The Hand Control
* availability depends on the model ** Comfort sitting position only moves up. All adjusted positions must be lowered separately. Hazard note from Bock Do not exceed the maximum duty cycle of 2 minutes. Observe a subsequent break of at least... - Page 20 Hand control - lock functions The hand control comes with an integrated disabling function that can be activated and deactivated with the corresponding key. To disable the entire electrical function, insert the key in the keylock on the backside and turn the lock function on or off with a corre- sponding twist of the key.
-
Page 21: Assembly And Operation
Assembly and operation Technical data... -
Page 22: Model Series Domiflex
The domiflex model series, consisting of the domiflex, domiflex low, domiflex low 20/80, domiflex low classic, domiflex 185 and adi.flex 220 models, has been specially designed to meet the requirements of daily continuous use in home care. The above mentioned mod-... - Page 23 The domiflex model series (domiflex, domiflex low, domiflex low 20/80, domiflex low classic, domiflex 185) becomes operational 1. Before you begin with the assembly, all packaging residues (incl. the cable ties) must be completely removed. Remove the two screws that secure the lying surface on the transport system.
- Page 24 5. Then hook the wooden or steel side rails into the pre-assembled metal guides and ar- range them. IMPORTANT: Make sure to read the labels attached on the top and bottom of the side rails so these may not be confused with each other. 6.
- Page 25 The adjustment range must be passable without obstacles. 9. On the domiflex 185, remove the reinforcing metal braces from the packaging and mount them on the end piece in the mounting device provided for this purpose, and tighten them with the screws supplied.
- Page 26 Then attach the lying surface motor according to the symbols and connect the individual drives. 5. The next steps correspond to points 7 and 8 of the domiflex model series. The adi.flex 220 is now ready for operation.
-
Page 27: Change Of Location
8. Finally push on the end pieces completely and screw them tightly. Disassembly Pull out the mains plug before disassembly. The disassembly of domiflex is conducted in the reverse order of the assembly description. Change of location If the bed must be moved to another location, please follow these safety instructions: –... -
Page 28: Transport, Storage And Operating Conditions
– Place the power cable in a way that it will not be rolled over or strained during the operation of the bed or could be damaged when inserting the mains plug again. Transport, storage and operating conditions Transport and storage Operation Temperature 0°C to +40°C... -
Page 29: Troubleshooting
Plug connector of the hand control not Check the plug-in connection fixed firmly on the motor Hand control or drive unit defective Notify the operator or Bock customer service Disabling function or control box in the Disabling function or control hand control activated... -
Page 30: Accessories
For body heights up from 180 cm, Hermann Bock GmbH recommends the use of a bed extension that allows an extension of the lying surface to a length of up to 220 cm. This will enable even tall people to lie com- fortably while maintaining the same level of functionality. -
Page 31: Mounting Accessories
Important note: The Bock side rail height increase is designed for use with all Bock wood side rail vari- ants. Hermann Bock GmbH does not accept any liability for the use of these products on other makes! Lifting pole with triangle handle, 6.5 kg... - Page 32 The handle can be infinitely adjusted within a range of 350mm. This allows an adjust- ment range between triangle handle and mattress of at least 550mm to 850mm, de- pending on the mattress thickness. The total height of the nursing care bed increases by 1300 mm when using a lifting pole.
- Page 33 Hold the support cross bar to the frame of the lying surface and mark with a pen the drill holes on the frame. Drill holes into the previously marked spots (3.5 mm) of the lying surface frame. Use the provided screws to fasten the cross beam to the lying surface frame.
-
Page 34: Mattresses
Hazard note from Bock For safety reasons use only original Bock accessories when furnishing your nursing care bed fur- ther. Those accessories must be approved by Hermann Bock for the respective bed model. A detailed overview of the accessories and extras for your bed can be found on a separate data sheet. -
Page 35: Cleaning, Maintenance And Disinfection
Cleaning, maintenance and disinfection The individual bed elements consist of high quality materials. The surfaces of the steel tubes are covered with a durable polyester-powder coating. All surfaces of the wooden parts are surface-sealed with an ecologically coating that is low on harmful substances. All bed elements are easy to clean and cared for using wipe and spray disinfection means according to the applicable cleaning requirements with respect to the various areas of application. -
Page 36: Disinfection
Hazard note from Bock Use of abrasive cleansers and/or detergents containing grinding particles, cleaning pads or stain- less steel cleaners for the cleaning is absolutely not recommended. Neither use organic solvents such as halogenated/aromatic hydrocarbons and ketones nor detergents containing acid or al- kaline. -
Page 37: Guidance And Manufacturer's Declaration
Guidance and manufacturer's declaration Guidance and manufacturer's declaration – Electromagnetic emission The medizinisches Bett is intended for use in the electromagnetic environment specified below. The customer or the user of the medizinisches Bett should assure that it is used in such an environment. Emission test Complliance Electromagnetic environment - guidance... - Page 38 – Electromagnetic immunity The medizinisches Bett is intended for use in the electromagnetic environment specified below. The customer or the user of the medizinisches Bett should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment - guidance Portable and mobile RF communications equip-...
-
Page 39: Regular Inspections With Service
For support purposes, Hermann Bock GmbH will provide you with the inspection list in the assembly and operation manual for carrying out all the necessary tests. Please copy the checklist as a form for your inspection. - Page 40 Please note that only our authorised personnel and our sales partners can provide training, supply of spare parts, repairs, inspections and other service. Otherwise, all warranty claims will be void. A listing of our current distributors can be found under www.bock.net/contact/distribution-partners © registered trademark 890.02023 current as of: 2020-04...
