BOCK Stellar Assembly And Operation Manual

Comfort/nursing care bed
Hide thumbs Also See for Stellar:
Table of Contents

Advertisement

Quick Links

Download this manual
Assembly and operation manual
Comfort/nursing care bed
stellar
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stellar and is the answer not in the manual?

Questions and answers

Related Manuals for BOCK Stellar

Summary of Contents for BOCK Stellar

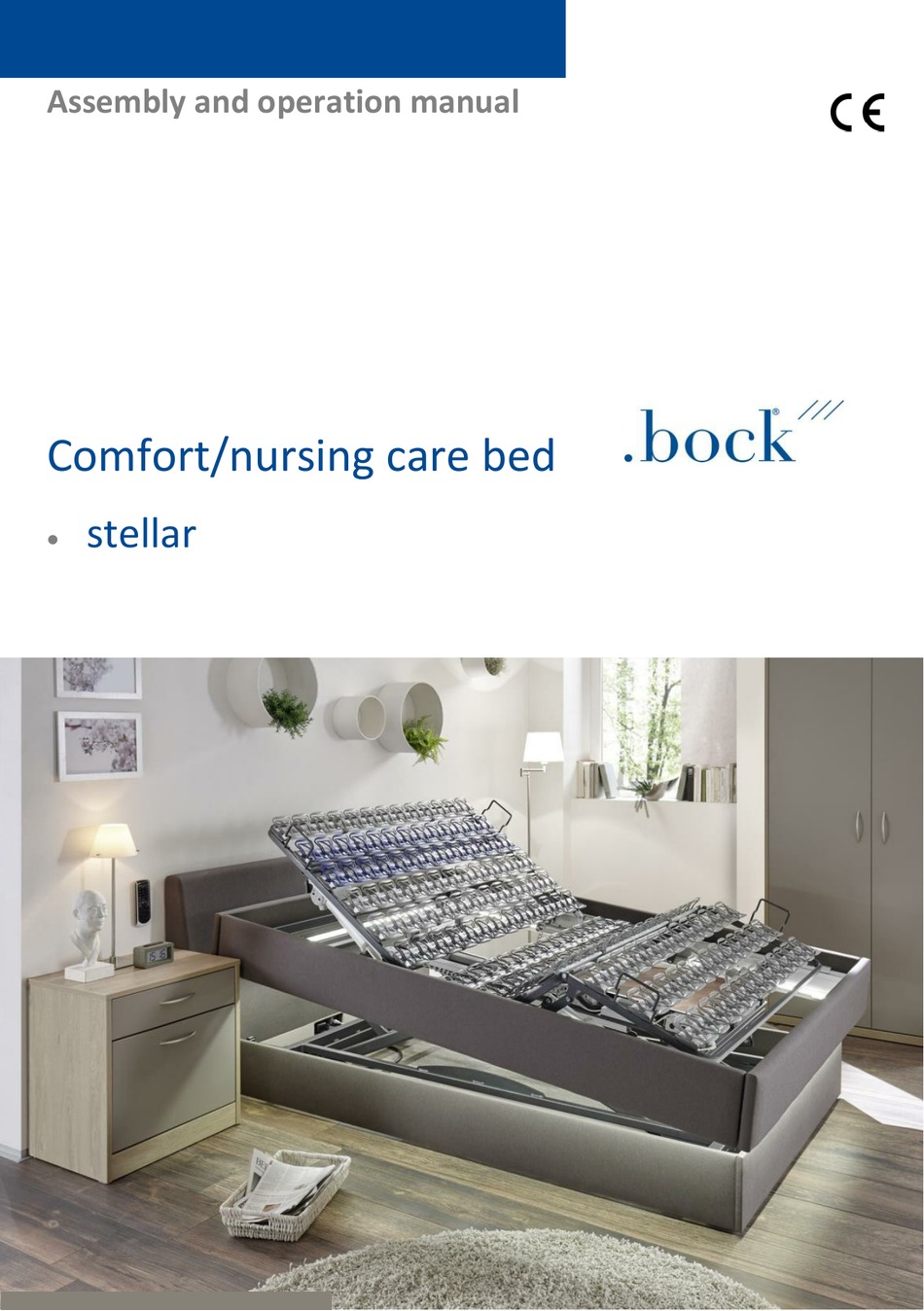

  • Page 1 Assembly and operation manual Comfort/nursing care bed stellar ...
  • Page 2 Dear valued customer, with your decision to purchase a comfort/nursing care bed from Hermann Bock GmbH, you are receiving a long-lasting care product with superior functionality at the highest safety level. Our electrically operated com- fort/nursing care beds guarantee optimal lying comfort and allow profes- sional care at the same time.

  • Page 3: Table Of Contents

    Wireless hand switch for the domestic environment ........18 4 Assembly and operation ..................21 Technical data ....................21 stellar ....................... 23 Mounting the side rails..................32 Emergency lowering - back part (standard) ............ 35 Emergency lowering - back part (optional) ............. 36 Change of location ..................

  • Page 4: Preface And General Instructions

    ) must be greater than or equal to 17. The stellar may be used as a nursing care bed in homes for the elderly or nursing homes and rehabilitation facilities. It is used to alleviate a disability and/or to facilitate the lives of people who are in need of care or to make the work of their caregivers easier.

  • Page 5: Definition Of Person Groups

    The comfort/nursing care bed is not suitable for the use in hospitals. It is also not designed to transport patients. The comfort/nursing care bed can only be moved within the pa- tient's room - even during a patient positioning - for example, for cleaning or to provide a better access to the patient.

  • Page 6: Safety Instructions

    Safety instructions The intended use/operation of all moving parts is as important for the safety of the person in need of care as well as for the relatives and the caregivers/nursing staff to avoid poten- tially dangerous situations. This requires the correct installation and operation of the com- fort/nursing care bed.

  • Page 7: Service Life / Warranty

    Requirements for the installation location The company Hermann Bock GmbH is not liable for damages which might arise from the daily usage on the floor. To avoid floor indentations, floor should correspond to the recommendations of the FEB - Fachverband der Hersteller elastischer Bodenbeläge e.
  • Page 8 Type plate Each comfort/nursing care bed is marked with an individual type plate. Either there is only one sticker on your comfort/nursing care bed (Fig. 1, previous comfort/nursing care bed models) or there are two separate type plates (Fig. 2, current comfort/nursing care bed models) on your comfort/nursing care bed.
  • Page 9 Type plate for current comfort/nursing care bed models Model Model designation in German (DE) and English (EN) Serial number Item numbers Mains voltage, mains frequency, power input, Duty cycle (INT) Drive protection class Date of manufacture (year-month) Patient weight Safe working load Machine readable serial number Patient population Follow the instructions appropriate for mattress size and thick-...

  • Page 10: General Description Of The Functions

    Construction design and function Corrosion protection The Hermann Bock GmbH comfort/nursing care beds are developed and constructed in such a way that they can function for a long time and safely. For this reason, all materials that may corrode are protected accordingly. All metal parts are equipped with a surface protection.
  • Page 11 The side rails can be lifted and lowered. Depending on the model, shorter or longer divided side rail variations are available. The side rails can be retrofitted on the stellar comfort/nursing care bed. Operating the telescopic split side rails (optional) Each side rail element can be adjusted independently from the rest of the side rail parts.
  • Page 12 Fig. 1: Continuous wood side rail Fig. 2: Short divided telescopic wood side rail, solo post in the middle Fig. 3: Long partitioned telescopic wood side rail, double post in the middle All dimensions in mm. (*) Depending on the length of the lying surface.
  • Page 13 Hazard note from Bock Use only original Bock side rails, which are available as accessories for every comfort / nursing care bed. Use only technically flawless and non-damaged side rails with the permissible gap dimensions.

  • Page 14: Electric Parts

    Electric parts The drive unit The drive unit consists of individual drives for the electrical adjustment of the back and leg rest part. The level adjustment is performed with two individual drives that are at- tached to the chassis. The adjustment range of these individual drives is determined via Hall sensors.

  • Page 15: Drives

    The controller Controller comfort/nursing care bed stellar - front side The stellar comfort/nursing care bed is equipped with a controller system from Dew- ertOkin GmbH. Four drives can be connected to the controller (sockets 4, 5, 6 and 7). The colour coding can be found in chapter 4 "Assembly and operation".

  • Page 16: The Hand Control

    Controller stellar comfort/nursing care bed - back side Connections are also provided on the back of the control box. A further control box (socket 8) for the ambient lighting, if available, is plugged in at this side. The hand control The hand control is equipped with a built-in locking device, which allows the caregivers to lock the hand switch via a key completely or partially for its operation.

  • Page 17: Cable Hand Switch - Lock Functions

    (11) (12) Reset movement comfort/nursing care bed stellar: The reset motion is carried out by pushing key (10). Thereby, the comfort/nursing care bed will slowly move to the lowest position. After a signal beep from the controller, reset is fully carried out. All motor posi-...

  • Page 18: Wireless Hand Switch For The Domestic Environment

    The wireless hand switch may only be used for the domestic environment, application envi- ronment 4 (= comfort bed stellar). Use of this wireless hand switch in application environ- ments 3 and 5 can lead to interactions with other radio signals and is therefore not considered intended use.
  • Page 19 Plug the mains plug of the drive system into the socket. Remove the battery cover (1) on the back of the wireless hand switch. Insert the batteries (see battery change) without touching the contact surface. Using the cable hand switch, move the back part upwards to see the controller (2) for the wireless hand switch.
  • Page 20 Hazard note from Bock The motors meet the water protection standard IPX4. Do not squeeze/crush the cables. Adjust- ment of moving parts may only be used for the intended use. Hermann Bock GmbH assumes no liability for unauthorized technical changes.

  • Page 21: Assembly And Operation

    Assembly and operation Technical data Technical data stellar single bed Lying surface dimension: cm 90 x 200 Outer dimension: cm 90.2 x 203.5 Outer dimension with padding 105 x 225.5 safe working load: kg max. Weight of person: kg Height adjustment: cm...
  • Page 22 Technical data stellar double bed Lying surface dimension: cm 180 x 200 Outer dimension: cm 181 x 203.5 Outer dimension with padding 195 x 225.5 safe working load per bed: kg max. Weight of person per bed: kg Height adjustment: cm...

  • Page 23: Stellar

    A comfort/nursing care bed for all circumstances that unifies technology and comfort. Technically perfected down to the last detail: The stellar can be equipped with various lighting systems. In addition, USB connections and 230V sockets can be installed in the comfort bed.
  • Page 24 Remove all packaging from the com- fort/nursing care bed and place the chassis on a free level surface. Place the cross beam (1) including the con- troller on the chassis (2). Pay attention to the head and leg end.
  • Page 25 other. Fasten the lying surface with the 4 screws supplied (cylinder head screws M8x50) and the 4 nuts. Now the cables of the control actuating device motors can be safely laid underneath the lying surface up to the control box. To simplify the cable routing, you can remove some of the panels from the lying surface frame.
  • Page 26 In addition, the cable behind the clip must be long enough to route it under the cross beam all the way to the controller. Pin assignment of the controller for the comfort/nursing care bed stellar: 1. Green: Jumper 2. Red: Y-cable 3.
  • Page 27 Please also refer to the description of the controller in chapter 3. After all plugs have been connected to the controller, you may connect the supplied cover cap to the controller so that the connectors are securely fastened. The hand control is connected to a sep- arate control box (G) located in the head area.
  • Page 28 Now, attach the mattress brackets using the supplied self-tapping screws, if these were not factory-installed (depending on shipping method of the comfort/nursing care bed). Subsequently, raise the chassis for the fur- ther assembly. To do this, connect the mains supply line feeder from the control- ler to a power source, and then move the comfort/nursing care bed upwards.
  • Page 29 The foot side padded panel (3) is mounted in the same way. Next, the side panels (4) are attached to the lying surface. For this purpose, the panel is placed above the aluminium longi- tudinal beam (5). The panel should be set at a slight angle so that the brackets can pass the aluminium longitudinal beam.
  • Page 30 The chassis of the stellar comfort/nursing care bed is also fitted with a panel cover- ing. The first step here is to mount the side panels.
  • Page 31 Please perform a reset of all the motors, before putting the comfort/nursing care bed into operation. This procedure is described in chapter 3 "The hand control". Hazard note from Bock The comfort/nursing care beds are not suitable for transporting the patient. The comfort/nurs- ing care beds may only be moved for cleaning purposes inside the patient’s room or to allow...

  • Page 32: Mounting The Side Rails

    Mounting the side rails The comfort/nursing care bed stellar can be equipped with side rails. The comfort/nursing care bed should be moved to its uppermost position (1) to enable the instal- lation of the side rails. This considerably simplifies the as- sembly.
  • Page 33 Make sure that the side rails are correctly aligned with the brackets (see illus- tration)! The opening in the plastic parts points down- wards. The lettering ". bock ´´´" should be legible on the plastic parts. Proper view from below The hole in the plastic parts of the side rails must now be above the hole in the telescopic posts.
  • Page 34 The second telescopic post must then be mounted. In this case another single telescopic post (11) was selected. Al- ternatively, this can also be a double telescopic post. Push the side rails with their plastic parts together as far as possible.

  • Page 35: Emergency Lowering - Back Part (Standard)

    Hold the back part by all means until it is fully lowered. Hazard note from Bock Emergency lowering may be only carried out in an emergency by people who safely master this operation. Always disconnect the comfort / nursing care beds from the power supply as long as the motor...

  • Page 36: Emergency Lowering - Back Part (Optional)

    The speed of lowering depends on the weight of the mattress and the weight of the patient. Hazard note from Bock With heavy patients, the backrest can lower very quickly. Always lower the backrest with one hand on the mattress bracket to check the adjustment.

  • Page 37: Change Of Location

    Change of location If the comfort/nursing care bed must be moved to another location, please follow these safety instructions: – Move the lying surface into the lowest position using the button (10) of the hand control. – Before conducting a movement, pull the mains plug and fasten it to the top of the lying surface, in order to secure the power cable against falling down and getting run over.
  • Page 38 Plug connector of the hand control not Check the plug-in connection fixed firmly on the motor Hand control or drive unit defective Notify the operator or Bock customer service Disabling function or control box in the Disabling function or control hand control activated...

  • Page 39: Accessories

    It goes without saying that every element of our additional equipment offer meets the special quality and safety standards of Bock. In addition to the standard accessories included in basic equipment, the customer can also choose from our variety of accessories, which is available for each comfort/nursing care bed model.

  • Page 40: Cleaning, Maintenance And Disinfection

    Cleaning, maintenance and disinfection The individual bed elements consist of high quality materials. The surfaces of the steel tubes is covered with a durable polyester-powder coating. All surfaces of the wooden parts are surface-sealed with an ecologically coating that is low on harmful substances. All bed elements are easy to clean and cared for using wipe and spray disinfection means according to the applicable cleaning requirements with respect to the various areas of application.

  • Page 41: Disinfection

    Cover materials Fundamentally, a regular cleaning will increase the service life of textile and imitation leather covers. Particles not removed (dust, crumbs) can cause damage to the covers through abrasions and chafing. To clean the polyester covers, vacuum them regularly and occasionally wipe them with a damp cloth or clean them with a high-quality upholstery shampoo.
  • Page 42 Hazard note from Bock Use of abrasive cleansers and/or detergents containing grinding particles, cleaning pads or stain- less steel cleaners for the cleaning is absolutely not recommended. Neither use organic solvents such as halogenated/aromatic hydrocarbons and ketones nor detergents containing acid or al- kaline.

  • Page 43: Guidance And Manufacturer's Declaration

    Guidance and manufacturer's declaration Guidance and manufacturer's declaration – Electromagnetic emission The medizinisches Bett is intended for use in the electromagnetic environment specified below. The customer or the user of the medizinisches Bett should assure that it is used in such an environment. Emission test Complliance Electromagnetic environment - guidance...
  • Page 44 – Electromagnetic immunity The medizinisches Bett is intended for use in the electromagnetic environment specified below. The customer or the user of the medizinisches Bett should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment - guidance Portable and mobile RF communications...

  • Page 45: Regular Inspections With Service

    For support purposes, Hermann Bock GmbH will provide you with the inspection list in the assembly and operation manual for carrying out all the necessary tests. Please copy the checklist as a form for your inspection.
  • Page 46 Inspection list for Bock nursing care beds Page 1 of 2 Issuing date: 09.10.2018 Model designation Serial / Inventory-No.: Year of manufacture: Manufacturer: Hermann Bock GmbH Visual inspection: Description Remark General: ☐ ☐ Type plate/sticker present on bed and legible? ☐...
  • Page 47 Inspection list for Bock nursing care beds Page 2 of 2 Issuing date: 09.10.2018 Name / location: Address / Postcode / City: Station / Room: Name of examiner / Date: Functional testing: Description Remark Side rail: Are the side rails running smoothly in the tracks and locking into place safely? ☐...
  • Page 48 Please note that only our authorised personnel and our sales partners can provide training, supply of spare parts, repairs, inspections and other service. Otherwise, all warranty claims will be void. A listing of our current distributors can be found under www.bock.net/kontakt/vertriebspartner © registered trademark 890.02256 current as of: 2018-12...
