5.8 Control

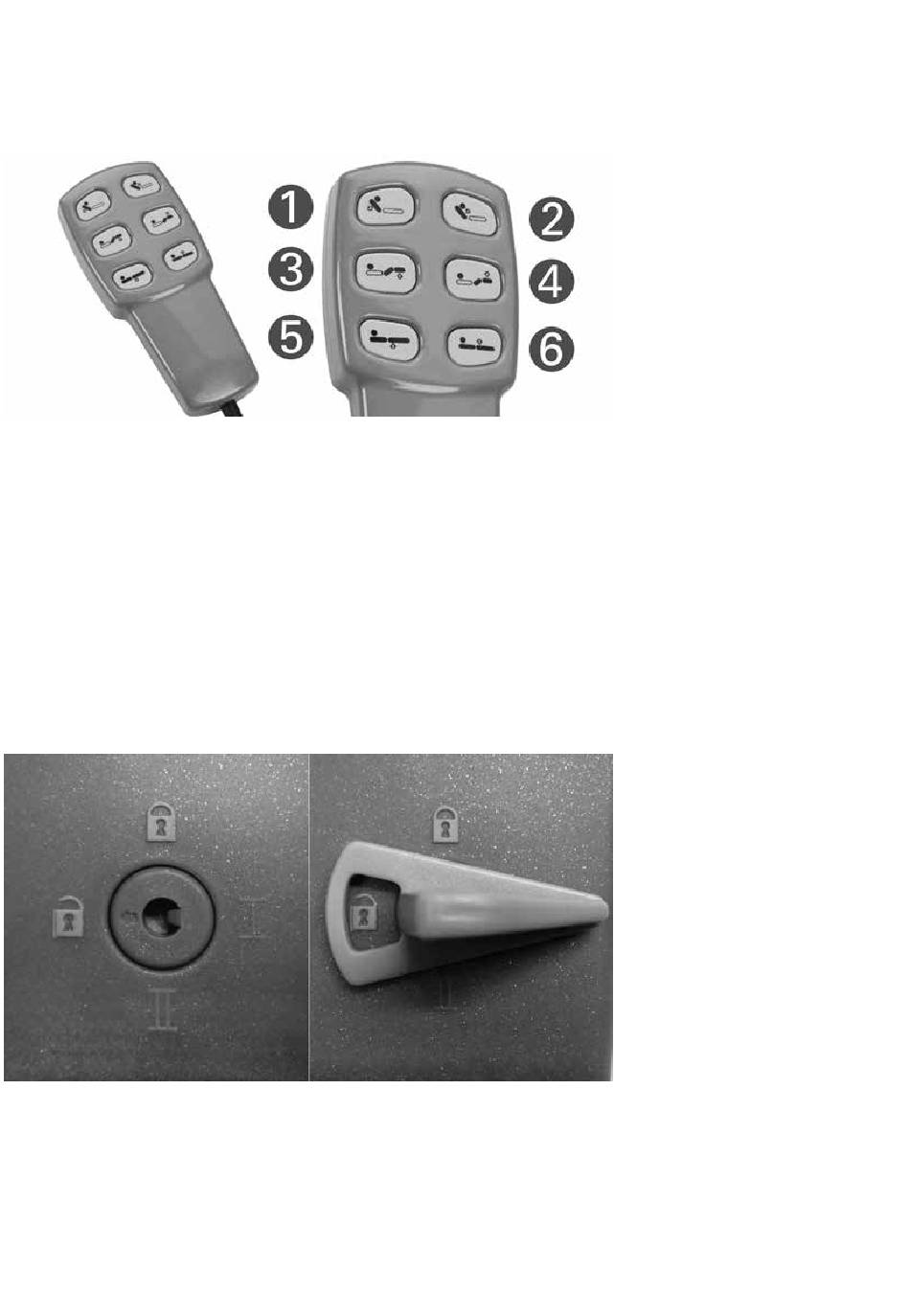

The electrical adjustments are made by means of the hand con-
trol. The following functions can be enabled via a push onto the
corresponding button of the hand control.
Control button 1
Control button 2
Control button 3
Control button 4
Control button 5
Control button 6
Moreover, the hand control is equipped with a locking device,
which can be enabled by means of the associated key. In order
to lock all of the electrical functions, just insert the key into the
locking gate positioned on the back side and en- or disable the
locking function.
Key for the locking device
Switch setting 1
Switch setting 2 & 4
Switch setting 3
Low head function of buttons 9 and 10: Head down function
active
Back bar up
Back bar down
Foot bar up
Foot bar down
Lying surface up
Lying surface down
Hand control functions active
Hand control functions inactive
Hand control functions 1 – 8 active
