> Bock Top Advice
When using different mat-
tress thicknesses, the
minimal height of 22 cm
minus the compression,
measured from the upper
edge of the side rails above
the mattress, must not
be undershot. The use of
higher mattresses requires
an additional plug-on rails
which is available as acces-
sory.
Various nursing beds by
Bock provide special func-
tions whose description can
be found under chapter 5 in
the assembly manual of the
individual models.
Note:
Provided, that the braces/
mounting points of the side
rails are positioned outside
of the side rails (bright grey
depiction), distance A which
runs along the lower side
rails towards the lying surface
applies.

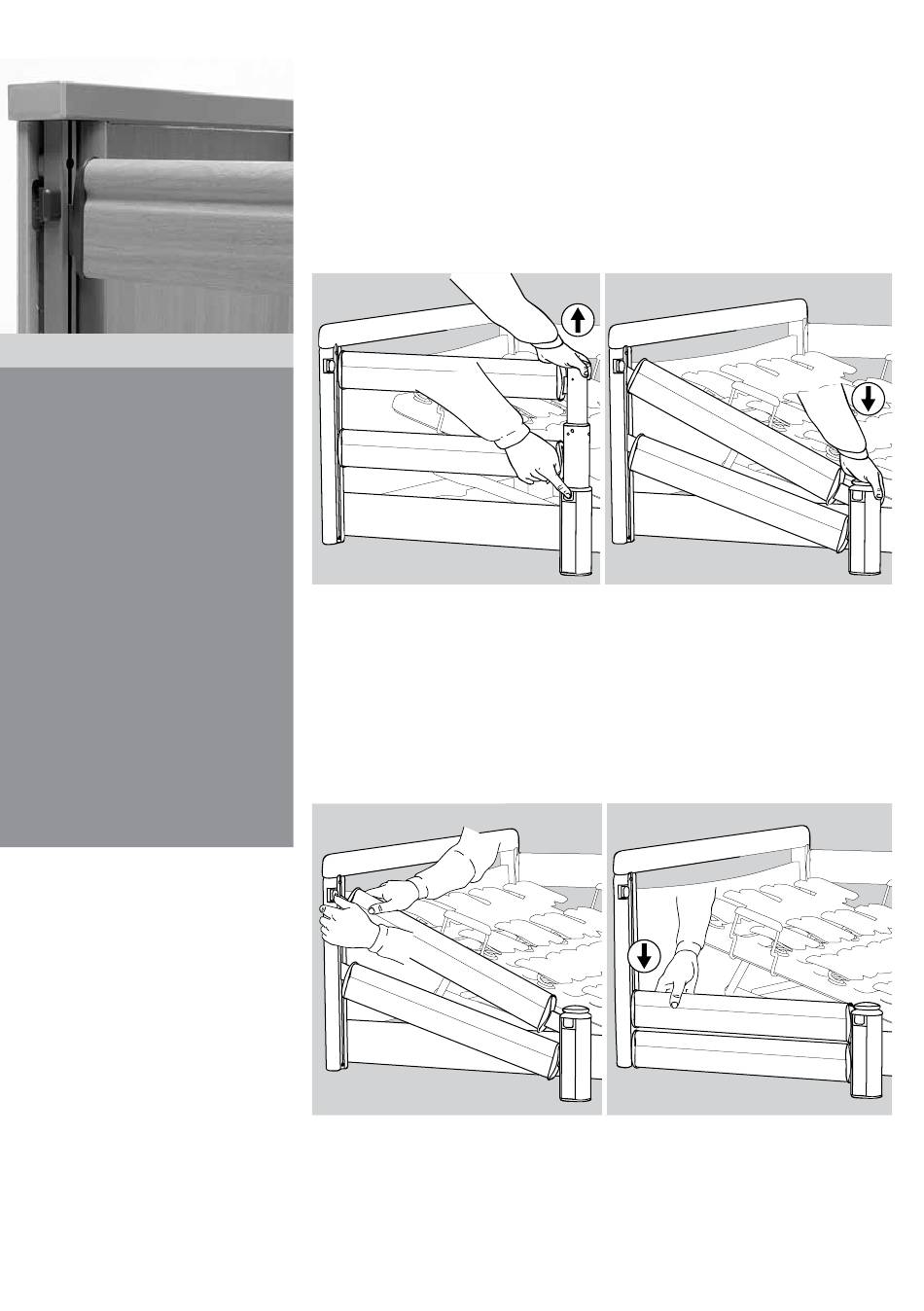

Usage of the splitted telescopic side rails
Each side rail element can be adjusted individually. The locking
mechanisms are on the middle bar and on the end panels. In
order to lower the side rails please grab the upper part of the
telescopic bar, lift it a little bit and with the other hand push the
button of the locking mechanism (Fig. 2). You are now able to
lower this part of the side rail easily. The side rail is now in a dia-
gonal position (Fig. 3).
Fig. 2
In order to lower the other part of the side rail, please grab the
side rail on the other end panel. Push the locking device on the
end panel (Fig.4) and lower it slowly. Now the side rail is in the
lowered position (Fig. 5).
Fig. 4
12
Fig. 3
Fig. 5
