BOCK practico alu 25/80 Assembly And Operating Instruction

Hide thumbs
Table of Contents

Advertisement

Quick Links

Assembly and operating instruction
practico
alu 25/80
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the practico alu 25/80 and is the answer not in the manual?

Questions and answers

Related Manuals for BOCK practico alu 25/80

Summary of Contents for BOCK practico alu 25/80

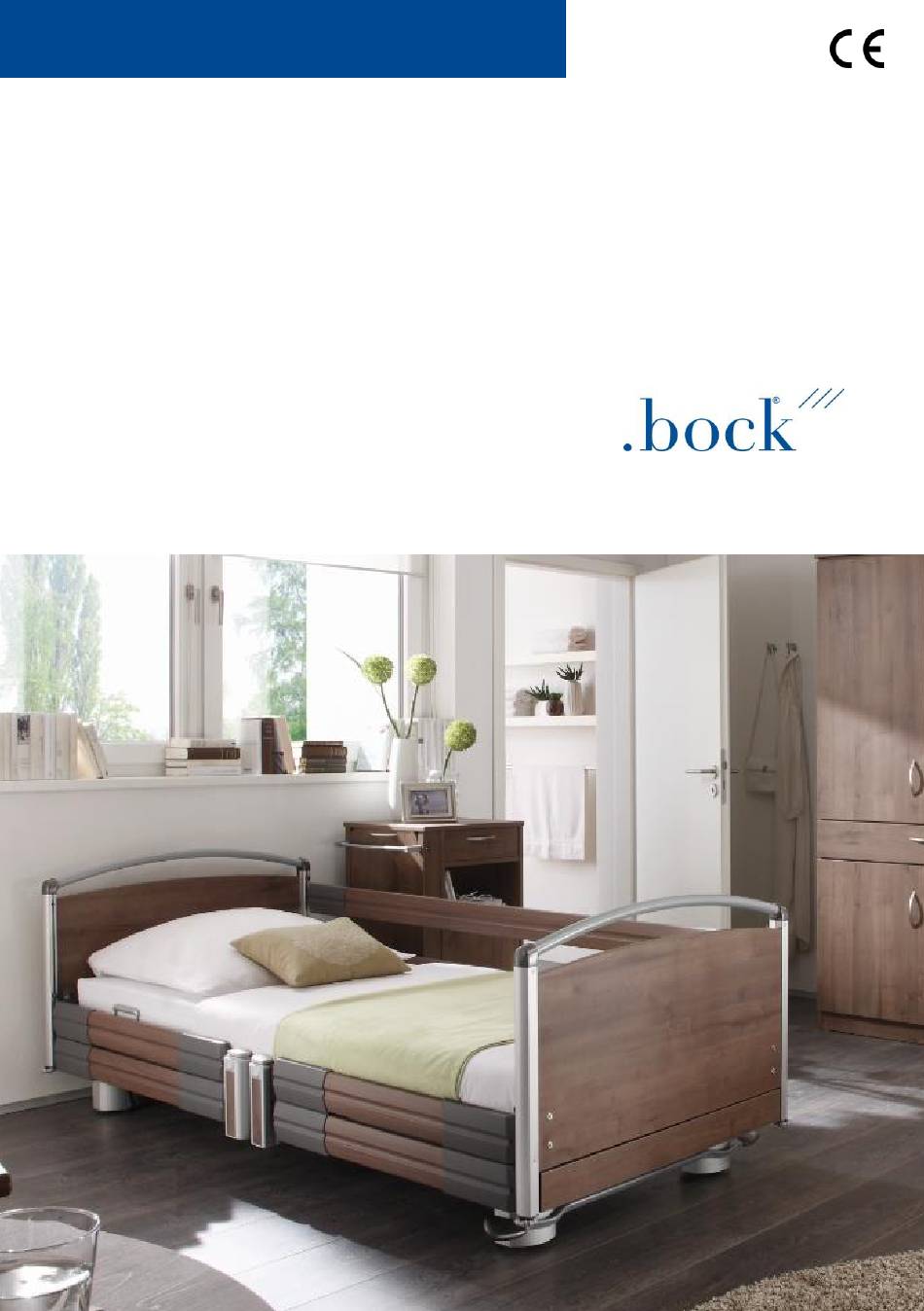

  • Page 1 Assembly and operating instruction practico alu 25/80...
  • Page 2 Dear customer, In deciding to buy a nursing care bed from Bock you have opted for a care prod- uct that has a long service life and delivers first class functionality at the highest safety level. Our electrically adjustable care beds guarantee optimum comfort when lying, and support professional care activities.

  • Page 3: Table Of Contents

    Content 1. Introduction and general information ............5 1.1 Intended use ....................5 1.2 Definition of person groups ................. 6 1.3 Safety notes ....................7 1.4 Life time/gurantee ..................8 1.5 Type label (Example): .................. 9 2. General functionality .................. 10 3.

  • Page 5: Introduction And General Information

    1 Introduction and general information The various bed systems that are made by Hermann Bock GmbH meet the spe- cial requirements for use in rehabilitation and therapy establishments as well as for care at home. Thereby reliable functionality and long-life-cycle are what characterize each single bed model as particularly high quality.

  • Page 6: Definition Of Person Groups

    The nursing care bed is not suited for the use in hospitals. In case that the nurs- ing care bed is equipped with visible castors, it is suitable for the transport of the patient. The nursing care bed is movable while the patient is inside. To prepare the transport, fasten the castors;...

  • Page 7: Safety Notes

    Professionals Professionals include staff assigned by the operator, who are, owing to their training or briefing allowed to deliver, mount, dismount, and transport the bed. As a general rule, these persons must be instructed to the guidelines concerning the cleaning and disinfection of the health care bed. Safety notes The use of all moveable component parts in accordance with their intended use is not only crucial with respect to the hazard prevention for the patient but also...

  • Page 8: Life Time/Gurantee

    patient´s limbs are not positioned in the adjustment area between the chassis and the head- or foot board, resp. that there are no persons in the area between the floor and the raised lying surface. These areas exhibit a particular high risk of crushing injuries.

  • Page 9: Type Label (Example)

    Type label (Example) (1) Model description (2) Date of manufacturing: Day, month, and year (3) Serial number: Order confirmation number – serial number (4) Supply voltage; mains frequency; power input (5) Switch on time (6) Drive protection type (7) Max. person weight / safe capacity (8) Manufacturer (9) Symbols (on the right-hand side) CE- mark in accordance with the directive for medical product...

  • Page 10: General Functionality

    1 Back rest 2 Fixed middle part 3 Tight part 4 Foot part General functionality description Design configuration and functionality The lying surface and its four sections In the standard version, the lying surface comes with comfort wooden slats (may be supplemented with a metal lying surface or special suspension systems) and is made up of four sections: head section, fixed seat support, upper - and lower leg section.
  • Page 11 The side rails Every health care bed comes with integrated side rails on both sides and therefore, ex- hibits a special degree of safety. The side rails can be raised and lowered by means of a steel bar. Owing to an integrated slider, the sliding blocks are particularly smooth and the ends are provided with a well-designed sealing cap.
  • Page 12 Bock-Hazard Notes · Only use original bock side rails, which are available for every bock heath care bed · Only use technical correct and undamaged side rails with the allowed distance. · Make sure that the side rails lock in place safely.
  • Page 13 Fig. 1: Continuous wooden side rails , two side rails Fig 2: Telescopic wooden side rail, solo middle bar in the middle Fig. 3 Telescopic wooden side rails, duo middle bar All dimensions in mm. (*) Depending on the length of the bed. The single post at the head / foot is optional. The measure applies in parentheses optional.
  • Page 14 91704 Wooden side rails, short 91705 Bock Hazard Note The simultaneous use of electrical devices may cause, especially in the direct environment of the ready- to operate bed, low electromagnetic interactions between the electrical devices, such as radio noises. When such a rare case occurs, you should extend the distance between the devices.

  • Page 15: Electrical Components

    Electrical components 3.1 Drive unit The drive unit consists of a twin drive which combines two separate drive units for the electrical adjustment of the back and leg part. A switch-mode supply with rectifier is part of the external motor system. This switch-mode supply converts the input voltage into low voltage of 29 V DC.
  • Page 16 *availability depending on the bed model ** The comfort sitting position only goes up. All position have to be lowered separately. Bock Hazard note The maximum switch-on time of 2 minutes should not be exceeded. A subsequent break of at least 18 minutes has to be observed.

  • Page 17: Caution: Electrically Operated Drive

    All function activate Caution: Electrically operated drive Hermann Bock calls its electrically operated nursing and therapy beds health beds, be- cause they considerably facilitate the care recipient´s recovery process in both physical and mental aspects while relieving pain at the same time thanks to their versatile func- tions.

  • Page 18: The Drives

    4. The drives 4.1 The 24 Volt drives Hermann Bock provides their health care beds with various drive systems. 4.2 The drives system The dual drive and actuator consists of 4 main components. – Housing – Drive – Gearbox – Spindle with nut The housing principle and its double drive and the single drive guarantees the perma- nent function of all drive components.

  • Page 19: The External Switch-Mode Power Supply Smps

    (due to the concurrent flow). The external switch-mode power supply Bock Top Advice Once a year the 9 Volt battery of the motor should be tested and if necessary exchanged. Furthermore regular visual inspections should be done. Bock Hazard Note...

  • Page 20: Technical Data

    5. Assembly and operation Technical data Technical data practico alu 25/80 Lying surface dimension: cm 90 x 200 External dimension: cm 101,5 x 208,5 External dimension with end panel type 20: cm 101,5 x 210 Max. safe capacity: kg Max. person weight: kg...

  • Page 21: Practico Alu 20/80

    A bed for all eventualities, that combines technique and cosiness. Sophisticated tech- nique: practico alu 25/80 can be extended without tools; therefore it is adaptable to the patients ‘individual needs. That is easy: the fully ergonomic, real bed extension is installed in no time at all.
  • Page 22 DIN EN 60601-1-1. Particular features practico alu 25/80 can be extended without tools; therefore it is adaptable to the patients´individual needs. That is easy: the fully ergonomic, real bed extension is installed in no time at all. The side rails are designed for all lengths. The result: com-...
  • Page 23 Position the lying surface on the base that way, that you have enough free space to mount the cable. Plug connection of the main motor: 1. Foot part base 2. Head part base 3. Not defined 4. Not defined 5. Hand control Connect the cable as in the picture.
  • Page 24 In case that, the connecting links for the end panels are dismounted, please fasten them with the provided self-cutting cross-head screw. If the connecting links for the end panels are mounted, please slide them into the longitu- dinal frame of the lying surface and fasten them from below.
  • Page 25 Fasten the end panels with the lying surface. For the telescopic side rails: Position the middle telescopic bar approxi- mately in the middle of the longitudinal frame of the lying surface. Plug the side rail bars onto the fittings and fasten them.
  • Page 26 Adjust the telescopic middle bar and fasten For standard continuous side rails: Unfasten the screws of the connecting links of the head end panel and pull them out a little bit. Plug the side rail bars onto the fixation and bolt them together.
  • Page 27 –hand- screw. Bock Hazard Note Bed models with covered castors are not suitable for patient´s transport. The beds are only destined to be moved within the room, for cleaning or for access to the patient.
  • Page 28 The motors fullfill the IPX 4 requirements. The cables should not be crushed. The adjustment of the movable parts must be used for the intended purpose only. Hermann Bock GmbH assumes no liability for damages, occurred by unauthorized technical modifications.

  • Page 29: Relocation/ Repositioning

    5.3 Relocation/ Repositioning In case, the bed is supposed to be moved to another place, please make sure to observe the following safety instructions: Bring the lying surface to the lowest position. Disconnect the mains plug and put it into the hook-up appliance at the wooden side rail, in order to prevent the mains power cable from dropping down and getting rolled over.
  • Page 30 Faulty hand control or motor Inform the operator or customer support of H. Bock GmbH The locking appliance or locking Deactivate the locking box of the hand control is appliance or locking box of activated.

  • Page 31: Accessories

    Accessories As it is our goal to satisfy every need of our customers, Hermann Bock offers a wide range of practical and mobility-promoting accessories, so that each health bed can be exactly customized to the individual needs of the care recipient. The assembly is done in a quick and easy manner using the fixing points on the beds that have already been prepared for this purpose.

  • Page 32: Cleaning, Maintenance And Disinfection

    7. Cleaning, maintenance and disinfection The several bed elements consists of hight-quality materials. The surface of the steel tubes is covered with a durable PES powder coating. All surfaces of the wooden parts are sealed with an ecologically compatible overlay. All bed elements are easy to clean and cared for using wipe and spray disinfection means according to the applicable cleaning requirements with respect to the various areas of application.

  • Page 33: Disinfection

    Put the bed out of operation immediately, attach an appropriate visible la- belling and get in contact with the manufacturer/supplier Bock Hazard Note The bed has to be cleaned and disinfected prior to every re-use. This provision is accompanied by the requirement of a visual inspection which needs to be carried out in order to prevent mechanical.

  • Page 36: Declaration Of Conformity

    9. Declaration of conformity Manufacturer: Product description/ model Hermann Bock GmbH Medical used bed in general Nickelstraße 12 33415 Verl Classification: Choosed conformity evaluation process: Medical products class I, norm 1 and 12 Appendix VII of MDD referring to appendix IX of MDD Hereby we declare that, the above specified products fulfill the precautions of the guideline 93/42/EWG of the advice for medical products.

  • Page 37: Continuous Functionality Check (Guide Line)

    In case that there is no suitable person on part of the operator in order to perform the Safety- technical control, Bock´s service offers you to carry out the Safety technical control including check and observance of the respective inspection terms for a charge.
  • Page 38 Constant functionality checks In accordance with MPBbetriebV, BGV A3 and DIN EN 62353 (electrical measurements) Test specimen: O Bed O Insert frame O Controller/ Main drive Model name: Serial/ inventory number: Location Person in charge: Visual,mechanical and electrical examination Result Is the overall condition of the bed alright? Description of defects: Are the address/ type labeling on the bed and on the motors visible?
  • Page 39 Bed-accessories (lifting pole, triangle grab handle, belts, control box etc.) without damages and with secure fixing? Description of defects: Safe breaks, arresting and free running of wheels? Description of defects: Mains cable, connecting cables and plugs without scratches, dents, kinks, porous parts or bare wires? Description of defects: Pull relief fastened and efficient?
  • Page 40 Serbien Proxi-Med d.o.o | www.proxi-med.co.rs Slowenien Medimaj d.o.o. | www.medimaj.com Slowakei Servis Invo | www.servisinvo.sk Bock Spanien Ferran Asensio Jou | www.bock.net/es/ Tschechien Ortoservis | www.ortoservis.cz Ukraine ADS Ukraine © registered trade mark 890.02129 Issued 10/2015 Subject to technical modification...
