Ordering info for Frames and Flanges

Frame sizes and the corresponding flange sizes
for different mounting versions
Type Motor frame size
FCM 305 80
FCM 307 80
FCM 311 90
FCM 315 90
FCM 322 100
FCM 330 100
FCM 340 112
FCM 355 132
FCM 375 132
Flange size according to IEC ref. FFxxx (Dimension M), see section Dimensions
S: Available as standard shaft
*
No changes regarding shaft dimensions

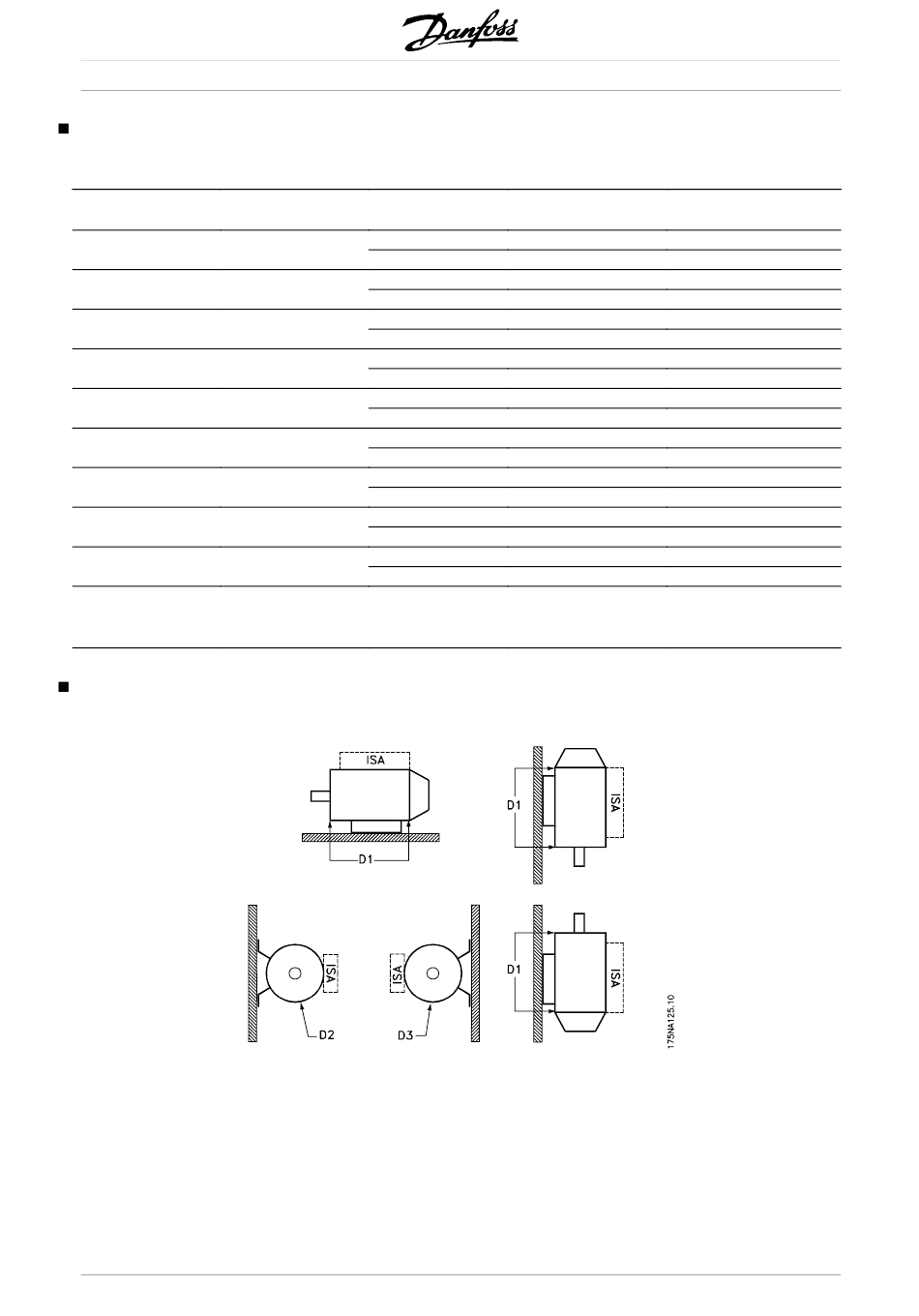

Ordering info for inverter box position and
drain hole position
Inverter box position, always top mounted.
D1: Drain holes opposite inverter side, both
drive end and non drive end.
D2/D3: Drain holes 90° to inverter, both drive
end and non drive end.
8
Mounting version Flange size, standard
(S) [mm]
B5/B35 165
B14/B34 100
B5/B35 165
B14/B34 100
B5/B35 165
B14/B34 115
B5/B35 165
B14/B34 115
B5/B35 215
B14/B34 130
B5/B35 215
B14/B34 130
B5/B35 215
B14/B34 130
B5/B35 265
B14/B34 165
B5/B35 265
B14/B34 165
All drain holes are mounted with screw and
washer, IP 66 if not opened.
MG.03.H3.02 - VLT is a registered Danfoss trademark
®
VLT FCM Series
Flange size,
*
alternatives [mm]
100/115/130/215
85/115/130
100/115/130/215
85/115/130
130/215
100/130
130/215
100/130
165/265
115/165
165/265
115/165
165/265
165
215/300
130
215/300
130
