Quick Start Guide
00825-0100-4210, Rev AB
July 2019
™
Rosemount
Wireless Permasense
WT210 Corrosion Transmitter

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rosemount Wireless Permasense WT210 and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson Rosemount Wireless Permasense WT210

Summary of Contents for Emerson Rosemount Wireless Permasense WT210

  • Page 1 Quick Start Guide 00825-0100-4210, Rev AB July 2019 ™ Rosemount Wireless Permasense WT210 Corrosion Transmitter...
  • Page 2 (I.S.) installations. Refer to the Rosemount Wireless Permasense Corrosion Transmitter Reference Manual for more instruction. The manual and this guide are also available electronically on Emerson.com\Rosemount. Shipping considerations Each device contains two “D” size primary lithium-thionyl chloride battery cells. Primary lithium batteries are regulated in transportation by the U.S.

  • Page 3: Table Of Contents

    July 2019 Quick Start Guide Contents Overview............................5 Wireless considerations........................7 Field communicator connections....................8 Physical installation........................9 Commissioning device....................... 12 Additional hardware........................16 Product certifications......................... 19 Quick Start Guide...
  • Page 4 Quick Start Guide July 2019 Emerson.com/Rosemount...

  • Page 5: Overview

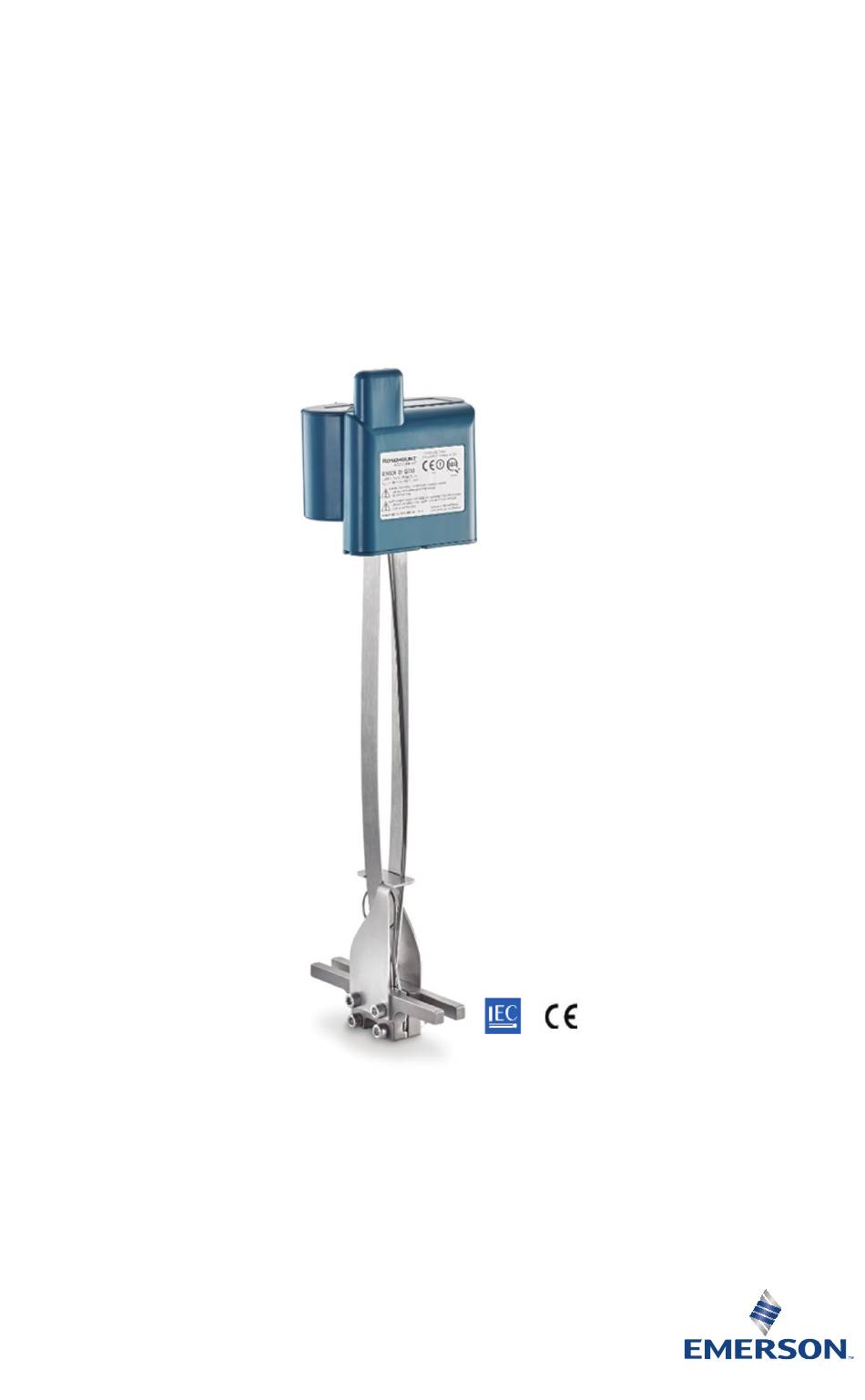

    July 2019 Quick Start Guide Overview ™ Figure 1-1: Rosemount Wireless Permasense WT210 Corrosion Transmitter A. Antenna B. Power module C. Head D. Waveguide E. Waveguide spacer F. Stabilizer G. Foot H. Thermocouple Quick Start Guide...
  • Page 6 • Stainless steel circular heat shield • M8 (compatible with 5/16-in. studs) Nord-Lock anti vibration washers, two per sensor • Lanyard kit, 316 stainless steel lanyard 6.5 ft. (2 m) in length, gripple No.2, release key Emerson.com/Rosemount...

  • Page 7: Wireless Considerations

    (following instructions below) after the gateway has been installed and functioning. This results in a simpler and faster network installation. Enabling active advertising on the Gateway ensures new devices are able to join the network faster. For more information see the Emerson Wireless 1420 Gateway Manual (document number 00809-0200-4420).

  • Page 8: Field Communicator Connections

    BP20E power module. The USB connector is plugged in to the tablet PC as shown in Figure 3-1. Figure 3-1: IK220 Commissioning Kit A. Tablet PC B. CC21 C. USB cable plugged into USB port ™ D. Rosemount Wireless Permasense WT210/ET210 sensor Emerson.com/Rosemount...

  • Page 9: Physical Installation

    July 2019 Quick Start Guide Physical installation The corrosion transmitter is connected directly to the piping being measured. Mounting considerations Procedure 1. When mounting sensors on pipe bends and elbows, studs must be aligned as follows a) Fit two nuts to the stud, the first at the top of the thread and the second 15-20 mm down the thread as shown in Figure 4-1.
  • Page 10 5. Examine the thermocouple and make sure it is protruding past the end of the waveguide by about ⅛ in. (3mm) so that it will press onto the pipe when the sensor is tightened as shown in Figure 4-3. Emerson.com/Rosemount...
  • Page 11 July 2019 Quick Start Guide Figure 4-3: Thermocouple Guidelines Correct Incorrect 6. Locate and place the WT210 sensor over the studs, ensuring the waveguides are positioned centrally to +/-0.2 in. (5 mm). 7. Place washers over the studs. 8. Thread nut onto the studs and run them down several threads. 9.

  • Page 12: Commissioning Device

    Check in the Network Discovery panel to confirm that the sensor can hear a device with the network ID you wish the sensor to join. Note Joining the device to the network could take several minutes. Figure 5-1: Rosemount WT210 Install Tool Emerson.com/Rosemount...
  • Page 13 July 2019 Quick Start Guide CAUTION Overtightening the nuts can damage the waveguides. Torque wrench setting value of 8Nm (6ft.lbs) and ensure nuts are ONLY tightened incrementally as described below. 5. Select the Install tab. 6. Select Start. 7. Observe the graphical information displayed in the install tool software as shown in Figure 5-2.
  • Page 14 1. Review the graphs following tightening and check these criteria are met: a) The coupling amplitude history plot shows an increasing trend, in-line with nut tightening. b) The coupling amplitude is above 20. c) The last displayed ultrasonic waveform shows the first two peaks are clean and well defined. Emerson.com/Rosemount...
  • Page 15 July 2019 Quick Start Guide d) The measured thickness displayed in the bottom right of the window is comparable with expectations for the measurement location. 2. When all of the above criteria are satisfactorily met, press the Complete button. 3. Ensure all required sensor information is accurately logged (e.g. sensor ID and location).

  • Page 16: Additional Hardware

    Figure 6-1. Figure 6-2: Gripple Installation 3. Feed the bare end of the lanyard into the gripple as shown in Figure 6-2 and push the gripple 18 in. (45 cm) in from the bare end. Emerson.com/Rosemount...
  • Page 17 July 2019 Quick Start Guide Figure 6-3: Lanyard Installation A. Lanyard hole in sensor housing B. Stabilizer 4. Feed the bare end of the lanyard through either lanyard hole in the sensor housing, then through the stabilizer (between the waveguides) as shown in Figure 6-1 5.
  • Page 18 Quick Start Guide July 2019 Figure 6-4: Gripple Installation Complete Note The wire can be released from the gripple using the release key. Figure 6-5: Wire Release A. Release key Emerson.com/Rosemount...

  • Page 19: Product Certifications

    All wireless devices require certification to ensure they adhere to regulations regarding the use of the RF spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage.
  • Page 20 1. The optional silicone rubber boot may present a potential electrostatic ignition hazard and must not be rubbed or cleaned with a dry cloth. 2. The polymer enclosure may present a potential electrostatic ignition hazard and must not be rubbed or cleaned with a dry cloth. Emerson.com/Rosemount...
  • Page 21 July 2019 Quick Start Guide Declaration of Conformity Figure 7-1: Declaration of Conformity Quick Start Guide...
  • Page 22 Quick Start Guide July 2019 China RoHS Emerson.com/Rosemount...
  • Page 23 July 2019 Quick Start Guide Quick Start Guide...
  • Page 24 The Emerson logo is a Twitter.com/Rosemount_News trademark and service mark of Emerson Electric Facebook.com/Rosemount Co. Rosemount is a mark of one of the Emerson Youtube.com/user/ family of companies. All other marks are the RosemountMeasurement property of their respective owners.
