Information in this document is subject to change without notice and does not represent a commitment on the part of Emerson. The information in this manual is not all- inclusive and cannot cover all unique situations. -
Page 3: Introduction

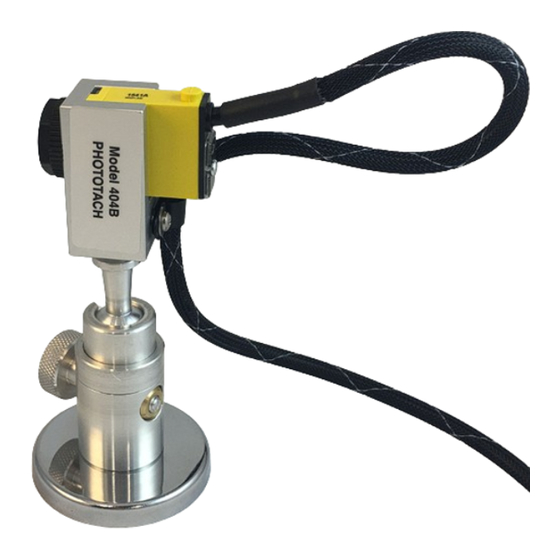

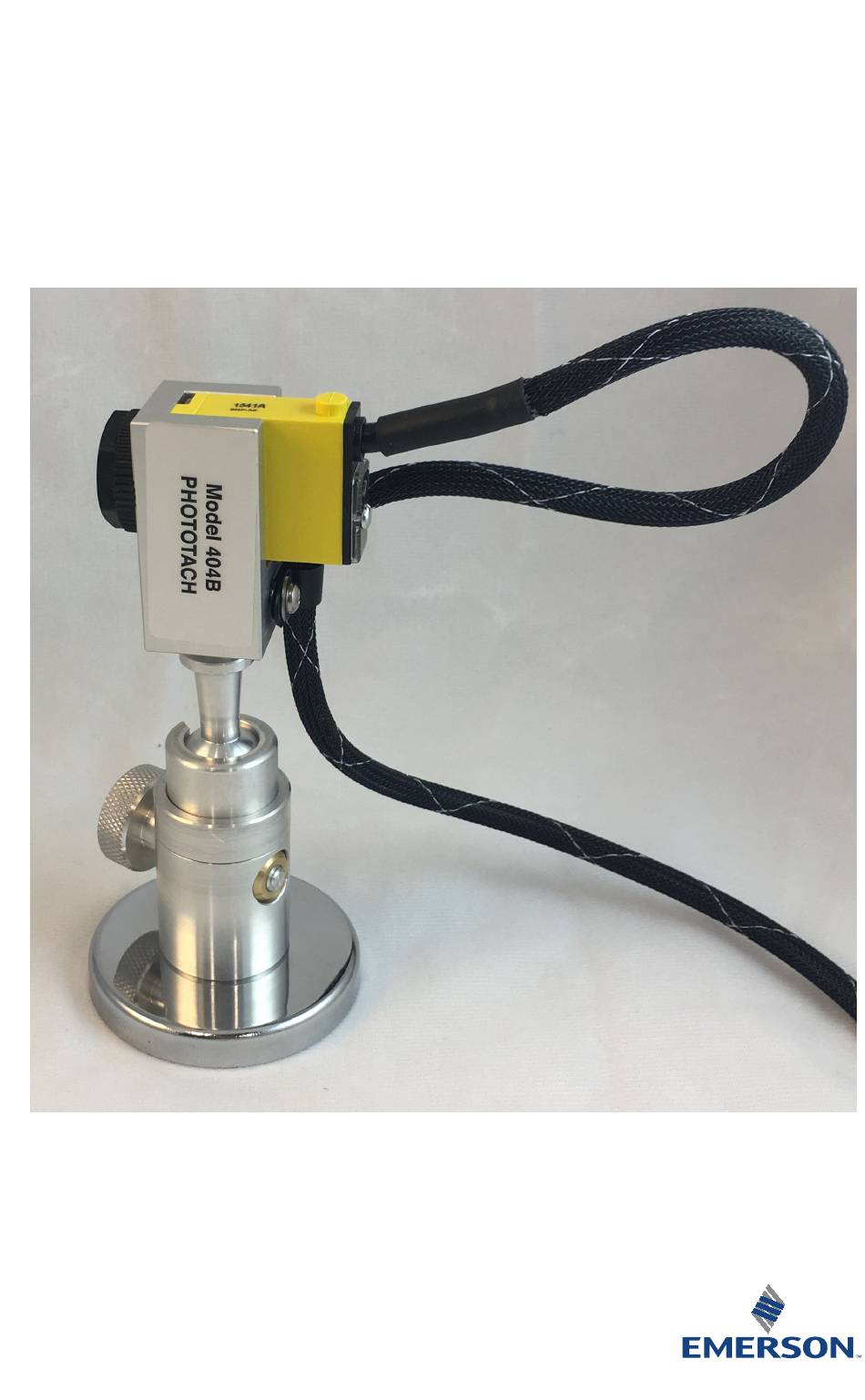

The 404B Infrared Phototach is intended to be used with an AMS 2140 Machinery Health Analyzer, with or without an optional 408 battery pack. The 404B Infrared Phototach can be powered directly from an AMS 2140 Machinery Health Analyzer with the cable provided in the package. - Page 4 Figure 1-1: Emerson 404B Infrared Phototach Overview This document describes the basic connections and set up for the 404B Infrared Phototach. Refer to the AMS 2140 Machinery Health Analyzer User Guide for detailed instructions for data collection. Clean the product To clean the exterior of the phototach or battery pack, use only a dry, lint- free towel or cloth dampened with a mild soap and water solution.
- Page 5 June 2018 Quick Start Guide Return of materials If you need to return the device to an Emerson Product Service Center for maintenance, contact Emerson Product Support to obtain a Return Materials Authorization (RMA) number and receive additional instructions. Emerson Product Support contact information: Phone Toll free 800.833.8314 (U.S.
-
Page 6: Charge The 408 Battery Pack
Quick Start Guide June 2018 Charge the 408 battery pack Topics covered in this chapter: • Test the 408 battery pack • Charge the 408 battery pack Test the 408 battery pack Before charging, test the battery pack to see if it has already been charged. Procedure 1. - Page 7 Charge the 408 battery pack The 404B Infrared Phototach can be powered directly from an AMS 2140 Machinery Health Analyzer using the cable provided in the package. However, for extended use the 404B Infrared Phototach can be powered from the 408 battery pack.
- Page 8 Quick Start Guide June 2018 Figure 2-3: 408 battery pack wiring diagram Procedure 1. Find the appropriate power cable for your use in your country. 2. Connect the smaller end of the power charger cable to the connector labeled CHARGER on the 408 battery pack. Note The power charger may not insert completely into the 408 battery pack.
- Page 9 June 2018 Quick Start Guide Figure 2-4: 408 battery pack with charger connected 3. Plug the power cable into an AC wall socket. Allow two hours for complete charging. MHM-97921, Rev 0...
-
Page 10: Connect The 404B Infrared Phototach
June 2018 Connect the 404B Infrared Phototach Topics covered in this chapter: • Connect the 404B Infrared Phototach to the AMS 2140 using the 408 battery pack • Connect the 404B Infrared Phototach to the AMS 2140 without using the... - Page 11 At that point the cable is connected. 5. Turn the power switch on the 408 battery pack to the ON position by pushing the power switch to the left. 6. The infrared light on the 404B Infrared Phototach is illuminated. MHM-97921, Rev 0...
- Page 12 AMS 2140 Machinery Health Analyzer Tachometer Setup screen. See the AMS 2140 Machinery Health Analyzer User Guide for more information. Follow these steps to connect the 404B Infrared Phototach to the AMS 2140 Machinery Health Analyzer without using the 408 battery pack. Procedure 1.
- Page 13 Quick Start Guide Figure 3-4: 404B Infrared Phototach cable connected to the AMS 2140 Machinery Health Analyzer via the VOLTS/TACH connector 2. Connect the other end of the tach cable to the connector for the 404B Infrared Phototach. MHM-97921, Rev 0...
- Page 14 Quick Start Guide June 2018 Figure 3-5: Tach cable connected to the 404B Infrared Phototach cable 3. The infrared light on the 404B Infrared Phototach is illuminated. The 404B Infrared Phototach is shown below with the infrared light illuminated. MHM-97921, Rev 0...
- Page 15 June 2018 Quick Start Guide Figure 3-6: 404B Infrared Phototach with infrared light illuminated MHM-97921, Rev 0...
-
Page 16: Set Up The 404B Infrared Phototach
Use the reflective tape provided as your fixed reference to be able to start collecting data from rotating equipment. Proper operation of the 404B Infrared Phototach requires it to be mounted securely and properly aligned. There is a red light on the back of the 404B Infrared Phototach that indicates MHM-97921, Rev 0... - Page 17 Figure 4-2: 404B Infrared Phototach properly positioned for use If a pulse is not detected, change the angle of the 404B Infrared Phototach to 10 to 15 degrees off a line perpendicular to the reflective tape. If the 404B Infrared Phototach signals are erratic, you may need to adjust the gain on the 404B Infrared Phototach: 1.
- Page 18 Note Refer to the Balancing chapter of the AMS 2140 Machinery Health Analyzer User Manual for more operating instructions for the 404B Infrared Phototach. MHM-97921, Rev 0...
-
Page 19: Technical Data
June 2018 Quick Start Guide Technical data Table 5-1: 404B Infrared Phototach Technical Specifications Power 5 to 15 VDC at <25mA supplied by battery pack or AMS 2140 Machinery Health Analyzer Light source Infrared/reflective Maximum standoff distance <= 0.9 m (3 feet) target dependent... - Page 20 Quick Start Guide June 2018 Table 5-2: 408 battery pack Technical Specifications Supply voltage range 110-220 VAC. AC power is connected to the 408 battery pack to charge the batteries only. Frequency range 50-60 Hz Output power 15 VDC. DC low voltage connections Output current <25mA Maximum current draw...
-
Page 21: Product Certifications
A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at www.emerson.com. Electro Magnetic Compatibility (EMC) (2014/30/EU) Emerson complies with the EMC Directive. - Page 22 Quick Start Guide June 2018 Declaration of Conformity MHM-97921, Rev 0...
- Page 23 June 2018 Quick Start Guide MHM-97921, Rev 0...
- Page 24 June 2018 © Emerson 2018, Emerson. 835 Innovation Drive All rights reserved. The Emerson logo is a Knoxville, TN 37932 USA trademark and service mark of Emerson Electric Co. T +1 865-675-2400 All other marks are property of their respective F +1 865-218-1401 owners.
