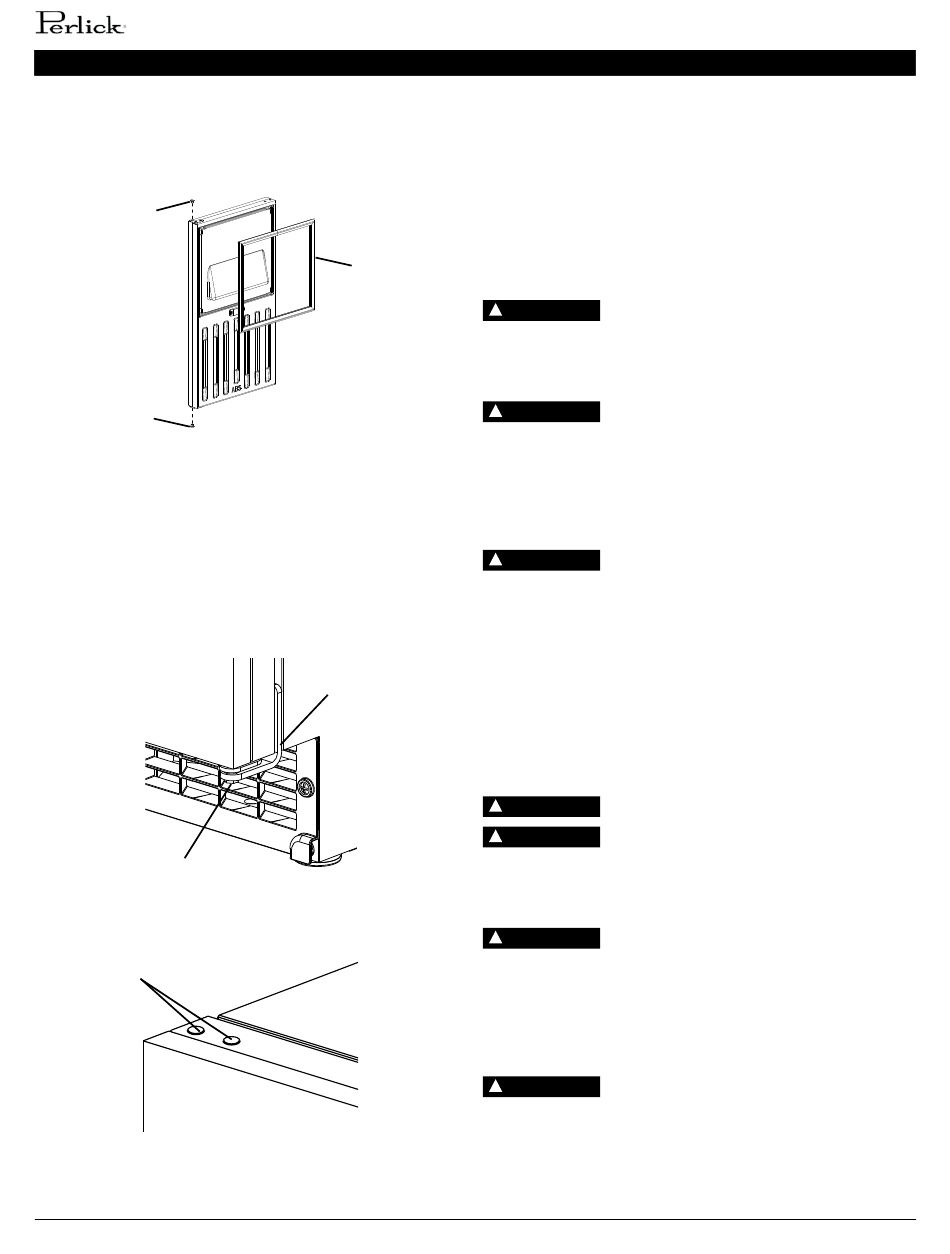

8. Replace the door gasket in its proper orientation.
Reinsert the bushings into hinge (C1) and hinge (C2)
(the hinges attached to the door) (See Fig. 20).
Bushing
Bushing
9. Attach the door to hinge (A), then continue to maintain
a hold on the door. Screw the hinge stop pin into hinge
(B) until it is tight (See Fig. 21).
10. Insert the 2 canoe clips included in the accessory bag
into the holes on top of the door (See Fig. 22).
Hinge Stop Pin
Canoe Clips
Fig. 22
18 | perlick.com/residential
Gasket
Fig. 20
Hinge (B)
Fig. 21
PERLICK RESIDENTIAL ICE MAKER MANUAL

SETUP

1. Position the appliance in the selected permanent
location.
2. Level the appliance from side-to-side and front-to-rear
by adjusting the feet.

ELECTRICAL CONNECTION

DANGER
Electrical connection must meet national,
!
state, and local electrical code requirements. Failure to meet
these code requirements could result in death, electric shock,
serious injury, fire, or damage.
DANGER
The appliance requires an independent
!
power supply of proper capacity. See the nameplate for
electrical specifications. Failure to use an independent power
supply of proper capacity can result in a tripped breaker,
blown fuse, damage to existing wiring, or component failure.
This could lead to heat generation or fire.
DANGER
THE APPLIANCE MUST BE GROUNDED:
!
The appliance is equipped with a NEMA 5-15 three-prong
grounding plug to reduce the risk of potential shock hazards.
It must be plugged into a properly grounded, independent
3-prong wall outlet. If the outlet is a 2-prong outlet, it is your
personal responsibility to have a qualified electrician replace
it with a properly grounded, independent 3-prong wall outlet.
Do not remove the ground prong from the power cord and
do not use an adapter plug. Failure to properly ground the
appliance could result in death or serious injury.
DANGER Do not use an extension cord.
!
DANGER
To reduce the risk of electric shock, do not
!
touch the control switch or plug with damp hands. Make sure
the control switch is in the "OFF" position before plugging in
or unplugging the appliance.
DANGER
Do not use an appliance with a damaged
!
power cord. The power cord should not be altered, jerked,
bundled, weighed down, pinched, or tangled. Such actions
could result in electric shock or fire. To unplug the appliance,
be sure to pull the plug, not the cord, and do not jerk the
cord.
DANGER
The GREEN ground wire in the factory-
!
installed power cord is connected to the appliance. If it
becomes necessary to remove or replace the power cord, be
sure to connect the power cord's ground wire to this screw
upon reattachment.
