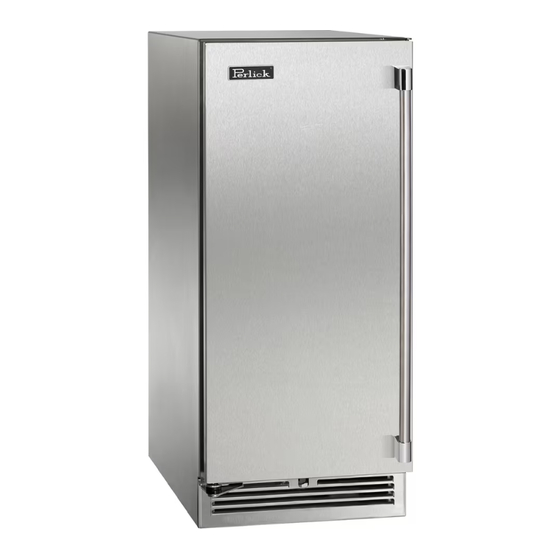

Refrigerator
Refrigerated Drawers
Beer Dispenser
Beverage Center
Wine Reserve

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15" Signature series and is the answer not in the manual?

Questions and answers

Summary of Contents for Perlick 15" Signature series

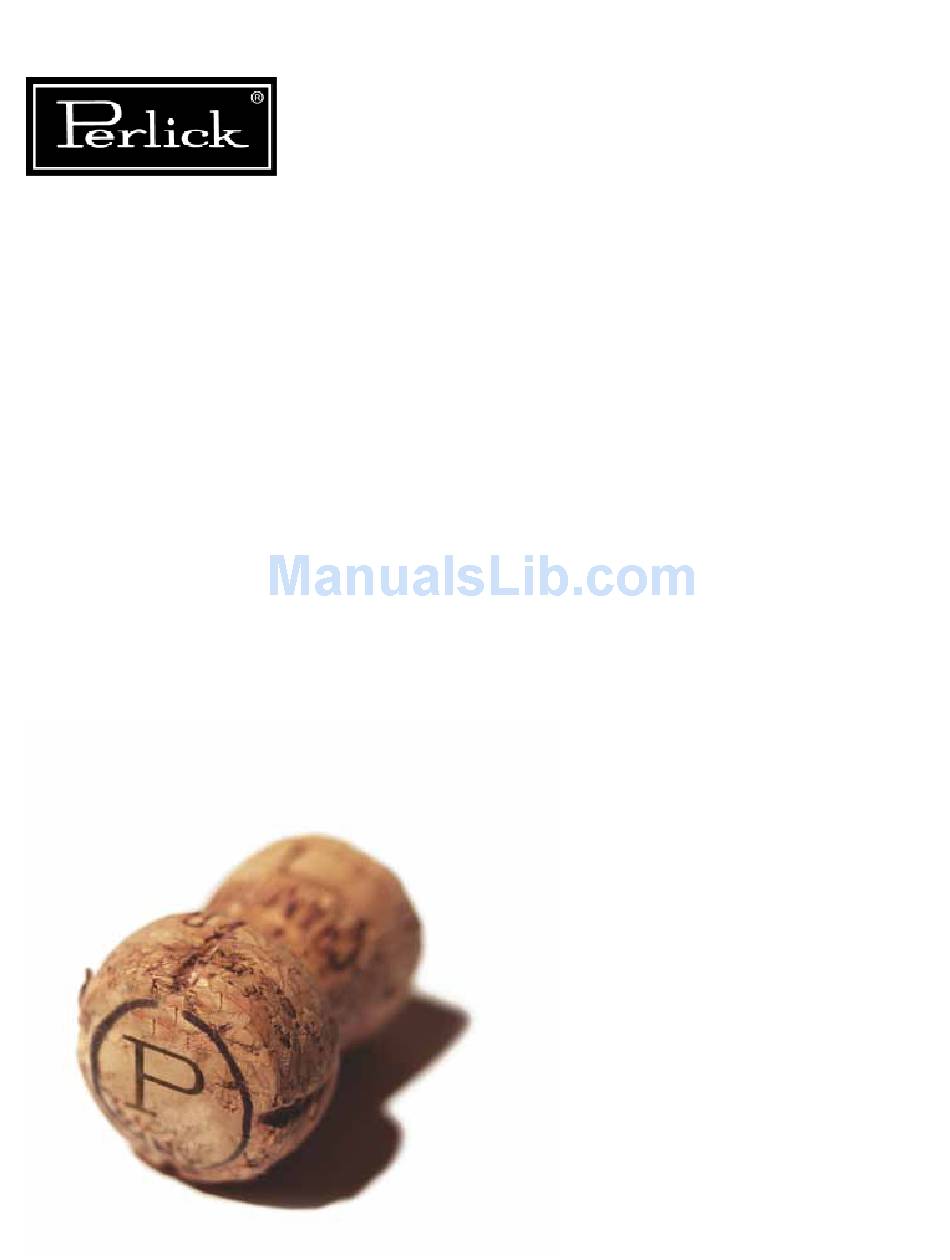

  • Page 1 Installation & Operation Manual 15” Signature Series Refrigerator Refrigerated Drawers Beer Dispenser Beverage Center Wine Reserve...
  • Page 3: Introduction

    If you do not complete your Warranty Registration Card on-line or have questions that are not addressed here, call 800 return via U.S. mail, Perlick will use the date of sale as the first date 558-5592. of warranty for your new Refrigerated Cabinet. Please record the purchase date of your Perlick product and your dealer’s name, ad-...
  • Page 4: Table Of Contents

    Table of Contents INTRODUCTION ..................................3 YOuR MODel’s INfORMatION ............................3 WaRRaNtY RegIstRatION CaRD ............................. 3 taBle Of CONteNts ................................4 geNeRal pReCautIONs ............................... 5 INSTALLATION INSTRUCTIONS fIguRe 1. INstallatION speCIfICatIONs ........................6 pRepaRINg the spaCe ................................7 pRepaRINg eleCtRICal CONNeCtIONs ........................7 uNpaCkINg aND MOvINg ..............................
  • Page 5: General Precautions

    Obstructing free airflow can cause unit to malfunction, and may void the warranty. CAUTION Use only genuine Perlick replacement parts. Imitation parts can damage the unit, and may void the warranty. INSTALLATION INSTRUCTIONS General • All electrical instructions assume that outlet...
  • Page 6 figure 1. 15” signature series Dimensions © 2011 15” Cabinet Installation / Operation Manual Document No. Z2305...
  • Page 7: Preparing The Space

    3. Before moving unit, secure door to unit with tape to the door closed. All Perlick units come equipped with a NEMA 5-15P 90° 4. Carefully move unit to installation site and plug with a minimum of 5-feet of cord extending be- place in front of opening.
  • Page 8: Anti-Tip-Over Installation

    ANTI-TIP BRACKETS INSTALLATION IMPORTANT NOTE: If installing on a concrete WARNING Unit may tip forward if loaded racks/shelves are floor, concrete fasteners are required and not all pulled out at the same time. To prevent tipping included with the anti-tip kit. and provide a stable installation, the unit must be secured in place with the anti-tip brackets pro- CAUTION...
  • Page 9: Shelving

    legs counterclockwise to raise the unit or clockwise to lower the unit. Countertop should be resting on top of the unit. IMPORTANT NOTE: If countertop is not resting en- tirely on unit top, shim the countertop to prevent damage to the countertop. CAUTION To prevent damage to the countertop and unit underneath, do not place heavy objects on coun-...
  • Page 10: Door Options

    drawers.
  • Page 11: Door Reversing Instructions

    Milwaukee, WI 53223 THIS DOCUMENT/PUBLICATION/SOFTWARE/DRAWING CONTAINS PROPRIETARY INFORMATION WHICH IS THE PROPERTY OF THE PERLICK CORPORATION. IT MAY NOT BE REPRODUCED OR TRANSMITTED IN ANY FORM, ELECTRONIC OR MECHANICAL, INCLUDING PHOTOCOPYING, RECORDING, OR USED IN ANYINFORMATION STORAGE, TRANSMISSION, OR RETRIEVAL SYSTEM, WITHOUT WRITTEN PERMISSION FROM THE PERLICK CORPORATION COPYRIGHT 2001 PERLICK CORPORATION.
  • Page 12: Handle Installation

    IMPORTANT NOTE: Contact the factory or visit CAUTION www.perlick.com for full-size wood overlay panel Proper wood working materials and equipment layouts. should be used to avoid damage or errors in workmanship.
  • Page 13: Figure 6. Solid Wood Overlay

    figure 6. sOlID WOOD OveRlaY paNel © 2011 15” Cabinet Installation / Operation Manual Document No. Z2305...
  • Page 14 figure 6-a. lOCk INstallatION -sOlID WOOD OveRlaY paNel © 2011 15” Cabinet Installation / Operation Manual Document No. Z2305...
  • Page 15 figure 7. WOOD OveRlaY, glass DOOR paNel © 2011 15” Cabinet Installation / Operation Manual Document No. Z2305...
  • Page 16 figure 7-a. lOCk INstallatION -WOOD OveRlaY, glass DOOR paNel © 2011 15” Cabinet Installation / Operation Manual Document No. Z2305...
  • Page 17 figure 8. sOlID WOOD OveRlaY DRaWeRs © 2011 15” Cabinet Installation / Operation Manual Document No. Z2305...
  • Page 18 figure 8-a. lOCk INstallatION -sOlID WOOD OveRlaY DRaWeRs © 2011 15” Cabinet Installation / Operation Manual Document No. Z2305...
  • Page 19: Operation

            figure 9. WOODeN WINe  RaCk tRIM DesIgN                       Interior light ...
  • Page 20: Chart 1. Product Temperature Set Points And Ranges

    CAUTION Checking Product Temperature Always ensure lens cover is closed before clos- ing the door to avoid damage to the controller or to accurately check the temperature of the prod- lens. uct stored in a refrigerated compartment, insert an accurate thermometer into a sealable plastic (non- the display will read Off when unit is off, and will breakable) bottle, partially filled with water.
  • Page 21: Temperature Control Adjustments

    TEMPERATURE CONTROLLER © 2011 15” Cabinet Installation / Operation Manual Document No. Z2305...
  • Page 22 © 2011 15” Cabinet Installation / Operation Manual Document No. Z2305...
  • Page 23 © 2011 15” Cabinet Installation / Operation Manual Document No. Z2305...
  • Page 24: Maintenance Cleaning

    15-Watt bulb or smaller. perlick Replace- ment Bulb Number 67026. © 2011 15” Cabinet Installation / Operation Manual Document No. Z2305...
  • Page 25: Troubleshooting

    TROUBLESHOOTING BEFORE CALLING FOR SERVICE If the unit appears to be malfunctioning, read through NORMAL OPERATION first. If the problem persists, check the TROUBLESHOOTING GUIDE. Locate the problem in the guide and refer to the cause and its rem- edy before calling for service. The problem could be something, which can be solved without a service call.
  • Page 26 • Check the model and serial number of your unit located on the label attached to the inside top of the cabinet. then call your perlick factory authorized service Center. for the location of the service Center in your area, contact your dealer, inquire via the WeB at www.perlick.com, or write to: perlick Corporation, © 2011 15” Cabinet Installation / Operation Manual...
  • Page 27: Warranty

    TERMS: the perlick Warranty applies to products installed in the fifty united states, the District of Columbia or the ten provinces of Canada. all service provided by perlick Corporation under the above warranty must be performed by authorized perlick service representatives, unless otherwise specified by perlick.
  • Page 28 Corporation shall have no liability whatsoever for any incidental, conse-...
  • Page 29 © 2011 15” Cabinet Installation / Operation Manual Document No. Z2305...
  • Page 30 8300 W. Good Hope Road • Milwaukee, WI 53223 • 1-800-558-5592 • Fax: 414-353-7069 • www.perlick.com Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without warning. Document No. Z2305 © 2011 15” Cabinet Installation / Operation Manual...
