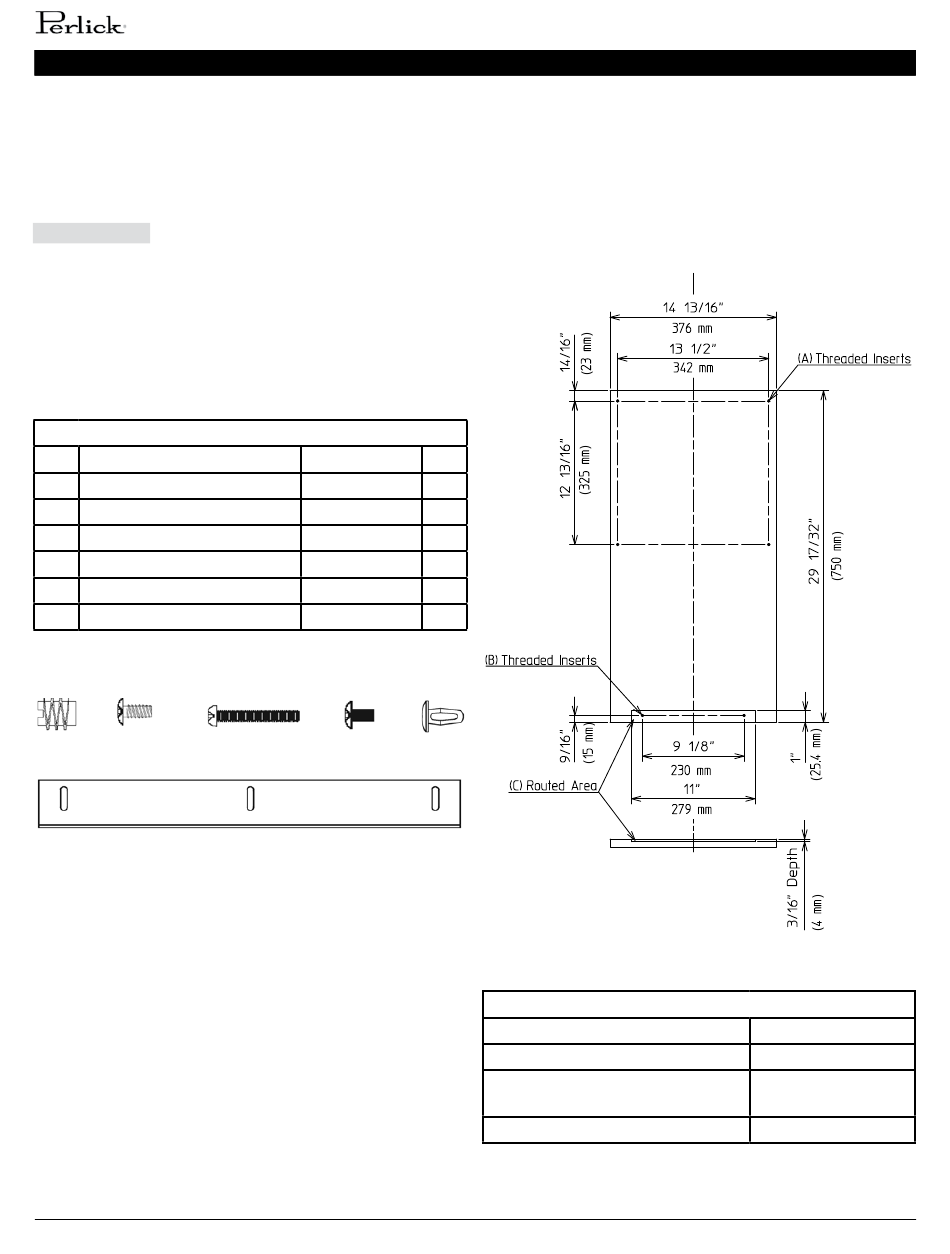

Perlick SIGNATURE Series Product Manual page 12

2. H50IMW, H50IMW-AD
OVERLAY PANEL FABRICATION AND
ATTACHMENT
CAUTION
The overlay panel must be crafted by a
professional cabinet maker to ensure quality results.
PARTS
Ensure that all parts required for the overlay panel
assembly are contained in the accessories bag.
Overlay Panel Parts
No. Description
1 Threaded Wood Insert
2 T2 Screw 4×8 SS
3 Pan Head Screw M4×25 SS
4 Truss Head Screw M4×8 SS
5 Canoe Clip
6 Sheet Metal Bracket
1 2
12 | perlick.com/residential
INSTALLATION INSTRUCTIONS
Part Number
4A4004-01
7P32-0408
7C12-0425
7C32-0408
4A5835-01
4A3998-01
4
3
6
OVERLAY PANEL SPECIFICATION
Use the specification that applies to your appliance
(H80CIMW or H80CIMW-AD) and the directions that
follow to prepare your overlay panel.
H50IMW
Qty.
6
3
4
2
2
1
5
H50IMW Overlay Panel Specification
Panel Height
Panel Width
Panel Thickness
Panel and Door Weight (total)
PERLICK RESIDENTIAL ICE MAKER MANUAL
( )
( )
( )
(
)
29 17/32" (750 mm)
14 13/16" (376 mm)
5/8" (16 mm) min;
3/4" (19 mm) max
20 lb. (9 kg) max
