WARNING
Ensure that the back surface of overlay panel
is flat before attaching.

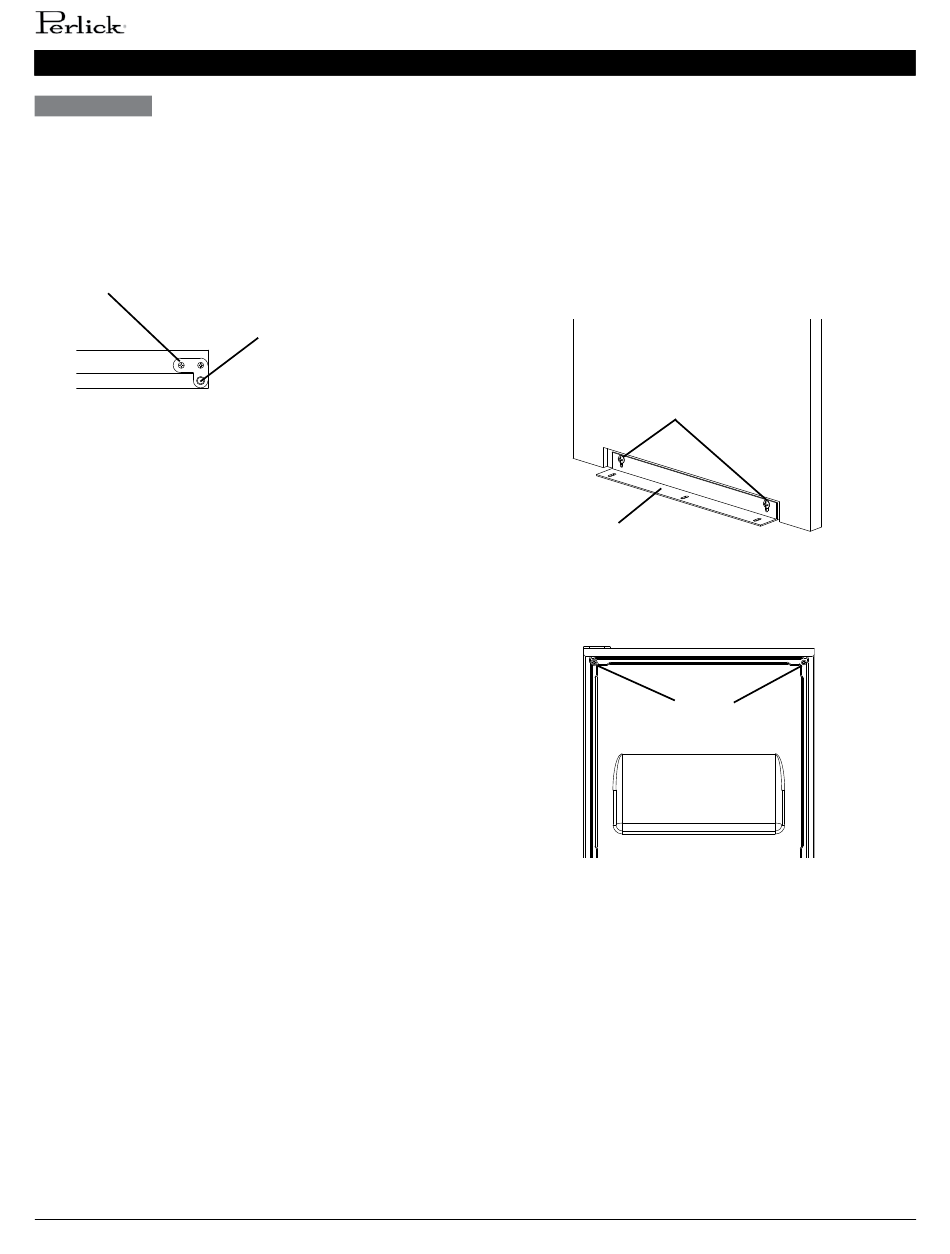

14. Mark the center point of the hinge (C1) and hinge (C2)
holes that extend over the overlay panel. See Fig. 12.
Fig. 12
Hinge
15. Remove the overlay panel from the door.
16. Drill 3/8" diameter holes 1/4" (7 mm) deep where you
marked on the overlay panel to accomodate the hinge
(C1) and hinge (C2) bushings.
16 | perlick.com/residential
INSTALLATION INSTRUCTIONS
Mark the center point.
PERLICK RESIDENTIAL ICE MAKER MANUAL
ATTACHMENT OF OVERLAY PANEL TO
DOOR
1. Fasten the sheet metal bracket to the overlay panel
using the two M4×8 truss head screws provided. Snug
the screws, but do not tighten (See Fig. 13).
2. Temporarily fasten the overlay panel to the door using
2 of the M4×25 pan head screws provided (See Fig. 14).
Overlay Panel
Snug the screws,
but do not tighten.
Sheet Metal Bracket
Fig. 13
Screws
Fig. 14
