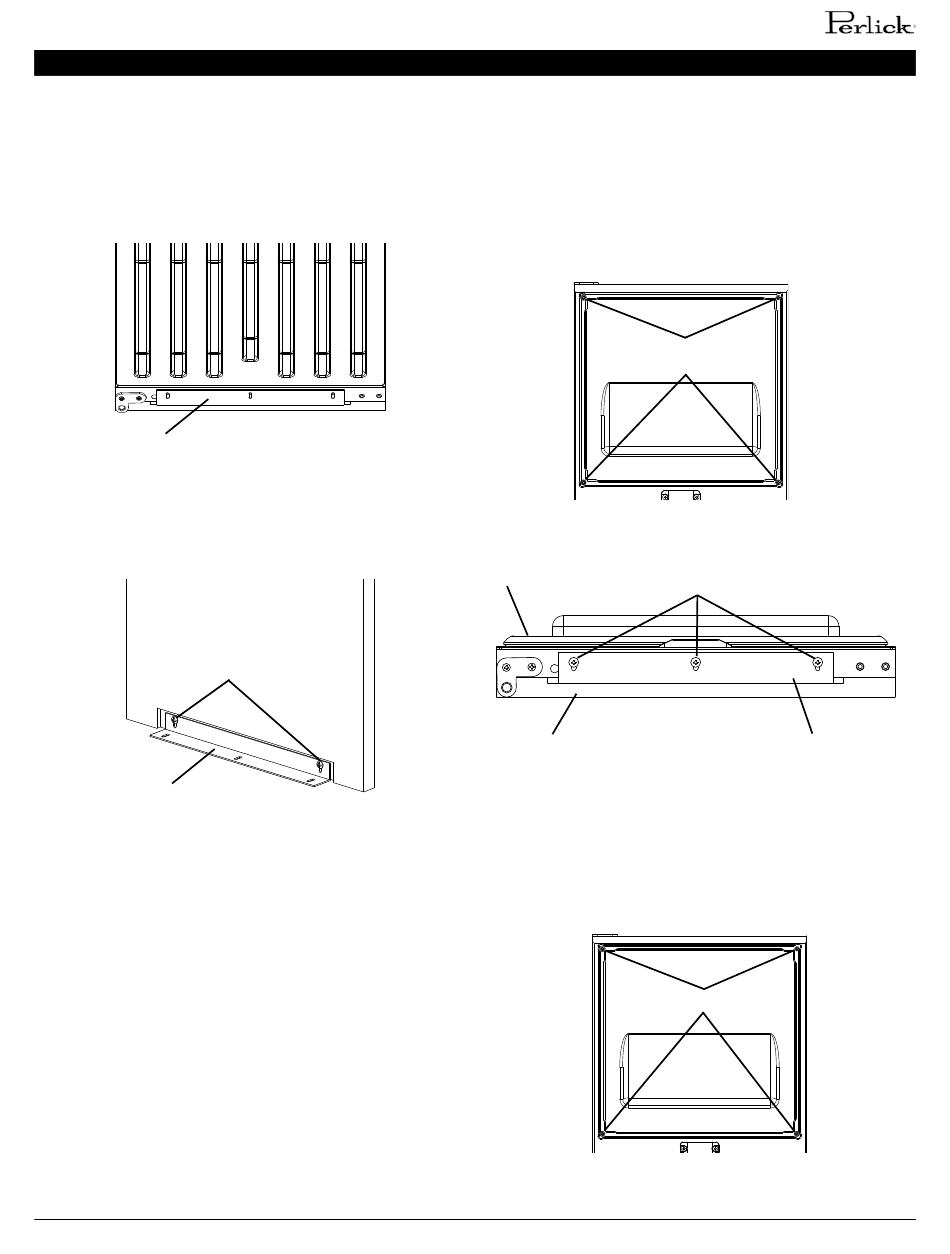

3. Adjust the sheet metal bracket so that it is flush with
the bottom of the door (See Fig. 15).
4. Remove the overlay panel from the door and tighten
the two M4×8 truss head screws securing the sheet
metal bracket to the overlay panel (See Fig. 16).
Sheet Metal Bracket
Overlay Panel
Tighten the screws.
Sheet Metal Bracket
INSTALLATION INSTRUCTIONS
Door
Fig. 15
Fig. 16
5. Fasten the overlay panel to the door using the four
M4×25 pan head screws provided. Snug the screws,
but do not tighten (See Fig. 17).
6. Fasten the sheet metal bracket to the bottom of the
door with the three T2 screws provided. Tighten the
screws to the door (See Fig. 18).
Snug the screws,
but do not tighten.
Fig. 17
Door
Overlay Panel
7. Tighten the four M4×25 pan head screws installed in
step 5 (See Fig. 19).
Tighten the screws.
perlick customer service (800)558-5592 | 17
Screws
Sheet Metal Bracket
Fig. 18
