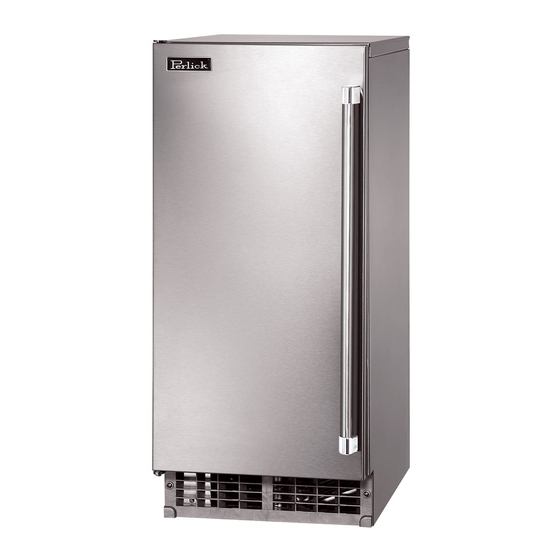

Perlick H50IMS-L Product Manual

Perlick H50IMS-L Product Manual

Self-contained ice maker
Hide thumbs Also See for H50IMS-L:

Advertisement

Quick Links

PERLICK
SELF-CONTAINED ICE MAKER
MODELS:
H50IMS-R
H50IMS-L
H50IMW
H50IMS-ADL
H50IMS-ADR
H50IMW-AD
PRODUCT MANUAL
Issued: 11-2-2009

Advertisement

Table of Contents
loading

Summary of Contents for Perlick H50IMS-L

  • Page 1 PERLICK SELF-CONTAINED ICE MAKER MODELS: H50IMS-R H50IMS-L H50IMW H50IMS-ADL H50IMS-ADR H50IMW-AD PRODUCT MANUAL Issued: 11-2-2009...
  • Page 2: Table Of Contents

    IMPORTANT This manual should be read carefully before the icemaker is installed and operated. Only qualified service technicians should install, service, and maintain the icemaker. Read the warnings contained in this booklet carefully as they give important information regarding safety. Please retain this booklet for any further reference that may be necessary.
  • Page 3: Important Safety Information

    Important Safety Information Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, or damage to the unit. WARNING Indicates a hazardous situation which could result in death or serious injury. CAUTION Indicates a situation which could result in damage to the unit.
  • Page 4: Specifications

    I. Specifications A. Construction Top Panel Ice Making Mechanism Bin Control Thermostat Bulb Scoop Holder Slope Magnet Catch Front Panel Control Switch Door Power Cord Louver...
  • Page 5: Nameplate Rating

    B. Nameplate Rating PERLICK ICE MAKER MODEL NUMBER H50IMS-R SERIAL NUMBER AC SUPPLY VOLTAGE 115-120/60/1 AMPERES 3.4 AMPS DESIGN PRESSURE HI-240PSI LO-120PSI REFRIGERANT 134a 4.2 oz. MOTOR-COMPRESSOR THERMALLY PROTECTED APPROVED FOR OUTDOOR USE Perlick Corp. Milwaukee, WI 53223 www.bringperlickhome.com ICE MAKER 946Z Note: Only the "MODEL NUMBER"...
  • Page 6: Dimensions/Connections

    C. Dimensions/Connections 1. H50IMS-R, H-50IMS-L...
  • Page 7: H50Imw

    2. H50IMW...
  • Page 8: H50Ims-Adl, H50Ims-Adr

    3. H50IMS-ADL, H50IMS-ADR...
  • Page 9: H50Imw-Ad

    4. H50IMW-AD...
  • Page 10: Installation And Operating Instructions

    II. Installation and Operating Instructions WARNING 1. This icemaker must be installed in accordance with applicable national, state, and local regulations. 2. CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after installation. Make sure that none have fallen into the storage bin.
  • Page 11: Built-In Installation Site

    2. Built-In Installation Site CAUTION 1. Do not let the weight of the counter rest on the icemaker. 2. Do not install the icemaker in a corner where the door will interfere with other equipment or where the icemaker cannot be pulled out for service. Installation Space Model Height...
  • Page 12: Door Overlay Panel Fabrication And Attachment (H50Imw, H50Imw-Ad)

    C. Door Overlay Panel Fabrication and Attachment (H50IMW, H50IMW-AD) IMPORTANT The overlay panel must be crafted by a professional cabinet maker to ensure quality results. (1) Parts Ensure that all parts required for the overlay panel assembly are contained in the accessories bag.
  • Page 13 (2) Overlay Panel Specification Use the specification that applies to your icemaker (H50IMW or H50IMW-AD) and the directions that follow to prepare your overlay panel. (a) H50IMW H50IMW Overlay Panel Specification Overlay Panel Height 29 17/32" (750 mm) Overlay Panel Width 14 13/16"...
  • Page 14 (b) H50IMW-AD H50IMW-AD Overlay Panel Specification Overlay Panel Height 27 9/16" (700 mm) Overlay Panel Width 14 13/16" (376 mm) Overlay Panel Thickness 5/8" (16 mm) minimum; 3/4" (19 mm) maximum Overlay Panel and Door Weight (total) 20 lb. (9 kg) maximum...
  • Page 15 Otherwise, the overlay panel cannot be properly fastened to the door. 4) Mount the door handle hardware. Perlick recommends that the door handle hardware be mounted on the edge opposite of the door hinge side (optional hinge reversal is covered in step 6).
  • Page 16 6) If you would like to reverse the door hinges, do the following: a) Remove "hinge (A)-left" from the accessory bag. b) Remove the 2 screws securing the top panel, then lift it off. See Fig. 4. c) Remove hinge (A)-right and the bracket from the right side of the unit. Set aside hinge (A)-right;...
  • Page 17 7) Remove the bushings from hinge (C1) and hinge (C2) (the hinges attached to the door). See Fig. 9. 8) Remove the gasket from the door. See Fig. 10. Bushing Gasket Hinge Fig. 10 Fig. 9 9) Temporarily fasten the overlay panel to the door using 2 of the M4×25 pan head screws provided.
  • Page 18 (4) Attachment of Overlay Panel to Door 1) Fasten the sheet metal bracket to the overlay panel using the two M4×8 truss head screws provided. Snug the screws, but do not tighten. See Fig. 13. 2) Temporarily fasten the overlay panel to the door using 2 of the M4×25 pan head screws provided.
  • Page 19 7) Tighten the four M4×25 pan head screws installed in step 5. See Fig. 19. 8) Replace the door gasket in its proper orientation. Reinsert the bushings into hinge (C1) and hinge (C2) (the hinges attached to the door). See Fig. 20. Bushing Tighten the screws.
  • Page 20: Setup

    D. Setup 1) Position the icemaker in the selected permanent location. 2) Level the icemaker from side-to-side and front-to-rear by adjusting the feet. E. Electrical Connection WARNING 1. Electrical connection must meet national, state, and local electrical code requirements. Failure to meet these code requirements could result in death, electric shock, serious injury, fire, or severe damage to equipment.
  • Page 21: Water Supply And Drain Connections

    • A plumbing permit and services of a licensed plumber may be required in some areas. • External filters, strainers, or softeners may be required depending on water quality. Contact your local Perlick distributor for recommendations. • Water supply inlet is 1/2" female pipe thread (FPT).
  • Page 22: Final Checklist

    G. Final Checklist WARNING CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are securely in place after installation. Make sure that none have fallen into the storage bin. 1) Is the icemaker level? 2) Is the icemaker in a site where the ambient temperature is within 45°F to 100°F (7°C to 38°C) and the water temperature within 45°F to 95°F (7°C to 35°C) all year around? 3) Have the shipping carton, tape, and packing material been removed from the icemaker?
  • Page 23: Startup

    H. Startup WARNING 1. All parts are factory-adjusted. Improper adjustments may adversely affect safety, performance, component life, and warranty coverage. 2. If the icemaker is turned off, wait for at least 3 minutes before restarting the icemaker to prevent damage to the compressor. 3.
  • Page 24: Cleaning And Maintenance

    A. Cleaning and Sanitizing Instructions Perlick recommends cleaning and sanitizing this unit at least once a year. More frequent cleaning and sanitizing, however, may be required in some existing water conditions.
  • Page 25 3) Inside the storage bin, disconnect the suction tube by squeezing the tabs and pulling the tube clear. See Fig. 26. Allow the water tank to drain. 4) Reconnect the suction tube as illustrated. See Fig. 27. Make sure the tabs lock into place;...
  • Page 26: Sanitizing Solution

    3. Sanitizing Solution IMPORTANT For safety and maximum effectiveness, use the solution immediately after dilution. Dilute 0.5 fl. oz. (14.8 ml or 1 tbs) of a 5.25% sodium hypochlorite solution (chlorine bleach) with 1 gallon (3.8 l) of warm water. This is a minimum amount. Make more solution if necessary.
  • Page 27 7) Disconnect the discharge tube from the spray assembly, then slide out the spray assembly. See Fig. 32. 8) Remove the two caps. See Fig. 33. Discharge Tube Caps Spray Assembly Fig. 32 Fig. 33 9) Soak all of the removed parts and the scoop in the sanitizing solution for 10 minutes. If the spray assembly nozzles are clogged, clean them with a wire or a suitable brush.
  • Page 28 15) Reconnect the suction tube. 16) Hook each separator onto the rail, then pull it hard towards you until it locks into place. See Fig. 38. 17) Replace the slope in its correct position. See Fig. 39. Separator Slope Rail Fig.
  • Page 29: Maintenance

    B. Maintenance IMPORTANT This icemaker must be maintained individually, referring to the instruction manual and labels provided with the icemaker. 1. Stainless Steel Exterior To prevent corrosion, wipe the exterior occasionally with a clean and soft cloth. Use a damp cloth containing a neutral cleaner to wipe off oil or dirt build up. 2.
  • Page 30: Preparing The Icemaker For Long Storage

    C. Preparing the Icemaker for Long Storage CAUTION When storing the icemaker for an extended time or in sub-freezing temperatures, follow the instructions below to prevent damage. When the icemaker is not used for two or three days under normal conditions, it is sufficient to move the control switch to the "OFF"...
  • Page 31   Full One Year Warranty: one year                                     ...
