PERLICK RESIDENTIAL ICE MAKER MANUAL
H50IMW-AD

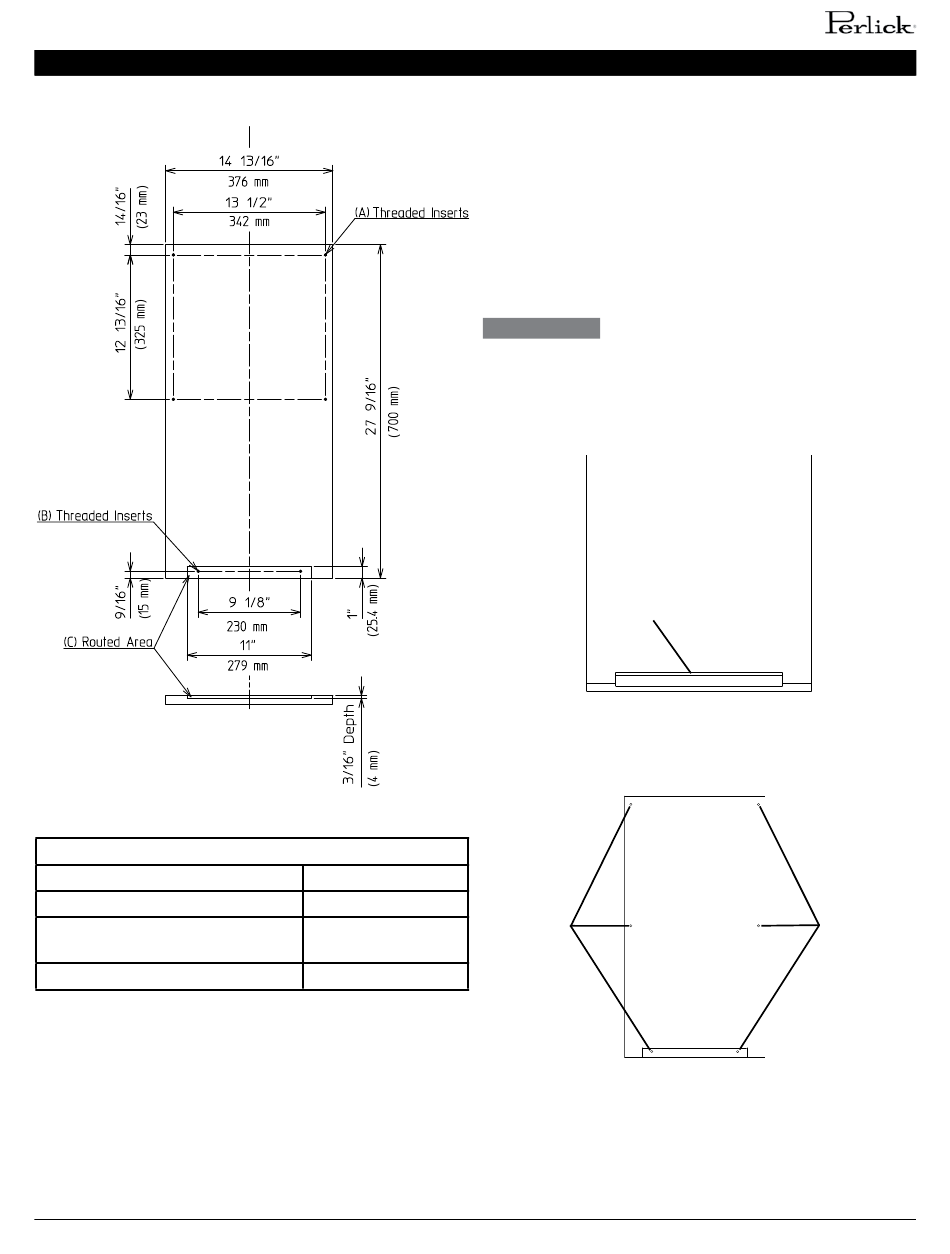

H50IMW-AD Overlay Panel Specification
Panel Height
Panel Width
Panel Thickness
Panel and Door Weight (total)
INSTALLATION INSTRUCTIONS
)
(
( )
(
)
)
(
27 9/16" (700 mm)
14 13/16" (376 mm)
5/8" (16 mm) min;
3/4" (19 mm) max
20 lb. (9 kg) max
FABRICATION OF OVERLAY PANEL
Fabricate the overlay panel as outlined in the specification on
the previous page and the instructions below.
1. Rout a channel at the bottom of the overlay panel
to the proper dimensions. See "(C) Routed Area" in the
specification diagram and Fig. 1.
2. Drill six 1/4" diameter (hardwood may require slightly
larger diameter) holes 3/8" (10 mm) deep in the
locations designated.
WARNING
Use care when drilling holes for mounting
hardware. All drilled holes must be straight and drilled to the
correct diameter and depth.
See "(A) Threaded Inserts" and "(B) Threaded Inserts" in
the specification diagram and Fig. 2.
Routed Channel
Holes
perlick customer service (800)558-5592 | 13
Fig. 1
Holes
Fig. 2
