PERLICK RESIDENTIAL ICE MAKER MANUAL

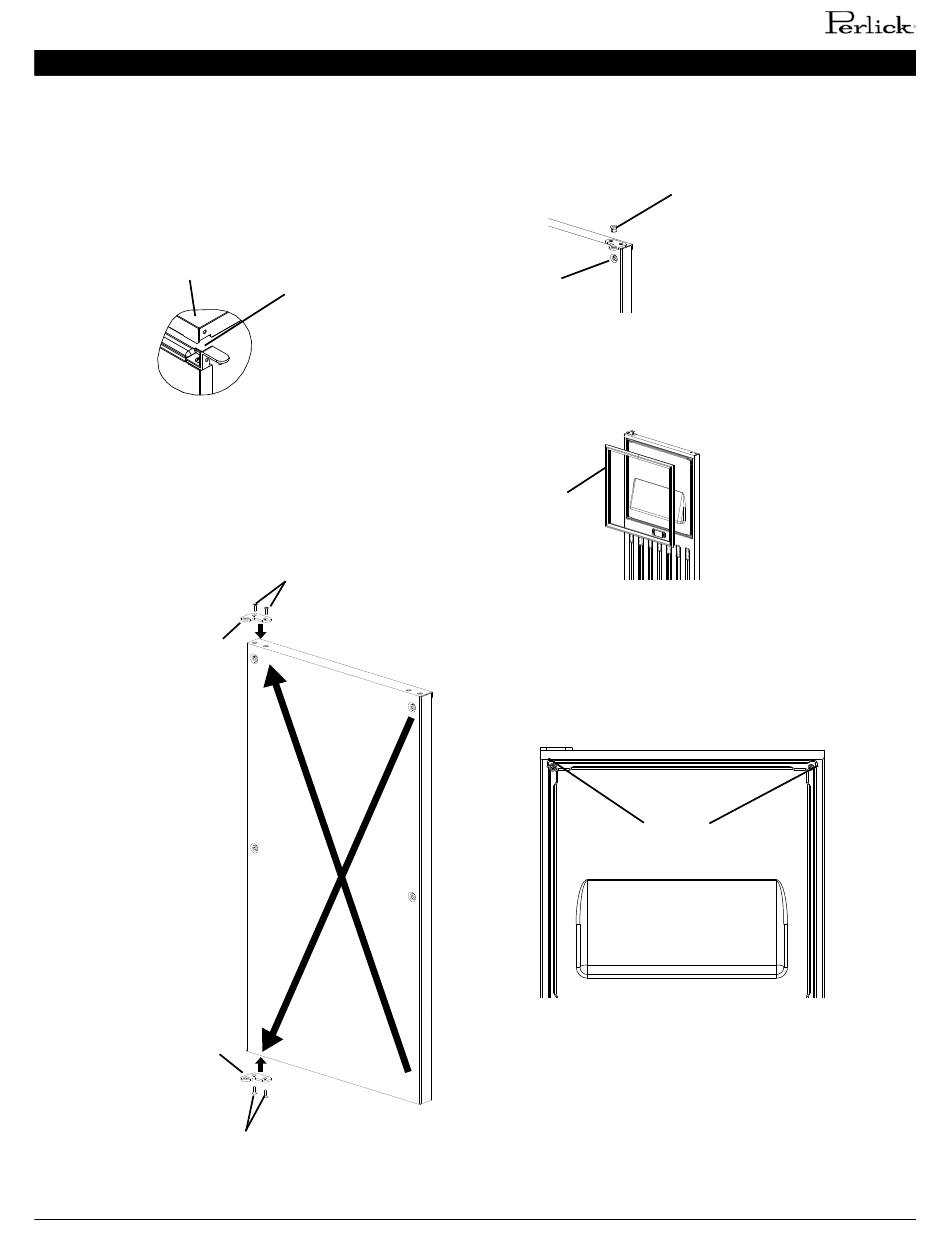

9. Rotate the top panel 180° from its previous position. This
brings the notch that was previously in the right rear to
the left front. See Fig. 7. Hook the rear part of the panel
on the body, then secure the front with the 2 screws
removed in step 6a.
Fig. 7
Top Panel
10. Remove hinge (C1) from the top right part of the door, flip
it and reattach to the bottom left. Remove hinge (C2) from
the bottom right part of the door, flip it and reattach to
the top left. See Fig. 8.
Fig. 8
Hinge (C2)
Hinge (C1)
INSTALLATION INSTRUCTIONS
Notch
Screws
Screws
11. Remove the bushings from hinge (C1) and hinge (C2)
(the hinges attached to the door). See Fig. 9.
Fig. 9
Bushing
Hinge
12. Remove the gasket from the door. See Fig. 10.
Fig. 10
Gasket
13. Temporarily fasten the overlay panel to the overlay
panel to the door using 2 of the M4x25 pan head screws
provided. See Fig. 11.
Fig. 11
Screws
