Perlick SIGNATURE Series Product Manual page 14

3. Screw the 6 threaded wood inserts into the 1/4" holes
drilled in the previous step. Make sure that the inserts
are threaded straight and that the tops of the inserts
are flush to the overlay panel surface. Otherwise, the
overlay panel cannot be properly fastened to the door.
4. Mount the door handle hardware. Perlick recommends
that the door handle hardware be mounted on the
edge opposite of the door hinge side (optional hinge
reversal is covered in step 6. Countersunk screw heads
are required to ensure that the hardware fasteners do
not interfere with the overlay panel fitting flush with
the door.

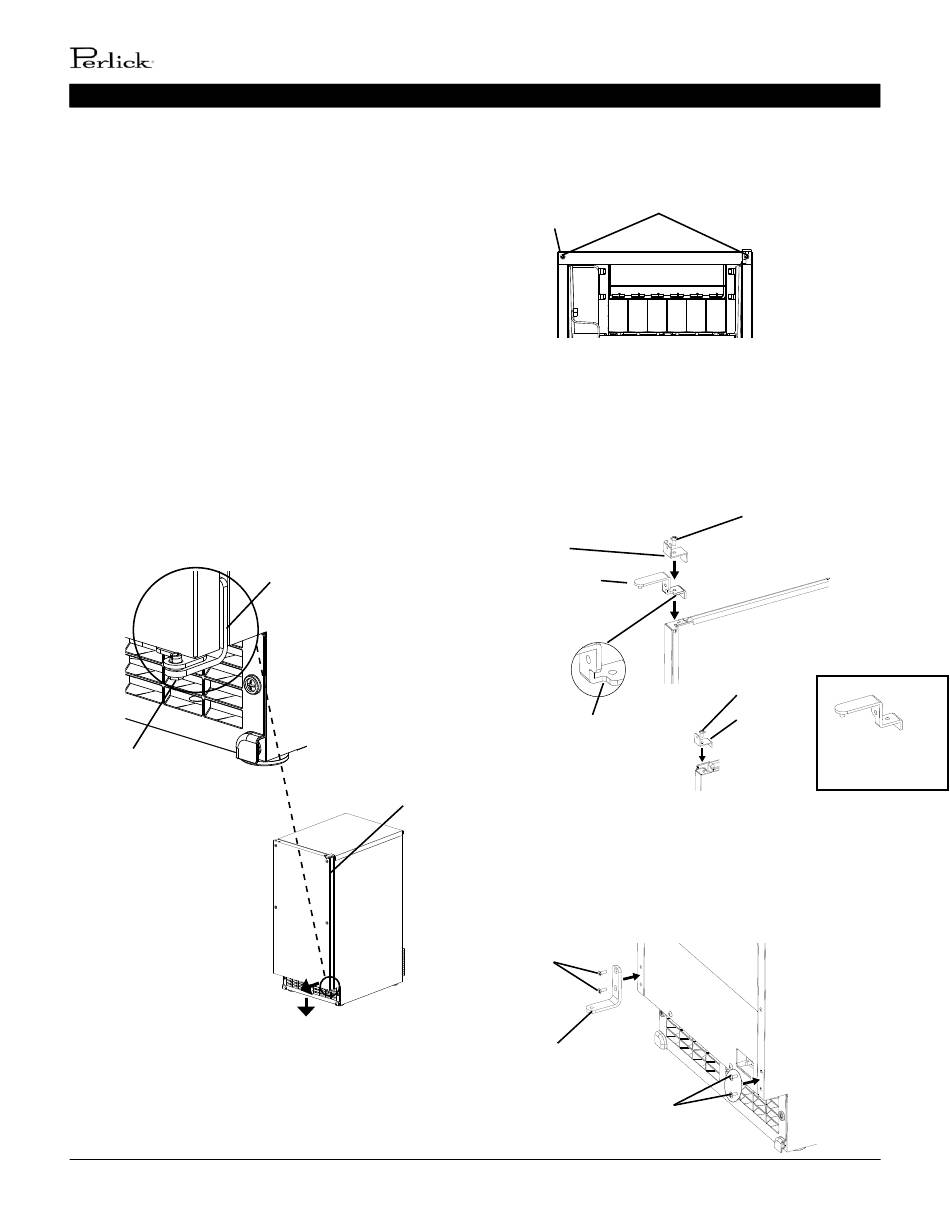

5. While maintaining a hold on the door, remove the
hinge stop pin from hinge (B). Pull out the bottom of
the door slightly and gently remove the door from
hinge (A) (See Fig. 3). If you are leaving the door right
hinged, skip to step 7. If you would like to reverse the
door hinges, proceed to step 6.
Fig. 3
Hinge Stop Pin
14 | perlick.com/residential
INSTALLATION INSTRUCTIONS
Hinge (B)
Hinge (A)
PERLICK RESIDENTIAL ICE MAKER MANUAL
6. Remove hinge (A)-left from the accessory bag. Remove the
2 screws securing the top panel, then lift it off. (See Fig. 4).
Fig. 4
Screws
Top Panel
7. Remove hinge (A)-right and the bracket from the right
side of the unit. Set aside hinge (A)-right; it is not needed.
Remove the top brace from the left side. Fasten hinge (A)-
left and the bracket to the left side and the top brace to
the right side. See Fig. 5. Note: When on the proper side,
the gasket notch for hinge (A) is to the inside.
Fig. 5
Bracket
Hinge (A) Left
Gasket Notch
8. Remove hinge (B) from the right side of the unit and the 2
filler screws from the left side. Attach the 2 filler screws to
the right side and attach hinge (B) to the left side.
(See Fig. 6).
Fig. 6
Screws
Hinge (B)
Filler
Screws
Screw
Screw
Top Brace
Hinge (A)-Right
Not Needed
