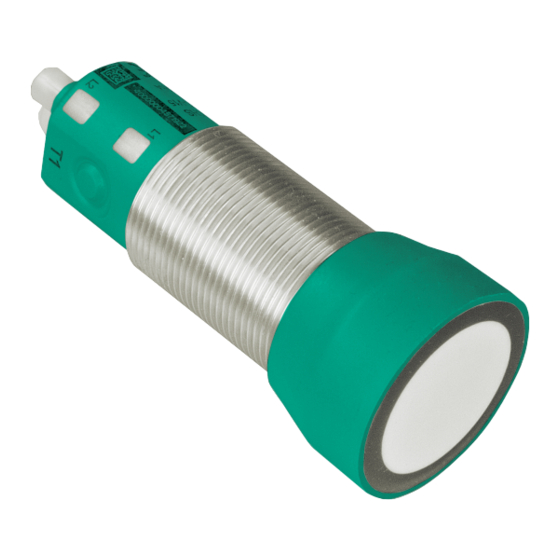

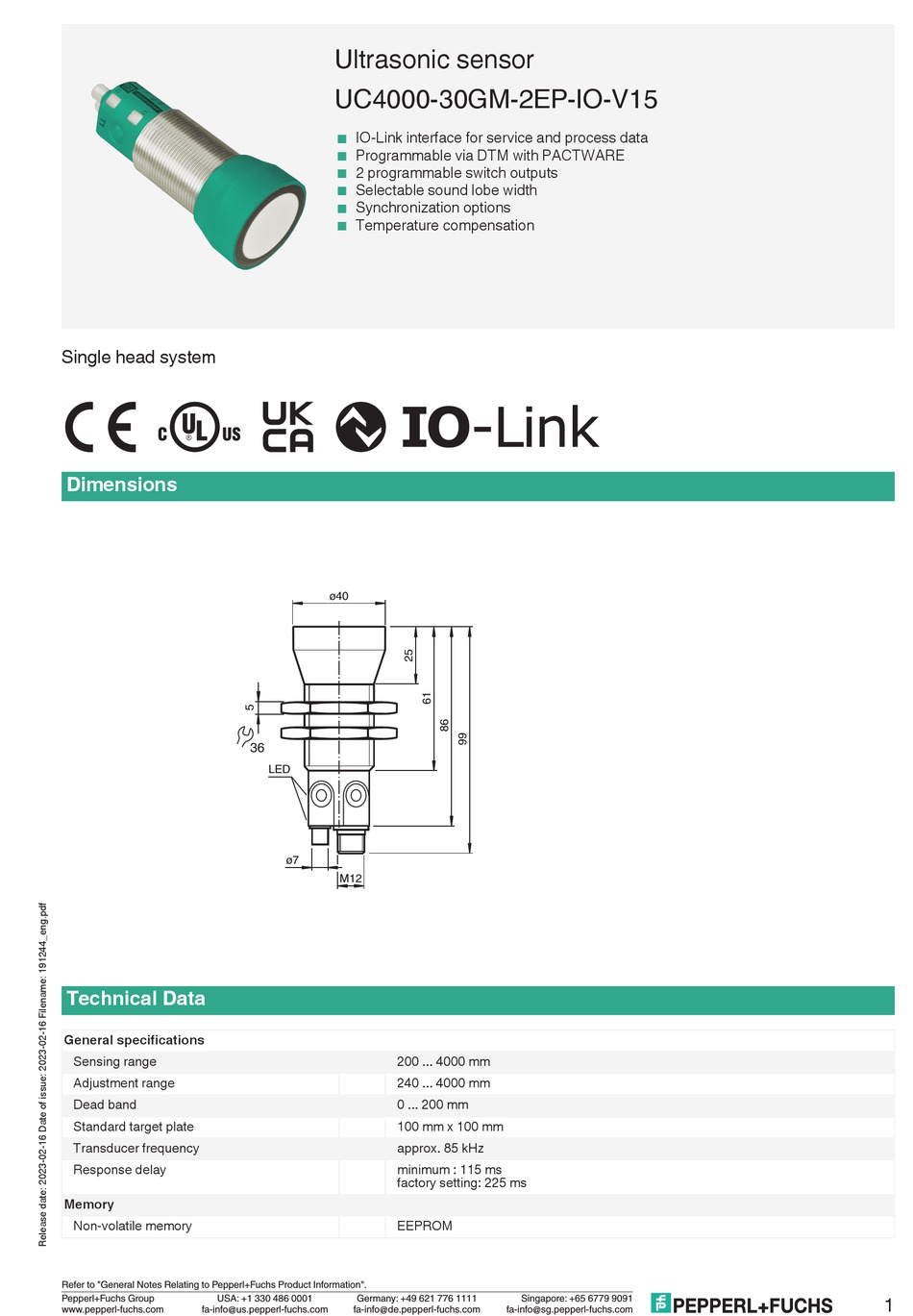

Ultrasonic sensor
UC4000-30GM-2EP-IO-V15
<
IO-Link interface for service and process data
<
Programmable via DTM with PACTWARE
<
2 programmable switch outputs
<
Selectable sound lobe width
<
Synchronization options
<
Temperature compensation
ø40
36
LED
ø7
M12
200 ... 4000 mm
240 ... 4000 mm
0 ... 200 mm
100 mm x 100 mm
approx. 85 kHz
minimum : 115 ms
factory setting: 225 ms
EEPROM
Germany: +49 621 776 1111
fa-info@de.pepperl-fuchs.com
Singapore: +65 6779 9091
fa-info@sg.pepperl-fuchs.com
1
Advertisement
Table of Contents
Related Manuals for Pepperl+Fuchs UC4000-30GM-2EP-IO-V15
Summary of Contents for Pepperl+Fuchs UC4000-30GM-2EP-IO-V15
- Page 1 Response delay minimum : 115 ms factory setting: 225 ms Memory Non-volatile memory EEPROM Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com...
-
Page 2: Technical Data
-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection type Connector plug M12 x 1 , 5-pin Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com... -
Page 3: Connection Assignment
Connection Assignment Wire colors in accordance with EN 60947-5-2 (brown) (white) (blue) (black) (gray) Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com fa-info@de.pepperl-fuchs.com... -
Page 4: Characteristic Curve
Universal mounting bracket for cylindrical sensors with a diameter of 5 ... 30 mm V15-W-2M-PVC Female cordset single-ended M12 angled A-coded, 5-pin, PVC cable grey UVW90-M30 Ultrasonic -deflector Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com... - Page 5 PROFINET IO IO-Link master with 8 inputs/outputs, DIN rail, screw terminal IO-Link-Master02-USB IO-Link master, supply via USB port or separate power supply, LED indicators, M12 plug for sensor connection Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group USA: +1 330 486 0001 Germany: +49 621 776 1111 Singapore: +65 6779 9091 www.pepperl-fuchs.com...
-
Page 6: Ultrasonic Sensor
1. Briefly press the push button to navigate through the different beam widths in succession. Use this method to choose the required beam width. 2. Press and hold the push button for 2 seconds to return to normal operation mode. Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group... -
Page 7: Factory Setting
The sensor interface can be used to parameterize the sensors so that one functions as a master and the others function as slaves. (See interface description) In this case, the sensors in master/slave mode work simultaneously, i.e. in synchronization where the master sensor Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group... - Page 8 Driver current according to L+ > n * high level signal/input impedance (n = number of sensors to be synchronized) Driver current according to L- > n * output current (n = number of sensors to be synchronized). Refer to "General Notes Relating to Pepperl+Fuchs Product Information". Pepperl+Fuchs Group...
