Pepperl+Fuchs UC6000-30GM-2EP-IO-V15 Quick Start Manual

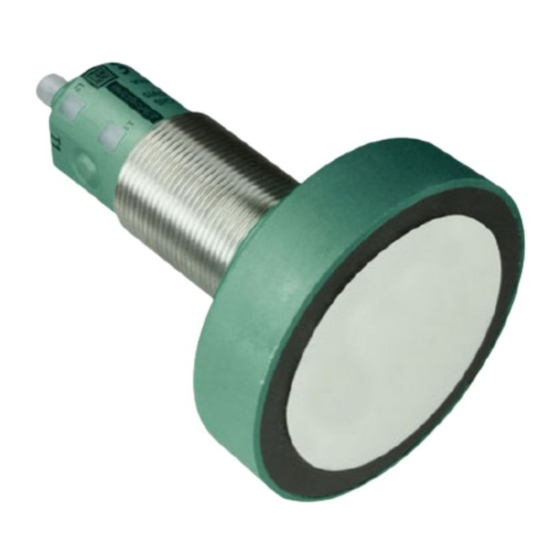

Ultrasonic sensor
Model Number
UC6000-30GM-2EP-IO-V15
Single head system
Features
• IO-link interface for service and
process data
• Programmable via DTM with
PACTWARE
• 2 programmable switch outputs
• Selectable sound lobe width
• Synchronization options
• Temperature compensation
Diagrams
Characteristic response curve
Distance Y [mm]
1500
1000
500
flat surface 100 mm x 100 mm
0
-500
round bar, Ø 25 mm
-1000
-1500
0 1000 2000 3000 4000 5000
Y
wide sound lobe
X
narrow sound lobe
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
Pepperl+Fuchs Group USA: +1 330 486 0001
www.pepperl-fuchs.com fa-info@us.pepperl-fuchs.com
Technical data
General specifications
Sensing range
Adjustment range
Dead band
Standard target plate
Transducer frequency
Response delay
Memory
Non-volatile memory
Write cycles
Indicators/operating means
LED green
LED yellow 1
LED yellow 2
LED red
Electrical specifications
Operating voltage U
No-load supply current I
Power consumption P
Time delay before availability t
Interface
Interface type
Protocol
Transfer rate
Cycle time
Mode
Process data witdh
SIO mode support
Input/Output
Input/output type
0 Level
1 Level
Input impedance
Output rated operating current
Pulse length
Pulse interval
Synchronization frequency
Common mode operation
Multiplex operation
Output
Output type
Rated operating current I
Voltage drop U
Repeat accuracy
Switching frequency f
Range hysteresis H
Temperature influence
Ambient conditions
Ambient temperature
Storage temperature
Mechanical specifications
Connection type
6000 7000 8000 9000
Degree of protection
Distance X [mm]
Material
Housing
Transducer
Mass
Factory settings
Output 1
Output 2
Beam width
Compliance with standards and
directives
Standard conformity
Germany: +49 621 776 4411
fa-info@de.pepperl-fuchs.com
350 ... 6000 mm
400 ... 6000 mm
0 ... 350 mm
100 mm x 100 mm
approx. 65 kHz
minimum : 140 ms
Ex works settings: 280 ms
EEPROM
100000
solid: Power on
flashing: Standby mode or IO link communication
solid: Object in evaluation range
flashing: Learning function, object detected
solid: Object in evaluation range
flashing: Learning function, object detected
solid red: Error
red, flashing: program function, object not detected
10 ... 30 V DC , ripple 10 %
B
≤ 60 mA
0
≤ 1 W
0
≤ 200 ms
v
IO-Link
IO-Link V1.0
Acyclical: typical 44 Bit/s
min. 72 ms
COM 2 (38.4 kBaud)
16 bit
yes
1 synchronization connection, bidirectional
0 ... 1 V
4 V ... U
> 12 kΩ
< 12 mA
0.5 ... 300 ms (level 1)
≥ 74 ms (level 0)
≤ 13 Hz
≤ 14 Hz / n , n = number of sensors , n ≤ 10
(factory setting: n = 5 )
2 push-pull (4 in 1) outputs, short-circuit protected, reverse
polarity protected
200 mA , short-circuit/overload protected
e
≤ 2.5 V
d
≤ 0.1 % of full-scale value
≤ 1.5 Hz
1 % of the adjusted operating range (default settings),
programmable
≤ 1.5 % from full-scale value (with temperature
compensation)
≤ 0.2 %/K (without temperature compensation)
-25 ... 70 °C (-13 ... 158 °F)
-40 ... 85 °C (-40 ... 185 °F)
Connector M12 x 1 , 5-pin
IP67
Stainless steel 1.4305 / AISI 303
TPU
Polyamides
epoxy resin/hollow glass sphere mixture; polyurethane foam
165 g
near switch point: 400 mm
far switch point: 6000 mm
output function: Window mode
output behavior: NO contact
near switch point: 500 mm
far switch point: 3000 mm
output function: Window mode
output behavior: NO contact
wide
Singapore: +65 6779 9091
fa-info@sg.pepperl-fuchs.com
UC6000-30GM-2EP-IO-V15
SS
B
1
