Assembly

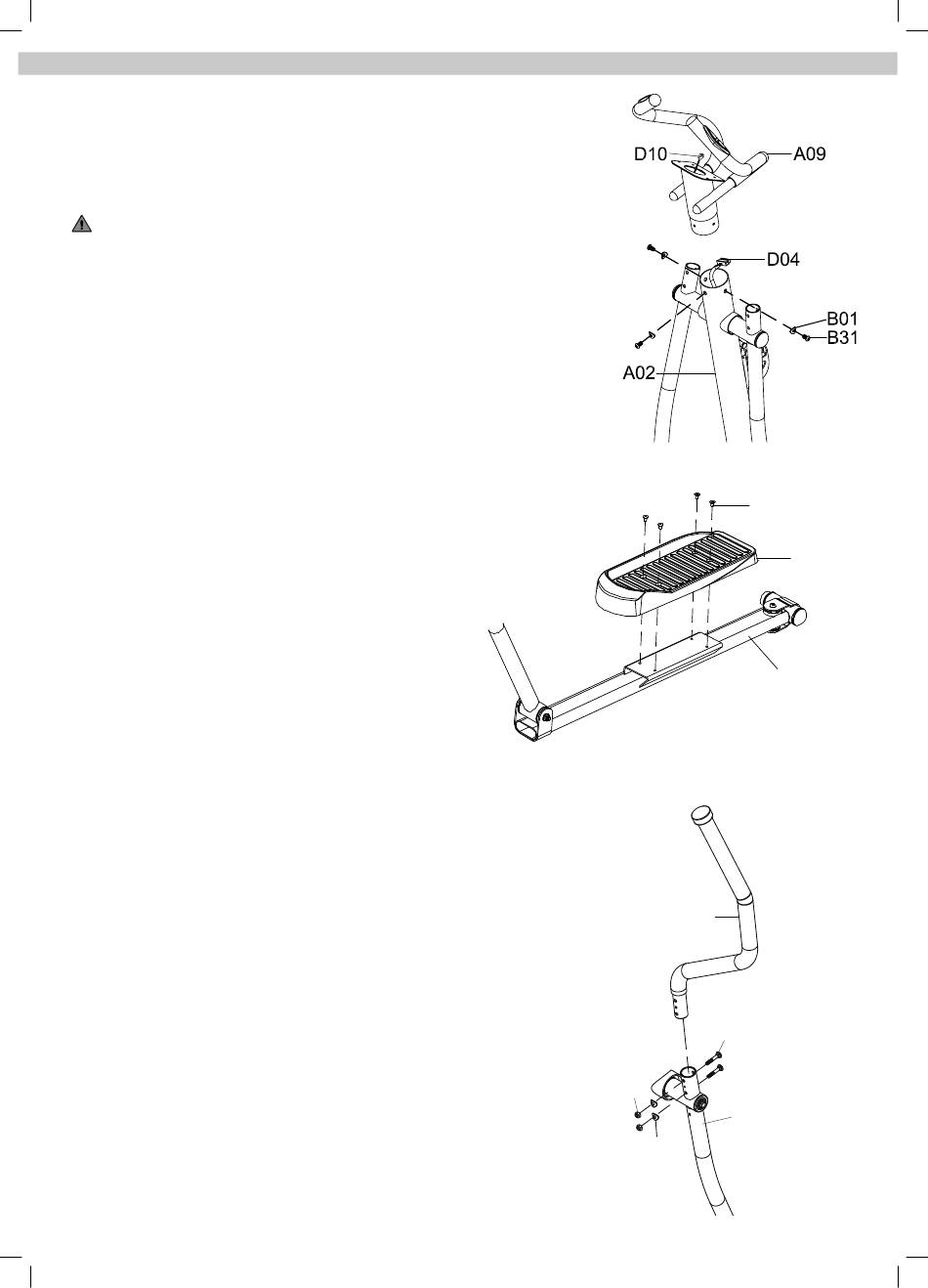

Step 5:
Loosen and remove the three hexagon socket screws M8x20 (B31) and three curved
washers M8 (B01) from the handlebar shaft (A02).
Lead the cockpit cable (D04) protruding from the top of the handlebar shaft (A02), and
end of the of the hand pulse measurement cable (D10) up through the handlebar (A09).
Insert the handlebar (A09) into the upper opening of the handlebar shaft (A02).
CAUTION: Make sure that you do not pinch or damage the cables.
Attach the handlebar (A09) using the same three hexagon socket screws M8x20 (B31)
and three curved washers M8 (B01) just removed.
Step 6 B05
Attach the pedal (C12-left and C03-right) with four hexagon socket screws M6x12 (B05)
to the left and right pedal tubes (A05-left / A06 - right).
C12
A05
Step 7:
Insert the left pendulum handle (A12) into the left pendulum tube (A03) and the right
pendulum handle (A13) into the right pendulum tube (A04).
The pendulum handles are marked with stickers for easy identification.
A12
Secure the pendulum handles with two M8x50 carriage bolts (B04), two curved washers
M8 (B30) and two locknuts M8 (B19).
B04
B19
A03
B30
